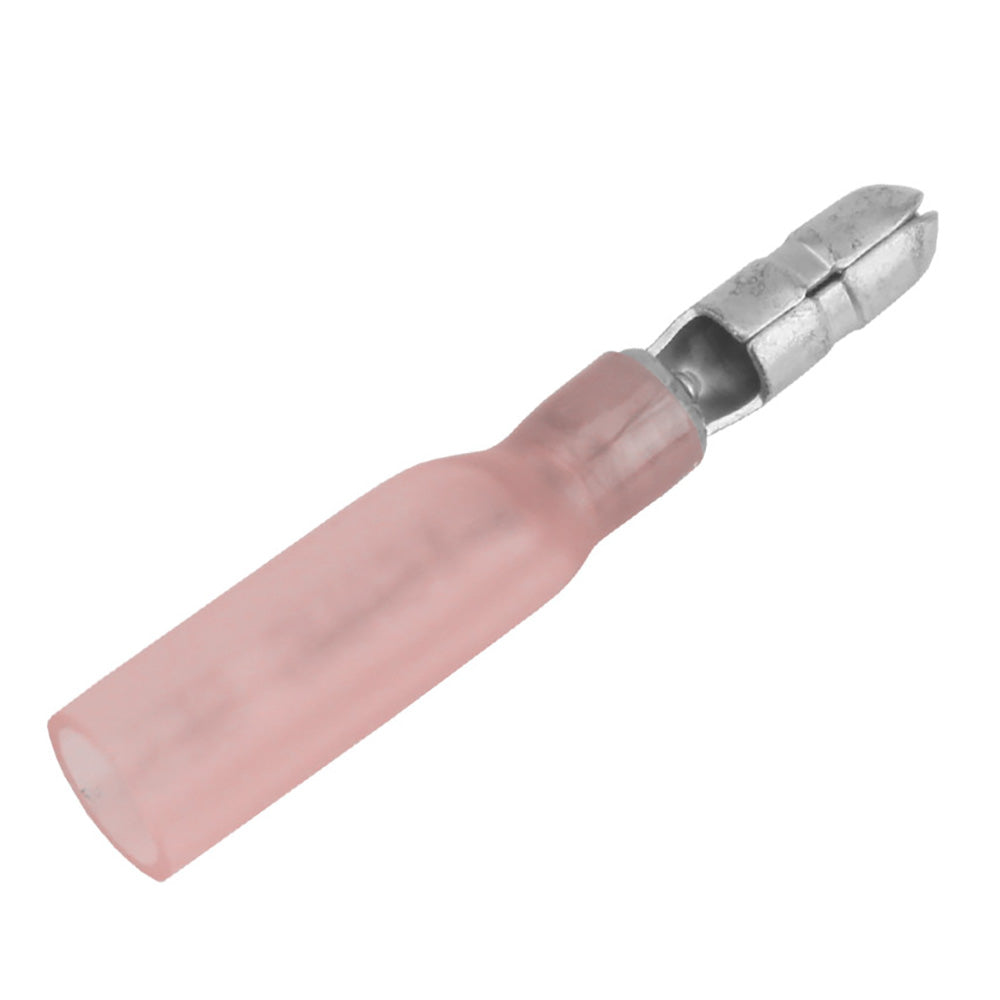

Pacer 22-18 AWG Heat Shrink Male Bullet Terminal - 100 Pack

Enhance the reliability and safety of your marine electrical systems with our 22-18 AWG Heat Shrink Male Bullet Terminals. Specifically engineered for the demanding conditions of marine environments, these terminals provide secure and protected connections essential for boating applications.

Product Features

• Male bullet terminal ensures a secure and stable connection
• Protects against water, condensation, salt spray, and corrosion
• Enhanced vibration protection for rugged marine environments
• Easy to disconnect and reconnect for flexible maintenance
• Delivers solid and reliable electrical connections
• Compliant with multiple marine industry standards

Benefits

• Environmentally sealed to withstand harsh marine conditions
• Constructed for maximum durability and longevity
• Tinned copper design for superior conductivity and corrosion resistance
• Long-lasting performance even under extreme temperatures
• Simple installation process saves time and effort

Technical Specifications

Characteristic	Details
Insulation Color	Red
Wire Gauge	22-18 AWG
Package Size	100 Terminals
Bullet Terminal Size	0.156 inches
Shrink Ratio	Approximately 3:1 at 135°C
Operating Temperature	-55°C to 125°C
Volume Resistivity	1015 Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Additional Specifications

Specification	Detail
Gauge	22-18 AWG
Heat Shrink	Yes
Package Quantity	100
Type	Disconnects
Box Dimensions	1" H x 3" W x 7" L
Weight	0.3 lbs
UPC	840248207294
