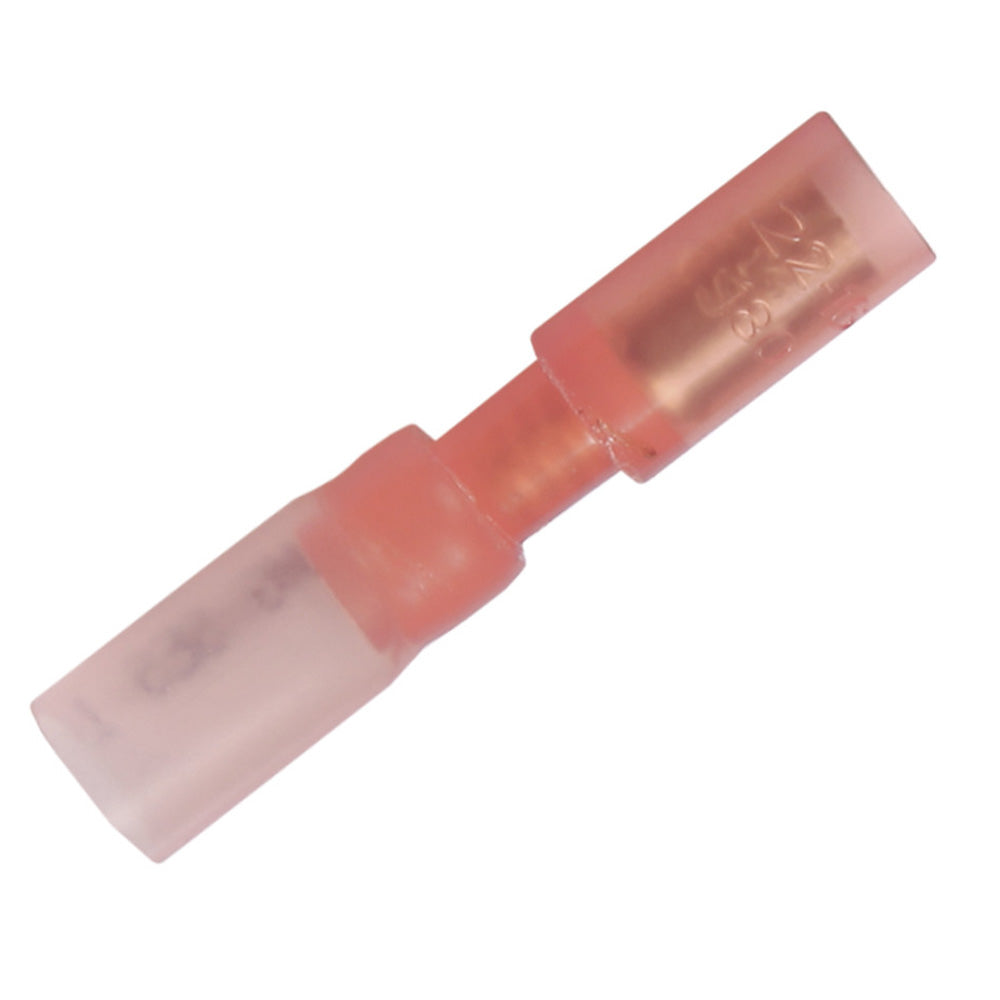

Pacer 22-18 AWG Heat Shrink Female Bullet Terminal - 25 Pack

Ensure reliable and durable electrical connections on your vessel with our 22-18 AWG Heat Shrink Female Bullet Terminals. Specifically designed for marine and boating applications, these terminals provide secure, weather-resistant connections that withstand the harsh maritime environment.

Why Choose Heat Shrink Female Bullet Terminals for Your Marine Needs

Our heat shrink female bullet terminals are engineered to deliver exceptional performance in marine settings. Whether you're outfitting a yacht, fishing boat, or any other watercraft, these terminals offer the reliability and protection necessary to maintain your electrical system's integrity.

Key Features

• High-quality female bullet terminals for secure connections
• Heat shrink tubing protects against water, condensation, salt spray, and corrosion
• Enhanced vibration resistance suitable for the dynamic marine environment
• Easy to disconnect and reconnect for maintenance and upgrades
• Ensures solid and consistent electrical connections
• Compliance with multiple industry standards for marine safety

Benefits for Marine Applications

• Environmentally Sealed: Protects electrical connections from exposure to seawater and moisture
• Built for Durability: Withstands the demanding conditions of marine environments, including UV exposure and temperature fluctuations
• Tinned Copper: Offers superior resistance to corrosion, ensuring long-lasting performance
• Long Lasting: Maintains reliable connections over time, reducing the need for frequent replacements
• Easy to Install: Simplifies the installation process, saving time and effort during boat outfitting

Product Specifications

Insulation Color	Red
Wire AWG	22-18 AWG
Package Size	25 Pack
Bullet Terminal Size (inches)	0.156"
Shrink Ratio	Approximately 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	1015 Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Additional Specifications

• Gauge: 22-18 AWG
• Heat Shrink: Yes
• Package Quantity: 25
• Type: Disconnects
• Box Dimensions: 1"H x 3"W x 4"L
• Weight: 0.1 lbs
• UPC: 840248207270

Download the Quick Guide (PDF)
