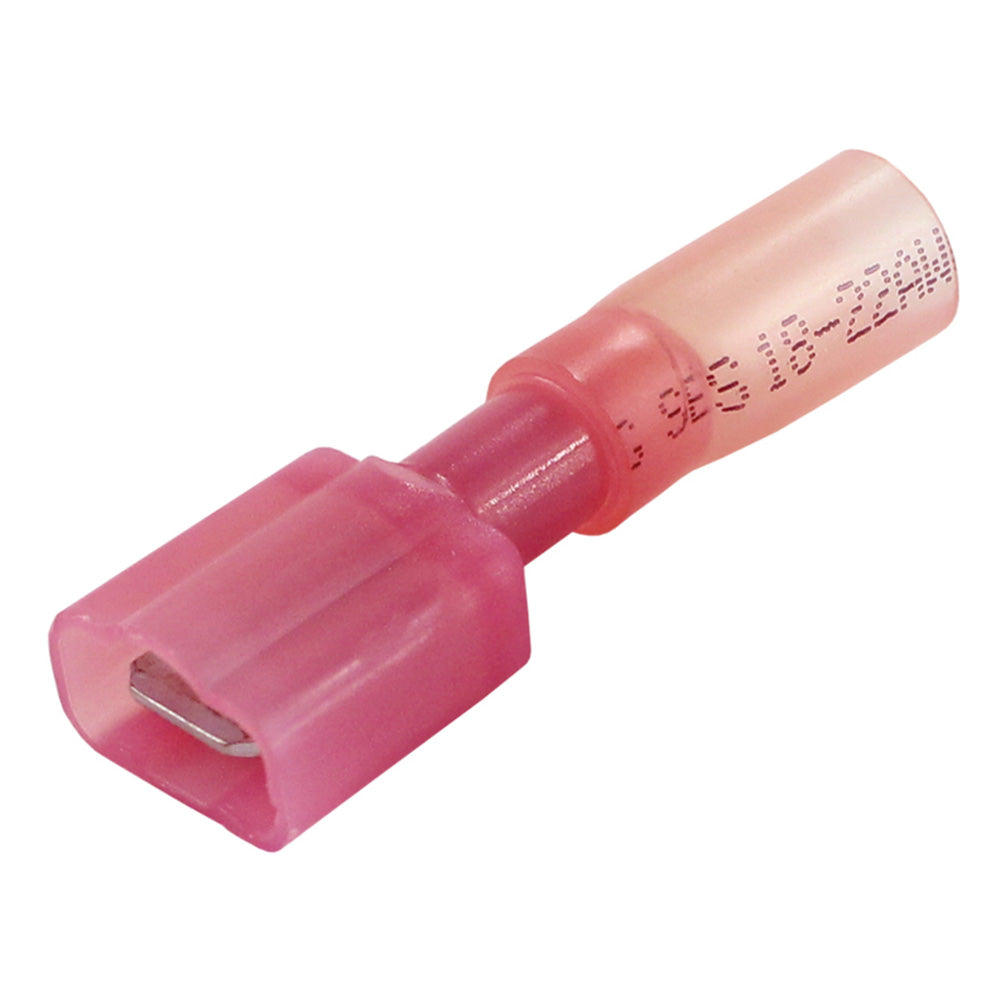

Pacer 22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 Pack

The 22-18 AWG Fully-Insulated Male Disconnect Terminal in vibrant red is designed to deliver secure and reliable electrical connections tailored for marine and boating applications. This 25-pack ensures you have the necessary terminals to maintain and manage your vessel’s wiring system with ease and confidence.

Superior Protection for Marine Environments

Maintaining solid electrical connections is critical in the harsh conditions encountered on the water. Pacer’s heat-shrink fully insulated disconnect terminals provide exceptional protection against moisture, salt spray, and corrosion, making them ideal for marine and boating use. The built-in heat-activated adhesive liner ensures a rugged, environmentally sealed connection that withstands the demanding marine environment.

Easy Maintenance and Flexibility

The ability to disconnect and reconnect wires simplifies maintenance and repairs on your boat. Whether you're removing equipment or performing field service, these disconnect terminals allow for quick and hassle-free adjustments. Their robust construction also offers protection against physical abuse and abrasion, ensuring long-lasting performance.

Color-Coded for Simple Identification

Efficiently manage your wiring with our color-coded insulation system:

Insulation Color	Wire Gauge
Red	22-18 AWG
Blue	16-14 AWG
Yellow	12-10 AWG

Choosing the correct terminal is crucial for optimal performance. If you have any questions, our Pacer experts are available to assist you in selecting the right disconnect terminal for your specific marine needs.

Key Features

• Protects terminations from water, condensation, salt spray, and corrosion
• Enhanced vibration protection for rugged marine environments
• Provides effective strain relief

Technical Specifications

Specification	Details
Shrink Ratio	Approx. 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	1015 Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V
AWG Range	22-18 AWG
Disc./Bullet Size	0.250 in.
Insulation Color	Red
Package Size	25 Pack
Box Dimensions	1" H x 3" W x 5" L
Weight	0.1 lbs
UPC	840248207652

Compliance and Certifications

• UL Certified
• CSA Certified
• RoHS Compliant

Additional Resources

Brochure: Download PDF

Watch Our Product in Action
