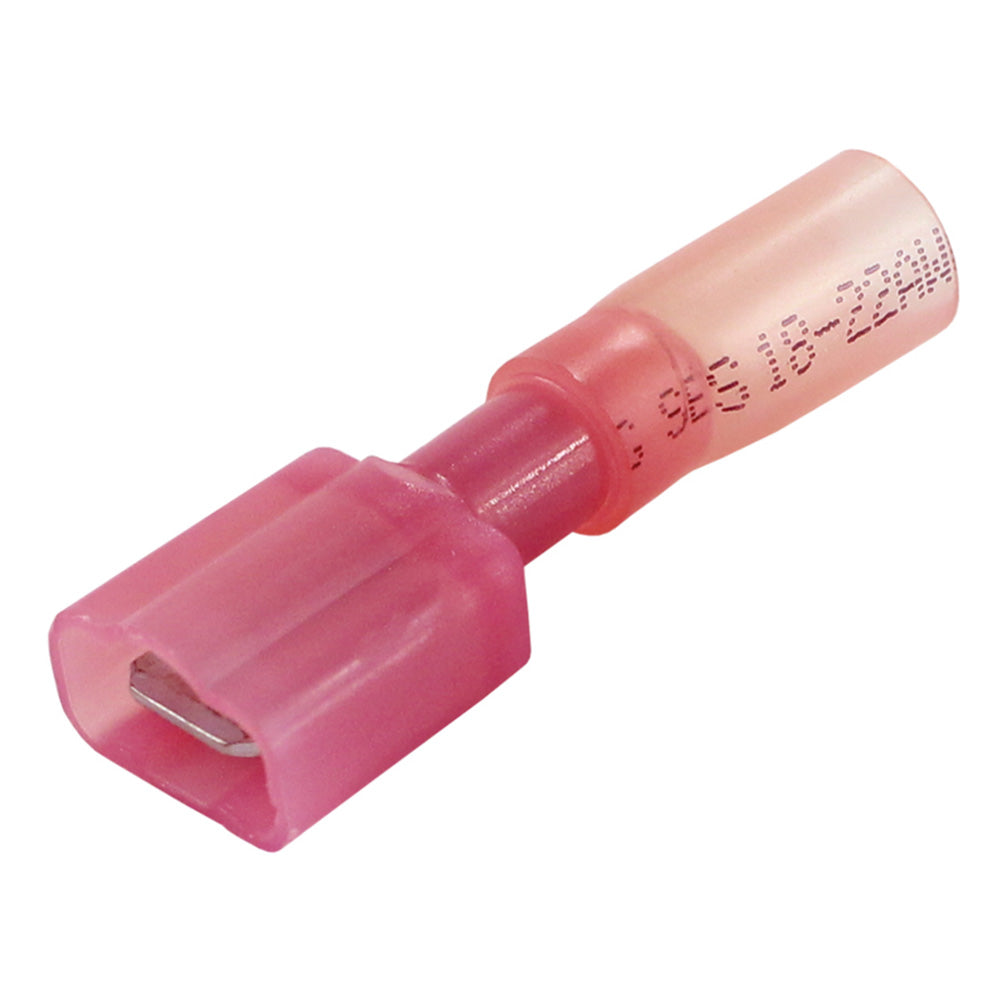

Pacer 22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 100 Pack

Pacer's 22-18 AWG Fully-Insulated Male Disconnect Terminals in vibrant red are essential for creating reliable and durable electrical connections in marine and boating applications. Designed to withstand harsh marine environments, these heat-shrink terminals ensure secure connections while providing the flexibility to disconnect and reconnect as needed, simplifying maintenance and enhancing the longevity of your electrical systems.

Superior Protection for Marine Environments

In the demanding conditions of marine settings, protecting electrical connections from moisture, salt spray, and corrosion is paramount. Pacer's fully-insulated disconnect terminals feature a heat-activated adhesive liner that creates an environmentally sealed connection, safeguarding your wiring from water, oil, gas, and other corrosive elements. This robust protection ensures your electrical systems remain reliable, even in the most challenging environments.

Key Features

• Shielded against water, condensation, salt spray, and corrosion
• Enhanced vibration protection for rugged marine conditions
• Integrated strain relief to prevent wire damage

Technical Specifications

Shrink Ratio	Approx. 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	10¹⁵ Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Product Specifications

AWG Range	22-18 AWG
Disc/Bullet Size	0.250 in.
Insulation Color	Red
Package Size	100 Pack
Box Dimensions	2"H x 3"W x 8"L
Weight	0.4 lbs
UPC	840248207669

Compliance and Certifications

• UL Certified
• CSA Certified
• RoHS Compliant

Color-Coded for Easy Identification

The insulation color of Pacer's disconnect terminals indicates the appropriate wire gauge, ensuring correct installation:

• Red: 22-18 AWG
• Blue: 16-14 AWG
• Yellow: 12-10 AWG

Choosing the right terminal for your specific wire gauge is crucial for maintaining a secure and efficient electrical system. If you need assistance selecting the appropriate terminal, our Pacer experts are here to help.

Easy Maintenance and Reliability

The disconnect feature of these terminals allows for effortless separation of connections, making equipment removal or field service maintenance straightforward and hassle-free. Additionally, the heat-shrink insulation not only protects against environmental factors but also guards against physical abuse and abrasion, ensuring long-lasting performance.

Additional Resources

Download the Brochure (PDF)
