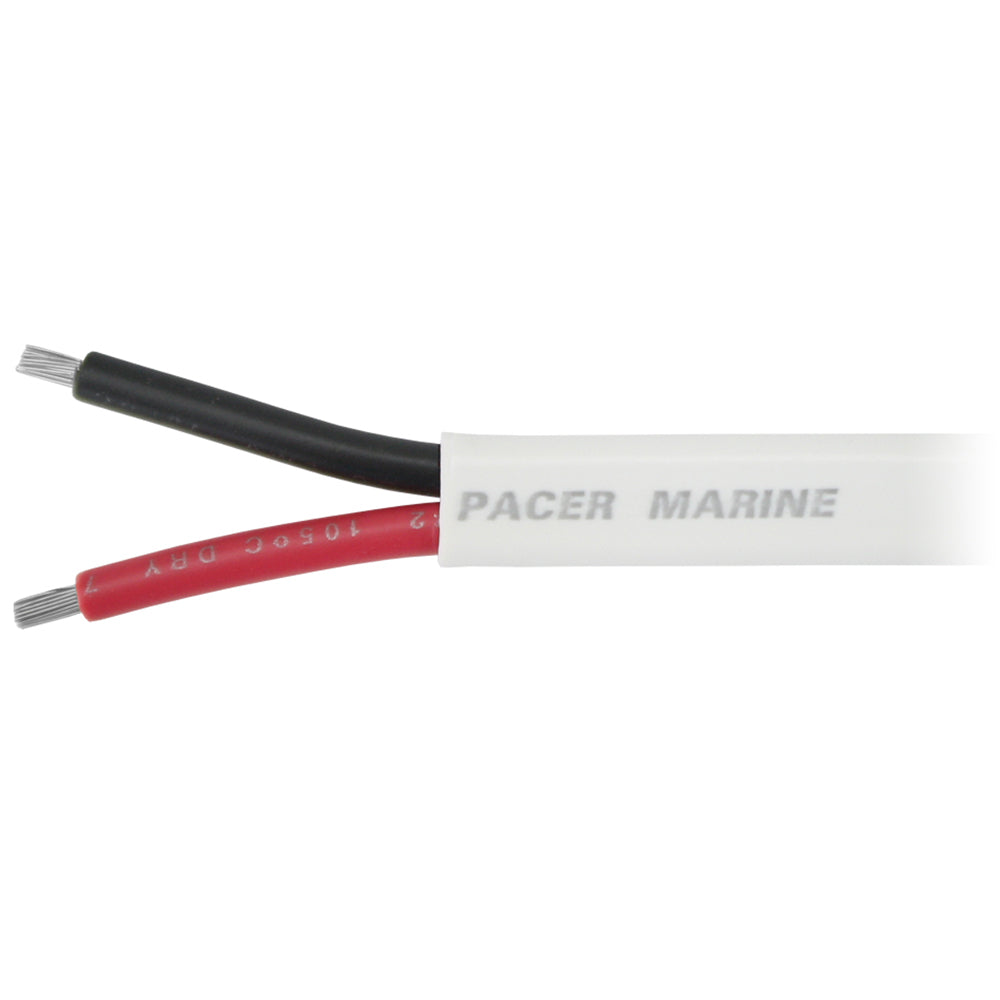

Pacer 18/2 AWG Duplex Cable - Red/Black - 100

Upgrade your marine electrical system with our high-quality 18/2 AWG Duplex Cable in striking Red/Black, available in a generous 100-foot length. Designed specifically for boating and marine applications, this duplex cable ensures reliable performance and durability in both AC and DC circuits.

Superior Construction for Marine Excellence

Our Duplex Boat Cable is meticulously manufactured in-house in the USA, adhering to the highest standards of quality. The cable features finely stranded, Type III tinned copper conductors, which provide exceptional flexibility and resist corrosion, ensuring longevity even in harsh marine environments.

Advanced Protection and Flexibility

The PVC jacket of the 18 AWG Duplex Boat Cable offers remarkable flexibility while effectively preventing moisture ingress. During the extrusion process, all spaces between the wires are filled, eliminating any gaps where moisture or air could accumulate. Additionally, a talcum powder coating is applied to the interior wires, facilitating easy removal of the outer jacket when needed. These features make our duplex cable an ideal choice for marine applications.

Key Features

• Extruded exterior cable insulation with no gaps
• Highly flexible, color-coded wire insulation for easy identification
• Stranded, tinned copper conductors for enhanced flexibility and corrosion resistance
• Annealed finely stranded tinned copper ASTM B172 Class K
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Compliance and Certifications

Our marine wire meets and exceeds the stringent requirements and standards set by industry-leading organizations, ensuring safety and reliability in your marine electrical systems.

• UL Standard - 1426
• U.S.C.G - 33 CFR part 183
• ABYC - E-11.14

Technical Specifications

Attribute	Specification
Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC (-20 °C to 105 °C)
Voltage Rating	600-V
Resistance	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
Number of Conductors	2
Type of Cable	Duplex

Product Specifications

Color	Red/Black
Gauge	18/2 AWG
Length	100'
Box Dimensions	5"H x 7"W x 7"L
Weight	4.15 lbs
UPC	840248200011

*Sold as an Individual

Additional Resources

Download Brochure (PDF)
