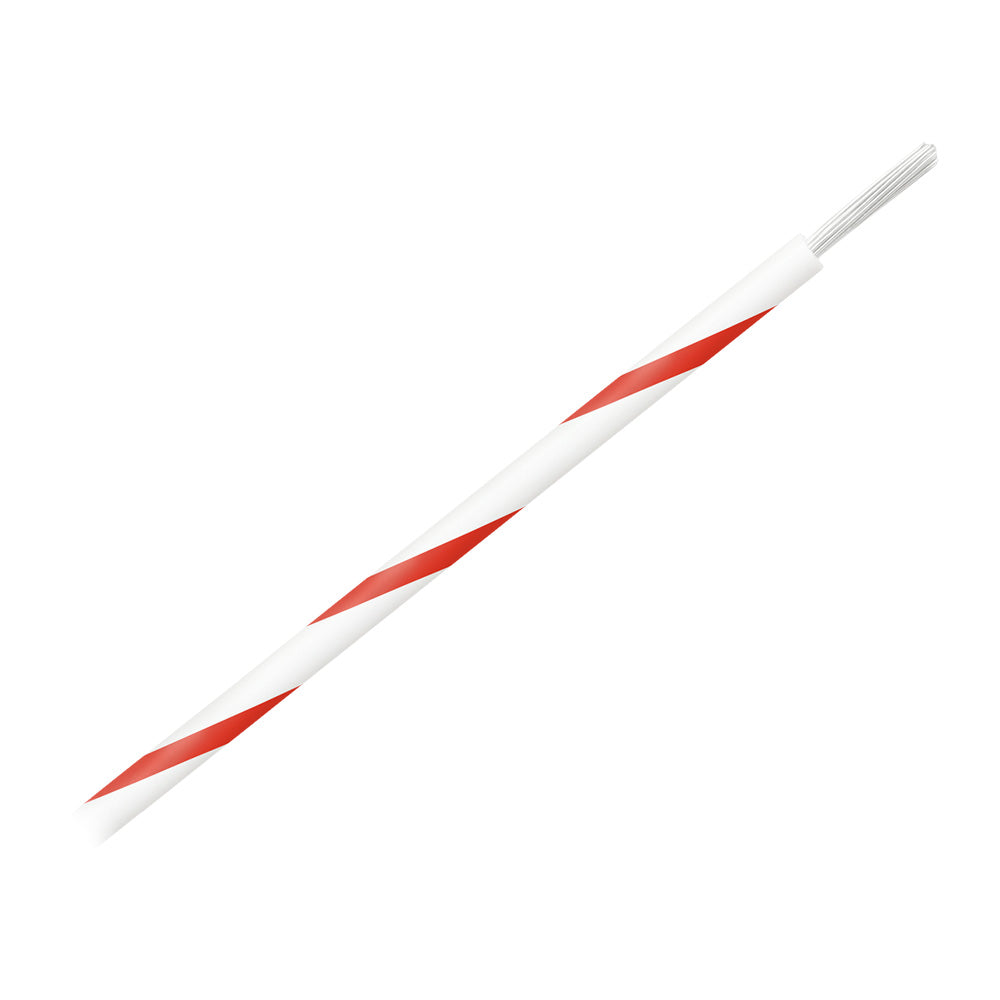

Pacer 16 AWG Gauge Striped Marine Wire 500' Spool - White w/Red Stripe

Enhance your marine electrical system with Pacer's 16 AWG Striped Marine Wire, featuring a sleek white insulation accented by a vibrant red stripe. This high-performance wire is engineered specifically for boating applications, ensuring easy identification and reliable performance in the harshest marine environments.

Why Choose Pacer's 16 AWG Striped Marine Wire?

Managing numerous wires on a boat can be challenging. Pacer's striped marine wire simplifies this process by providing clear color-coding, making wire identification straightforward and efficient. This not only streamlines installation but also aids in maintenance and troubleshooting, ultimately boosting your vessel's operational efficiency.

Features

• Stranded, tinned copper conductors for optimal conductivity and corrosion resistance
• Highly flexible, color-coded PVC insulation for easy identification and handling
• Annealed finely stranded tinned copper, ASTM B172 Class K for superior performance
• Exceptional resistance to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Specifications

Attribute	Details
Color	White with Red Stripe
Gauge	16 AWG
Length	500 feet
Insulation Temperature Rating	-20°C to 105°C (Flexible, Color Coded PVC)
Operating Temperature	105°C Dry, 75°C Wet, 60°C Oil
Voltage Rating	600 V
Box Dimensions	6" H x 7" W x 7" L
Weight	7.5 lbs

Applications

• Point-to-point wiring on boats and yachts
• Internal wiring of electrical panels and marine motors
• Audio and lighting systems in marine environments
• General-purpose marine circuitry

Compliance and Standards

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14
• Coast Guard: 33 CFR Part 183

Extensive Selection for Every Need

With over 100 color and stripe combinations available, Pacer ensures you find the perfect striped marine wire to match your specific requirements. Whether you're upgrading your boat's electrical system or undertaking a new marine project, our extensive range guarantees the ideal solution for your wiring needs.

Product Documentation and Support

For detailed information, download our comprehensive brochure (PDF).

Contact Us

Have questions or need assistance selecting the right marine wire for your project? Contact a Pacer expert today and receive personalized support from our knowledgeable team.
