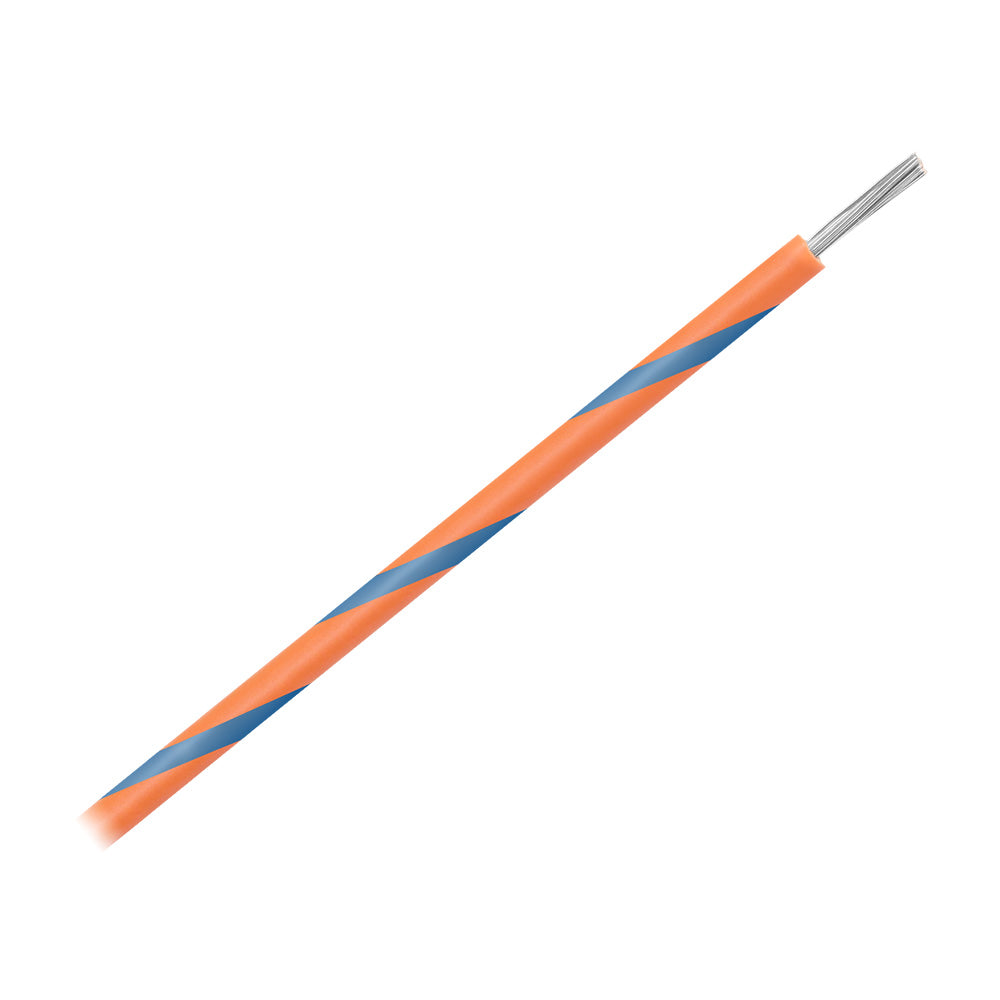

Pacer 16 AWG Gauge Striped Marine Wire 500' Spool - Orange w/Blue Stripe

Enhance your marine electrical projects with Pacer's 16 AWG Striped Marine Wire, available in a vibrant orange with a blue stripe. Designed for durability and ease of identification, this 500-foot spool of high-quality wire ensures reliable performance in demanding marine environments.

Why Choose Striped Marine Wire?

Managing numerous wires onboard can be a challenging task. Striped marine wire simplifies this process by providing clear color-coding, making each wire easily identifiable. This not only streamlines your wiring tasks but also boosts overall job efficiency, reducing the time spent on installation and maintenance.

Premium Quality Construction

Manufactured in Sarasota, FL, USA, Pacer's 16 AWG striped marine wire is crafted from Type III Class K tinned copper, ensuring excellent conductivity and corrosion resistance. The finely stranded copper conductors are annealed for enhanced flexibility, allowing for effortless routing in tight spaces. The PVC insulation jacket is both durable and flexible, providing robust protection against the harsh marine environment.

Key Features

• Stranded, Tinned Copper Conductors: Offers superior flexibility and resistance to corrosion.
• Color-Coded Insulation: Facilitates easy identification and organization of multiple wires.
• ASTM B172 Class K: Meets stringent industry standards for marine applications.
• Environmental Resistance: Protects against acid, alkali, abrasion, flame, gasoline, oil, and moisture.

Technical Specifications

Specification	Details
Color	Orange with Blue Stripe
Gauge	16 AWG
Length	500 feet
Insulation Temperature Range	-20°C to 105°C
Temperature Rating	105°C Dry, 75°C Wet, 60°C Oil
Voltage Rating	600-V
Box Dimensions	6"H x 7"W x 7"L
Weight	7.7 lbs

Applications

• Point-to-Point Wiring: Ideal for connecting various electrical components within your vessel.
• Internal Wiring of Panels and Motors: Ensures reliable performance and safety in critical systems.

Compliance and Standards

Pacer's 16 AWG striped marine wire adheres to stringent industry standards, ensuring safety and reliability in marine applications:

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14
• Coast Guard: 33 CFR Part 183

Extensive Selection

With over 100 different color combinations available, Pacer ensures that you can find the perfect striped marine wire to suit your specific needs. Whether you're working on a new installation or upgrading an existing system, our extensive range guarantees the right choice for your marine electrical projects.

Additional Resources

Download the Brochure (PDF)
