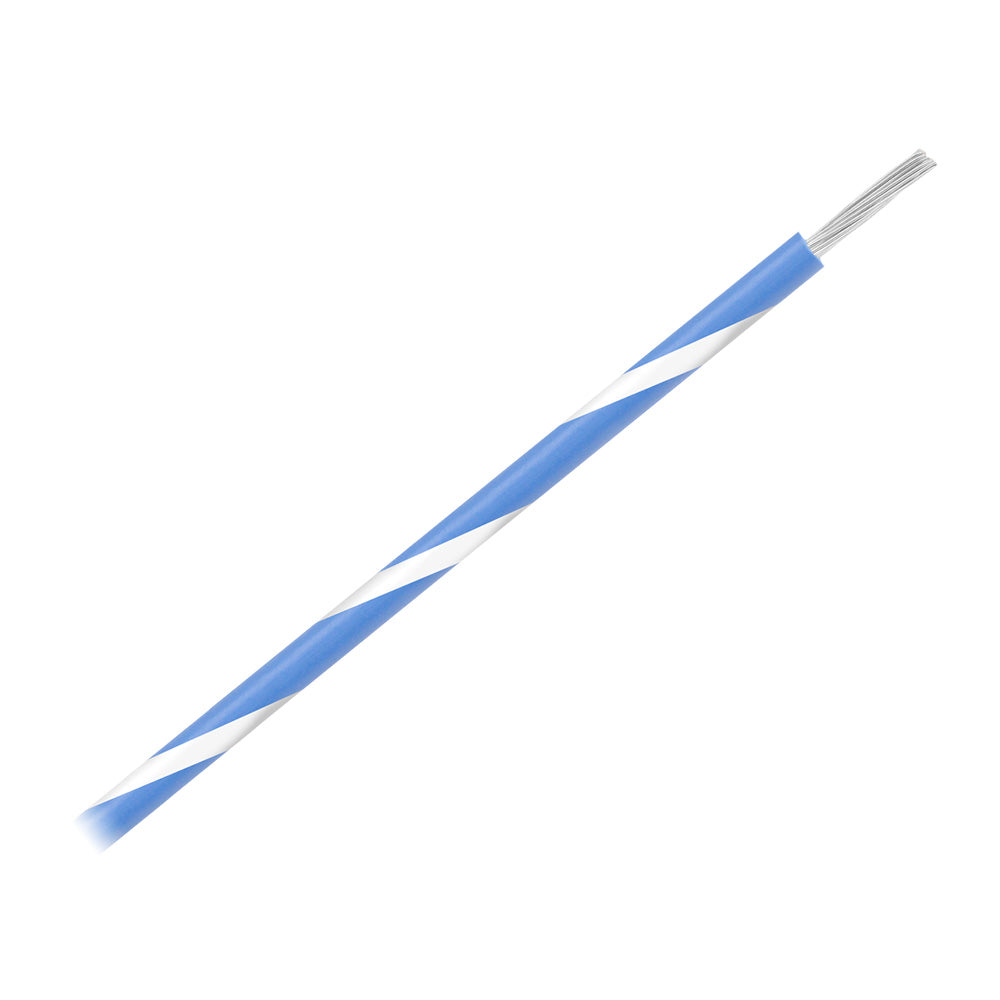

Pacer 16 AWG Gauge Striped Marine Wire 500' Spool - Blue w/White Stripe

Enhance your marine wiring projects with our high-quality 16 AWG Striped Marine Wire. Designed for easy identification and superior performance, this blue wire with a white stripe ensures efficient installations and reliable connections on your vessel.

Features

• Stranded, tinned copper conductors for excellent conductivity and corrosion resistance
• Highly flexible, color-coded PVC insulation for easy wire identification and routing
• Annealed finely stranded tinned copper, ASTM B172 Class K for superior performance
• Durable insulation resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Specifications

Attribute	Details
Color	Blue with White Stripe
Gauge	16 AWG
Length	500 ft.
Insulation Temperature Rating	-20°C to 105°C
Operating Temperature	105°C Dry, 75°C Wet, 60°C Oil
Voltage Rating	600-V
Box Dimensions	6"H x 7"W x 7"L
Weight	7 lbs

Applications

• Point-to-point wiring on boats and marine vessels
• Internal wiring of marine panels and motors
• Electrical systems requiring durable and flexible wiring solutions

Compliance & Certifications

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14
• Coast Guard: 33 CFR Part 183

Why Choose Pacer Striped Marine Wire?

With over 100 color and stripe combinations available, Pacer ensures that you find the perfect wire for your specific marine applications. Manufactured in Sarasota, FL, USA from Type III Class K tinned copper, our striped marine wire guarantees both quality and performance.

Have questions or need assistance in selecting the right wire for your project? Contact a Pacer expert today.

Download Brochure (PDF)
