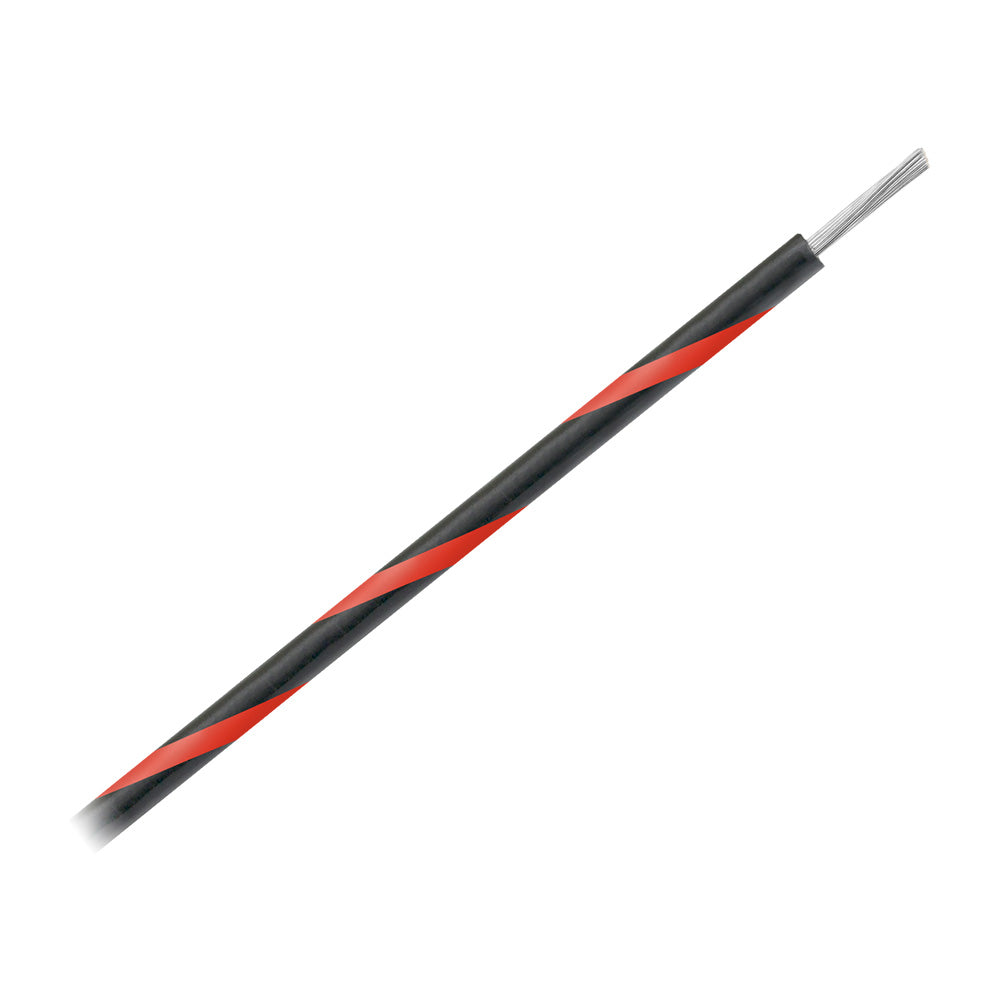

Pacer 16 AWG Gauge Striped Marine Wire 500' Spool - Black w/Red Stripe

Enhance your marine electrical projects with Pacer's 16 AWG Gauge Striped Marine Wire, expertly crafted for durability and easy identification. This 500-foot spool features a sleek black wire adorned with a red stripe, making it ideal for managing multiple connections on boats and other marine vessels. Manufactured in Sarasota, FL, USA, our striped marine wire combines high-quality tinned copper conductors with robust PVC insulation, ensuring reliable performance in harsh marine environments.

Why Choose Pacer’s 16 AWG Striped Marine Wire?

Managing numerous wires on a marine vessel can be challenging. Pacer’s striped marine wire simplifies this process by providing clear color-coded identification, enhancing both safety and efficiency. Whether you're wiring panels, motors, or other marine equipment, our wire offers the flexibility and resilience needed for optimal performance.

Key Features

• Stranded, tinned copper conductors for excellent conductivity and corrosion resistance
• Highly flexible, color-coded PVC insulation for easy identification and installation
• Annealed, finely stranded tinned copper compliant with ASTM B172 Class K standards
• Resistant to a variety of harsh conditions including acid, alkali, abrasion, flame, gasoline, oil, and moisture

Technical Specifications

Specification	Details
Color	Black with Red Stripe
Gauge	16 AWG
Length	500 ft.
Insulation Temperature Range	-20°C to 105°C
Temperature Rating	105°C Dry, 75°C Wet, 60°C Oil
Voltage Rating	600 V
Box Dimensions	6"H x 7"W x 7"L
Weight	7.5 lbs

Applications

Pacer's striped marine wire is versatile and suitable for a wide range of marine applications, including:

• Point-to-point wiring
• Internal wiring of panels and motors
• Boat electrical systems
• Marine lighting installations
• Navigation and communication equipment

Compliance and Standards

Our marine wire meets and exceeds industry standards, ensuring safety and reliability in all marine environments:

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14
• Coast Guard: 33 CFR Part 183

Extensive Color Options

Selecting the right striped wire is crucial for your marine projects. Pacer offers over 100 color combinations in our 16 AWG striped marine wire, ensuring you find the perfect match for your specific needs. This extensive selection allows for precise color-coding, which simplifies installation and future maintenance.

Durability You Can Trust

Designed to withstand the harshest marine conditions, our striped marine wire features a durable PVC jacket that resists abrasion, moisture, and chemical exposure. The flexible construction ensures easy handling and installation, even in tight or complex spaces onboard your vessel.

Available Resources

For more detailed information, download our comprehensive brochure:

Download Brochure (PDF)

Learn More

Need assistance or have questions about selecting the right marine wire for your project? Contact a Pacer expert today and let us help you achieve the best results for your marine electrical needs.
