Pacer Group  |  SKU: LOS-96477

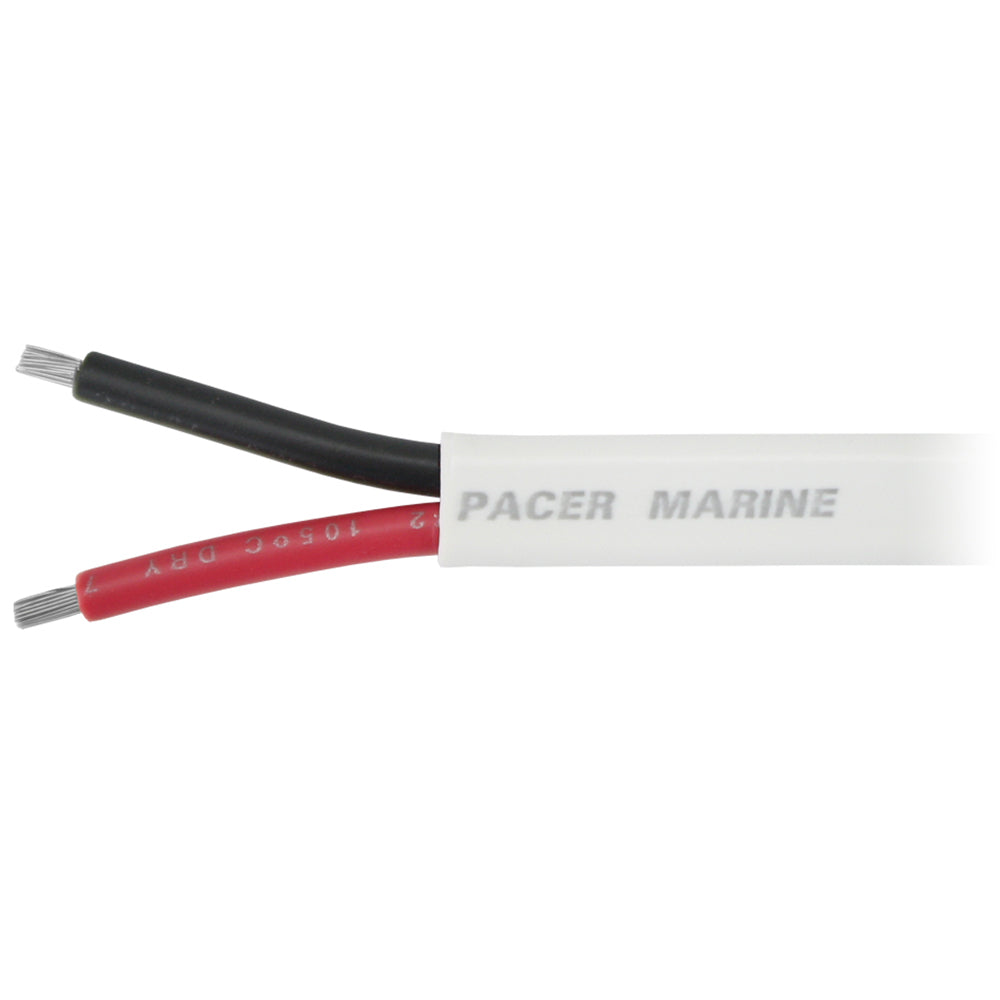

Pacer 16/2 AWG Duplex Cable - Red/Black - Sold By The Foot

$0.41 USD $1.99

Product Description

Enhance your marine electrical systems with our premium 16/2 AWG Duplex Boat Cable, available in striking red and black colors. Designed specifically for low voltage AC and DC applications, this duplex cable ensures reliable performance and durability on the water.

Superior Construction for Marine Excellence

Our 16 AWG Duplex Boat Cable is meticulously manufactured in the USA to guarantee top-notch quality. The cable features finely stranded, Type III tinned copper conductors, which provide exceptional flexibility and resistance to corrosion—essential for the harsh marine environment.

Advanced Protection Against Moisture

The PVC jacket of our duplex boat cable is engineered to be highly flexible while effectively preventing moisture ingress. During the extrusion process, all spaces between the wires are filled, eliminating any gaps where moisture or air could accumulate. Additionally, a talcum powder coating is applied to the interior wires, allowing the outer jacket to be easily removed when necessary. These features make our 16 AWG Duplex Boat Cable an ideal choice for marine applications.

Certified for Safety and Performance

Our marine wire surpasses industry standards, ensuring safe and dependable operation on your vessel. Pacer's marine wire meets and exceeds the requirements set by UL, ABYC, and NMMA, giving you peace of mind in every installation.

Key Features

  • Extruded exterior cable insulation with no gaps
  • Highly flexible, color-coded wire insulation
  • Stranded, tinned copper conductors for enhanced flexibility
  • Annealed finely stranded tinned copper ASTM B172 Class K
  • Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Compliance Standards

  • UL Standard - 1426
  • U.S.C.G - 33 CFR part 183
  • ABYC - E-11.14

Technical Specifications

Conductor Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation Flexible, color-coded PVC (-20 °C to 105 °C)
Voltage Rating 600-V
Resistance Acid, alkali, abrasion, flame, gasoline, oil, and moisture
Number of Conductors 2
Type of Cable Duplex

Specifications:

Color Red/Black
Gauge 16/2 AWG
Length Sold By The Foot
Box Dimensions 1" H x 1" W x 12" L
Weight 0.05 lbs

Additional Resources:

Sold by the Foot
