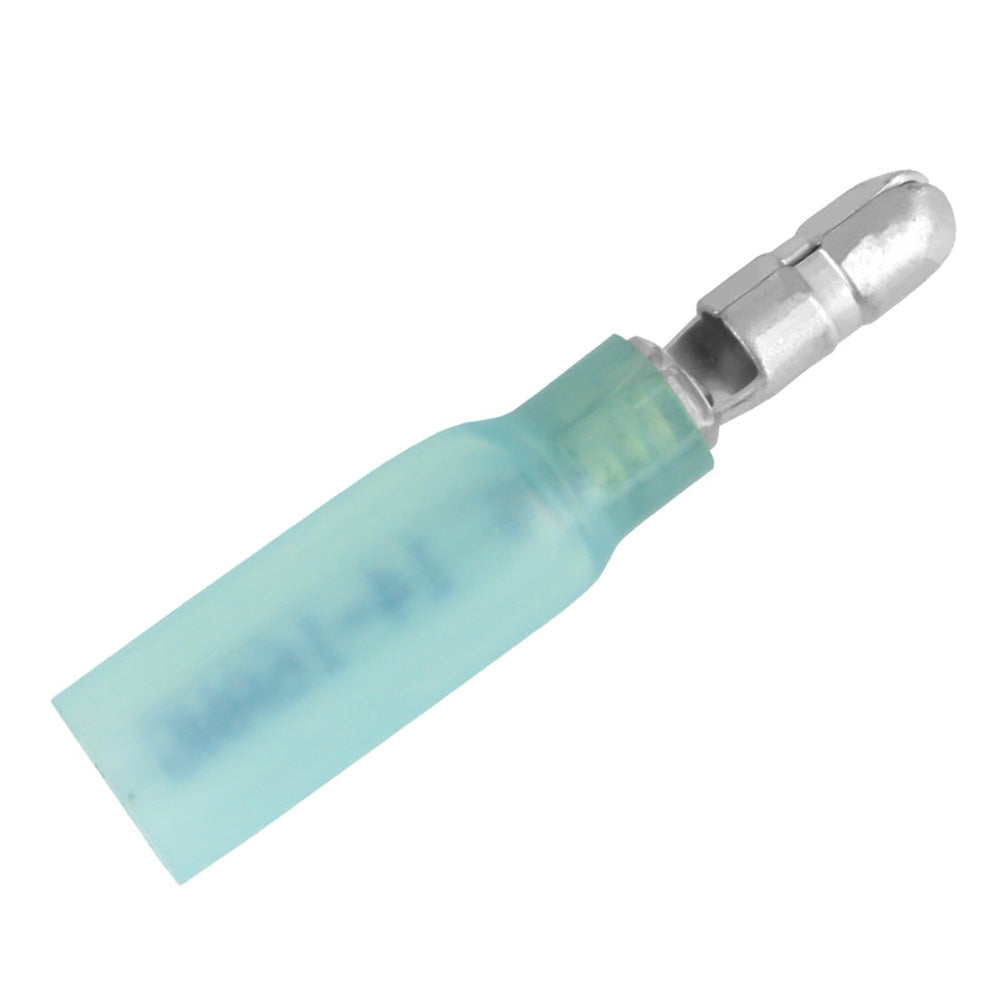

Pacer 16-14 AWG Heat Shrink Male Bullet Terminal - 25 Pack

Ensure reliable and durable electrical connections on your marine vessel with our 16-14 AWG Heat Shrink Male Bullet Terminals. Specifically engineered for the demanding marine environment, these terminals provide secure, waterproof connections that resist corrosion, vibration, and other challenges unique to boating applications. Whether you're upgrading your boat's wiring or performing field maintenance, these bullet terminals offer unmatched performance and longevity.

Key Features

• Male bullet terminal design for secure connections
• Protects against water, condensation, salt spray, and corrosion
• Enhanced vibration protection for rugged marine environments
• Quick disconnect and reconnect capability for easy maintenance
• Ensures solid and reliable electrical connections
• Compliant with multiple industry standards

Benefits for Marine Applications

• Environmentally Sealed: Keeps out moisture and corrosive elements, ensuring longevity of connections.
• Built for Durability: Constructed to withstand the harsh conditions of marine environments.
• Tinned Copper: Provides excellent conductivity and resistance to corrosion.
• Long Lasting: Designed to maintain performance over extended periods, reducing the need for frequent replacements.
• Easy to Install: Simplifies the wiring process, saving time and effort during installation and maintenance.

Technical Specifications

Specification	Details
Insulation Color	Blue
Wire AWG	16-14 AWG
Package Size	25 Pack
Bullet Terminal Size	0.156" (inch)
Shrink Ratio	Approximately 3:1 at 135°C
Operating Temperature	-55°C to 125°C
Volume Resistivity	1015 Ohm-cm³
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Product Specifications

• Gauge: 16-14 AWG
• Heat Shrink: Yes
• Package Quantity: 25
• Type: Disconnects
• Box Dimensions: 1" H x 2" W x 4" L
• Weight: 0.1 lbs
• UPC: 840248207188

Download the Quick Guide (PDF) for detailed installation instructions and best practices.
