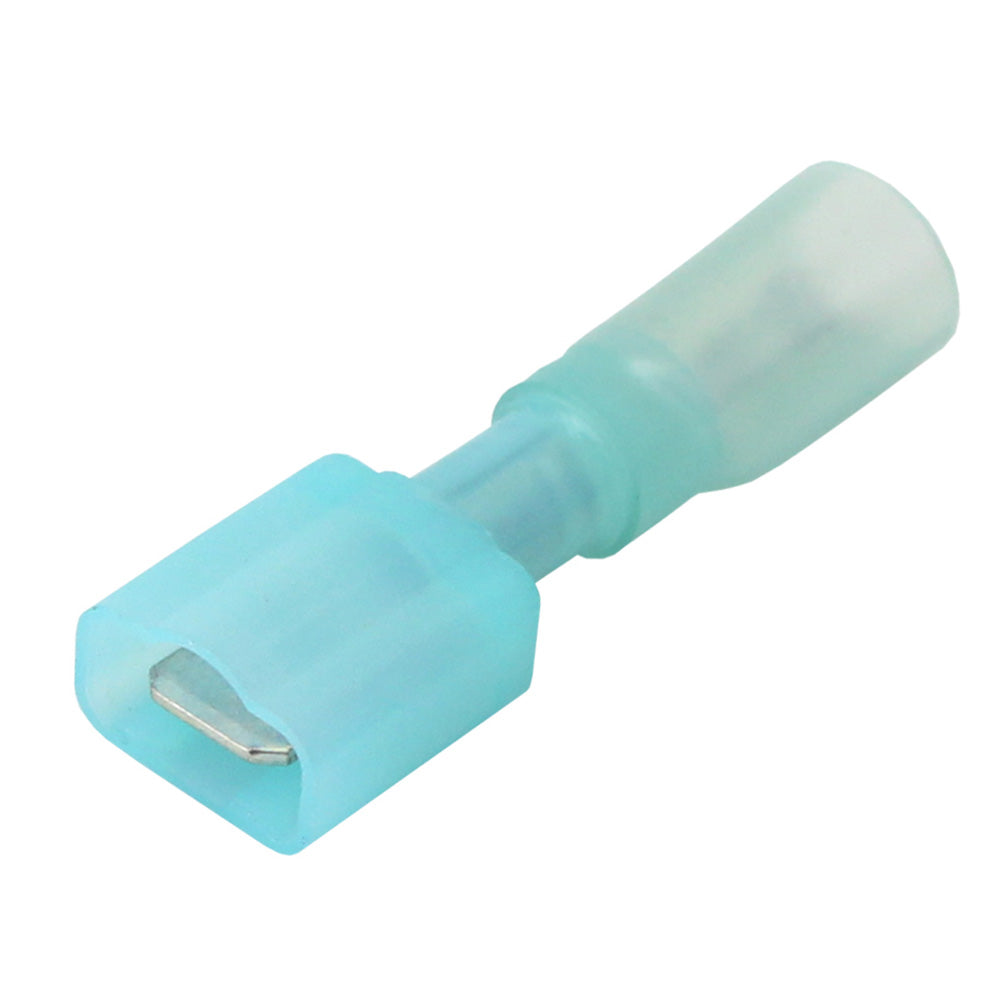

Pacer 16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 25 Pack

Ensure secure and reliable electrical connections on your marine vessel with our 16-14 AWG Fully-Insulated Male Disconnect Terminals in vibrant blue. Engineered to withstand the harsh marine environment, these terminals offer exceptional protection against moisture, corrosion, and physical wear, making maintenance and component replacement straightforward and efficient.

Why Choose Our Disconnect Terminals?

In the demanding conditions of marine and boating applications, maintaining robust electrical connections is crucial. Our heat-shrink fully insulated disconnect terminals provide a dual advantage: they ensure a solid, enduring connection and offer the flexibility to disconnect and reconnect effortlessly. The built-in heat-activated adhesive liner creates a tight, environmentally sealed bond that protects against water, oil, gas, and other corrosive elements, ensuring your electrical system remains reliable even in the most challenging environments.

Features

• Exceptional protection against water, condensation, salt spray, and corrosion
• Enhanced vibration protection suited for rugged marine environments
• Provides effective strain relief to prevent wire damage
• Heat-shrink technology with built-in adhesive liner for secure connections
• Easy disconnection for maintenance and equipment removal

Technical Specifications

Characteristic	Details
Shrink Ratio	Approx. 3:1 at 135 °C
Operating Temperature	-55 °C to 125 °C
Volume Resistivity	1015 Ohm-cm3
Dielectric Strength	900 V/mil
Voltage Rating	600 V

Product Specifications

Specification	Details
AWG Range	16-14 AWG
Disc/Bullet Size	0.250 in.
Insulation Color	Blue
Package Size	25 Pack
Box Dimensions	1"H x 3"W x 5"L
Weight	0.1 lbs
UPC	840248207591

Color Coding for Easy Identification

The insulation color of our disconnect terminals indicates the appropriate wire gauge for optimal performance:

Color	Wire Gauge
Red	22-18 AWG
Blue	16-14 AWG
Yellow	12-10 AWG

Ensuring you select the correct terminal color helps maintain the integrity and safety of your marine electrical system.

Compliance and Certifications

• UL Certified
• CSA Certified
• RoHS Compliant

Our disconnect terminals meet rigorous industry standards, ensuring they are safe and reliable for marine applications.

Additional Resources

For more detailed information, please refer to our Brochure (PDF).
