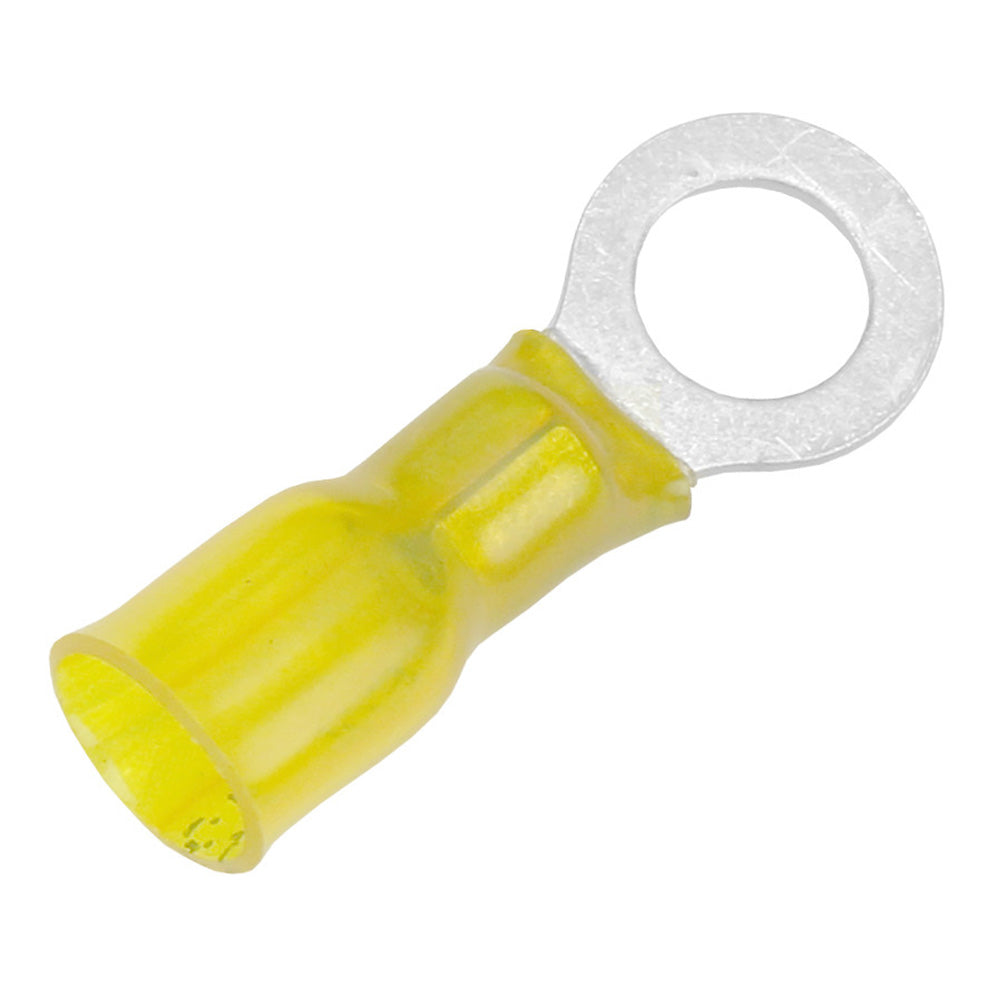

Pacer 12-10 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack

Ensure reliable and secure electrical connections on your boat with our 12-10 AWG Heat Shrink Ring Terminals. Specifically designed for marine environments, these terminals provide durability and resistance against the harsh conditions of marine settings, ensuring your electrical systems remain efficient and safe.

Superior Marine-Grade Features

• Tinned Copper: Offers excellent conductivity and corrosion resistance, perfect for saltwater applications.
• 600 Volts: Handles high-voltage applications, ensuring robust performance for your marine electrical systems.
• Wide Temperature Range: Operates reliably from -55°C to 125°C, suitable for varying marine climates.
• Highly Compliant: Meets stringent marine industry standards for safety and performance.

Benefits & Protections for Boating Applications

• Solid Connections: Ensures a consistent and stable electrical connection, minimizing the risk of failures.
• Extremely Durable: Built to withstand vibrations and movements typical in marine environments.
• Long-Lasting: Resistant to corrosion and wear, extending the lifespan of your electrical installations.
• Tin-Plated: Enhances resistance to rust and corrosion caused by exposure to moisture.
• Easy to Install: Simplifies the installation process, saving you time and effort during setup.

Product Specifications

Attribute	Details
Color	Yellow
Wire AWG	12-10 AWG
Stud Size	5/16" (inches)
Terminal Pad Width	0.54”
Package Quantity	25 Terminals
Heat Shrink	Yes
Type	Ring Terminals
Box Dimensions	1" H x 3" W x 4" L
Weight	0.1 lbs
UPC	840248206167

Easy Installation Guide

Installing our heat shrink ring terminals is straightforward, ensuring a hassle-free setup for your marine electrical projects.

1. Strip the appropriate length of your wire to expose the conductor.
2. Insert the stripped wire into the terminal and crimp securely using a suitable crimping tool.
3. Slide the heat shrink tubing over the connection.
4. Apply heat evenly until the tubing fully shrinks, providing a protective seal.
5. Attach the ring terminal to the stud by sliding the ring over and ensuring a tight fit.

Additional Resources

For detailed instructions, refer to our Quick Guide (PDF).
