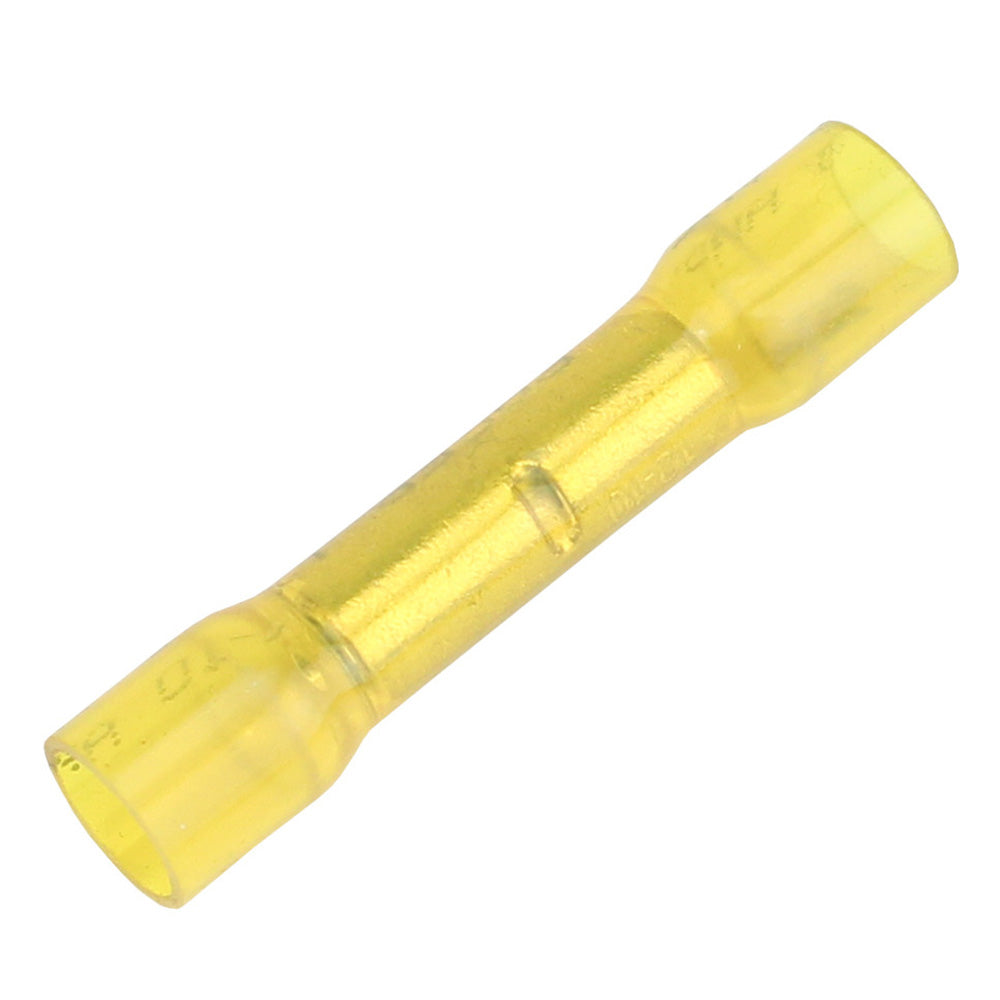

Pacer 12-10 AWG Heat Shrink Butt Connector - 100 Pack

Ensure secure and reliable electrical connections on your boat with our premium 12-10 AWG Heat Shrink Butt Connectors. Designed specifically for marine environments, these connectors provide an environmentally sealed join, protecting your wiring from the harsh conditions of marine applications.

Why Choose Our Heat Shrink Butt Connectors?

Our butt connectors are engineered to deliver superior performance, making them ideal for marine and boating applications. Whether you're upgrading your vessel's electrical system or performing routine maintenance, these connectors offer the reliability and durability you need.

Key Features

• Material: Made from high-quality tinned copper and durable insulations
• Voltage Rating: Suitable for up to 600 Volts
• Temperature Range: Operates efficiently between -55°C to 125°C
• Compliance: UL, CSA, and RoHS certified for quality and safety
• Compatibility: Not applicable to all styles—ensure compatibility with your specific needs

Benefits & Protections

• Impact Resistant: Withstands the vibrations and movements typical in marine environments
• Multiple Uses: Versatile for connecting various wire gauges and configurations
• Long Term Protection: Epoxy-lined for an environmentally sealed connection, preventing corrosion and water ingress
• Easy to Install: Simplifies the wiring process with user-friendly design

Specifications

Parameter	Details
Wire Range	#12-10 AWG
Insulation Color	Yellow
Max Wire Insulation Outer Diameter	0.28"
Package Quantity	100 Pack
Box Dimensions	2"H x 5"W x 9"L
Weight	0.8 lbs
UPC	840248206693
Heat Shrink	Yes
Type	Butt Connectors

Installation Guide

Installing our heat shrink butt connectors is straightforward. Follow these steps for a secure connection:

1. Strip the insulation from the ends of the wires you wish to connect.
2. Insert the stripped wires into the butt connector.
3. Use a crimping tool to firmly secure the wires within the connector.
4. Apply heat to the shrink tubing using a heat gun until it tightly fits around the connection.

For detailed instructions, refer to our Quick Guide (PDF).

Watch How It's Done

Customer Reviews

Our customers appreciate the reliability and ease of use of these butt connectors, especially in demanding marine environments. Join the many boaters who trust our products for their electrical connections.

Frequently Asked Questions

• Are these connectors suitable for saltwater environments? Yes, the epoxy lining provides excellent protection against corrosion caused by saltwater.
• Can I use these connectors for larger gauge wires? These connectors are specifically designed for 12-10 AWG wires. For larger gauges, please refer to our other product offerings.
• Is special equipment required for installation? A standard crimping tool and heat gun are sufficient for installing these connectors.
