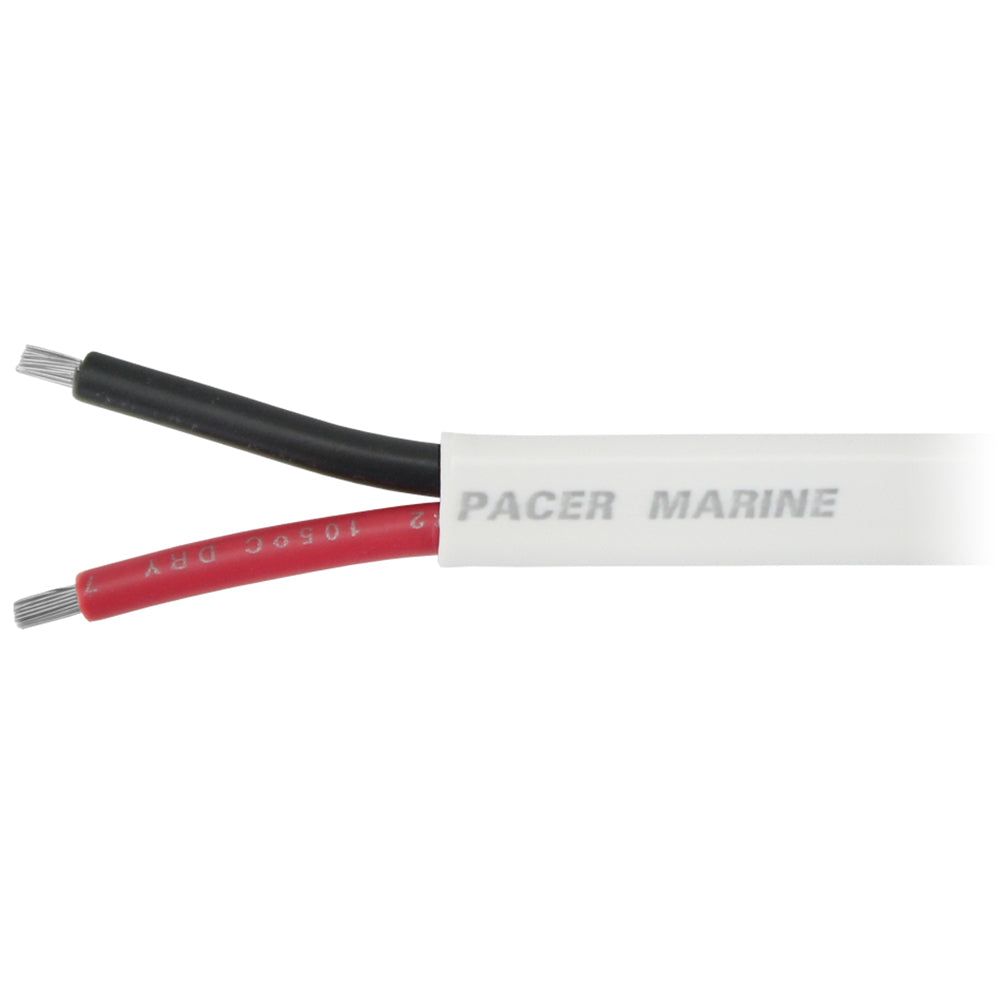

Pacer 10/2 AWG Duplex Cable - Red/Black - 250

Enhance your marine electrical systems with our premium 10/2 AWG Duplex Boat Cable, expertly crafted to deliver reliable performance in both AC and DC applications. Designed specifically for marine environments, this versatile cable ensures durability, flexibility, and resistance against the harshest conditions at sea.

Superior Construction for Optimal Performance

Our Duplex Boat Cable is meticulously manufactured in the USA, adhering to the highest quality standards. The cable features finely stranded, Type III tinned copper conductors that provide exceptional flexibility and resistance to corrosion, ensuring long-lasting performance on your vessel.

Advanced Protection Against Moisture and Damage

The robust PVC jacket is engineered to maintain flexibility while effectively preventing moisture ingress. During the extrusion process, all gaps between the wires are filled, eliminating spaces where moisture and air could accumulate. Additionally, a talcum powder coating is applied to the interior wires, facilitating easy removal of the outer jacket when necessary. These features make our 10 AWG Duplex Boat Cable an ideal choice for demanding marine environments.

Key Features

• Extruded exterior insulation with no gaps to prevent moisture ingress
• Highly flexible, color-coded PVC insulation for easy installation
• Stranded, tinned copper conductors for enhanced flexibility and corrosion resistance
• Annealed finely stranded tinned copper ASTM B172 Class K for superior conductivity
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture

Compliance and Standards

Our marine wire meets and exceeds rigorous industry standards, ensuring safety and reliability for your marine electrical systems.

• UL Standard - 1426
• U.S.C.G - 33 CFR part 183
• ABYC - E-11.14
• NMMA Standards

Technical Specifications

Conductor	Type III annealed finely stranded tinned copper ASTM B172 Class K
Insulation	Flexible, color-coded PVC (-20 °C to 105 °C)
Voltage Rating	600-V
Resistance	Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture
Number of Conductors	2
Type of Cable	Duplex

Product Specifications

Color	Red/Black
Gauge	10/2 AWG
Length	250'
Box Dimensions	9"H x 10"W x 10"L
Weight	30.2 lbs
UPC	840248200431

*Sold as an individual unit
