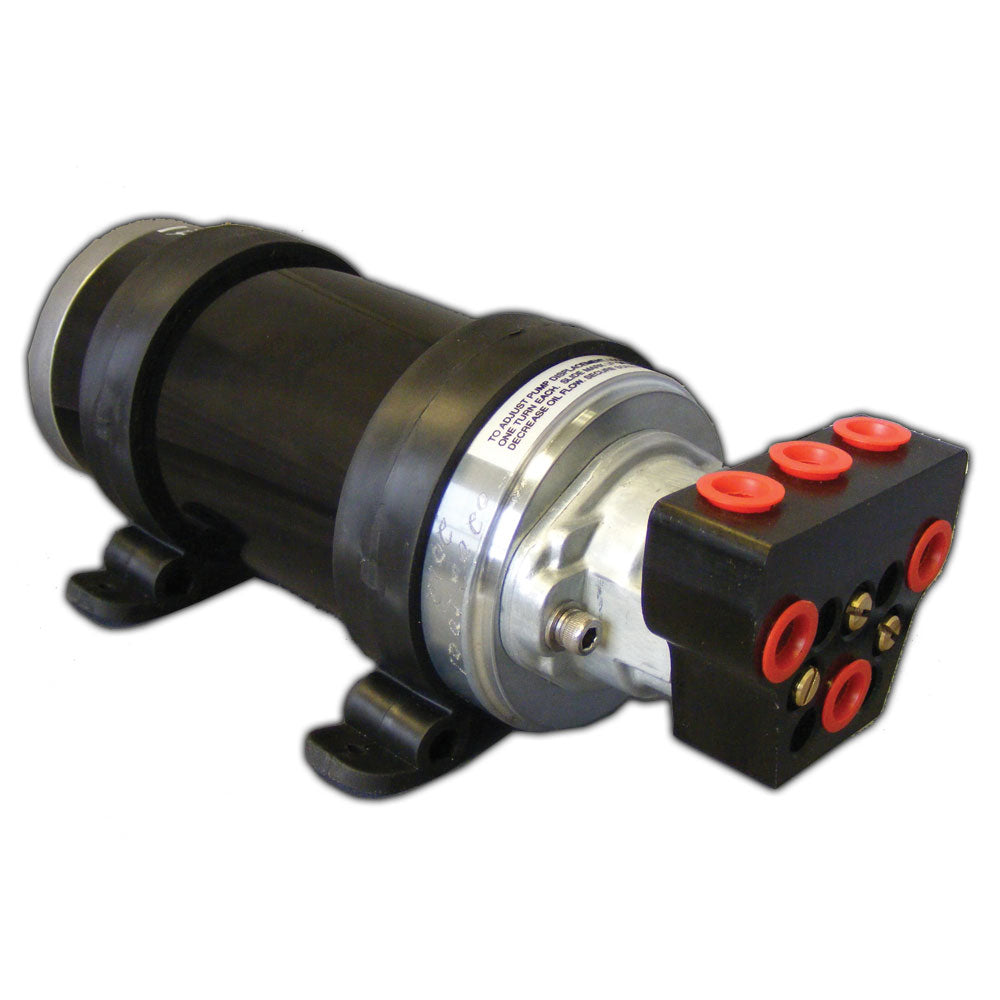

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder

Enhance your boat's hydraulic steering system with the Autopilot Pump Type 2, an adjustable reversing pump engineered for reliability and superior performance. Designed to seamlessly integrate with your marine autopilot, this pump ensures precise steering control, making it an essential component for vessels up to 65 feet L.O.A.

Product Overview

The Autopilot Pump Type 2 features an ORB Port Connection manifold, simplifying installation and ensuring a secure fit. Ideal for boats equipped with hydraulic steering, this reversing pump operates automatically, adjusting the rudder position based on the autopilot's commands. Its permanent magnetic motor allows for seamless direction reversal by simply changing the motor input current, eliminating the need for complex check valves and enhancing overall system reliability.

Key Features

• Adjustable Flow Rate: Customize the pump's output flow from 600cc to 1.2 liters per minute, allowing precise matching to your steering cylinder's requirements.
• Efficient Design: With only three moving parts, the pump minimizes wear and tear, ensuring long-lasting performance without the need for complicated maintenance.
• High Reliability: Delivers more than twice the hydraulic output per watt of input compared to competitor gear pumps, ensuring efficient power usage.
• Heavy-Duty Motors: Equipped with motors that are 85mm in diameter, featuring long-lasting brushes and sealed ball bearings for extended service life.
• Flexible Mounting: The molded rubber mounting foot can be rotated, allowing versatile installation on any surface.
• Expandable Accessories: Enhance functionality with a range of accessories, including additional valves and solid-state FET switches that mount directly to the pump body.

Benefits of the Autopilot Pump Type 2

Benefit	Description
Higher Efficiency	Piston pump technology ensures greater efficiency and accuracy in steering adjustments.
Increased Reliability	Fewer moving parts mean less potential for mechanical failure, enhancing overall system dependability.
Variable Flow Rate	Adjustable flow rates allow the pump to be finely tuned to match the specific volume of your steering cylinder.
Easy Servicing	Professional cut-off valves simplify maintenance and servicing procedures.

Technical Specifications

Specification	Details
Type	Pumps/Drives
Voltage	12 VDC
Average Current	4-6 Amps
Maximum Current	19 Amps
Cylinder Size	11-22 CI
Flow Rate (Adjustable)	600 cc - 1.2 liters/min
Box Dimensions	5" H x 6" W x 12" L
Weight	8.35 lbs
UPC	628309272777

Installation and Compatibility

The Autopilot Pump Type 2 is designed for easy installation with its ORB Port Connection manifold. Compatible with a wide range of hydraulic steering systems, it supports cylinder sizes from 11 to 22 CI, making it versatile for various boat sizes and steering configurations. The pump's adjustable flow rate ensures optimal performance, whether you're navigating calm waters or facing challenging conditions.

Enhance Your Steering System

Investing in the Autopilot Pump Type 2 means choosing a pump that offers exceptional efficiency, reliability, and flexibility. Its robust construction and thoughtful design make it a standout choice for marine enthusiasts seeking to upgrade their steering systems. Pair it with professional-grade accessories to further customize and enhance your boat's autopilot capabilities.
