Octopus 12" Stroke Remote 38mm Linear Drive - 12V - Up To 60' or 33,000lbs

Enhance your boat’s steering precision with the OCTAF1212LAR12 Octopus Hydraulic Linear Actuator. Designed for marine applications, this robust actuator seamlessly integrates with mechanical steering systems, offering reliable control whether you’re navigating calm seas or tackling offshore challenges.

Product Overview

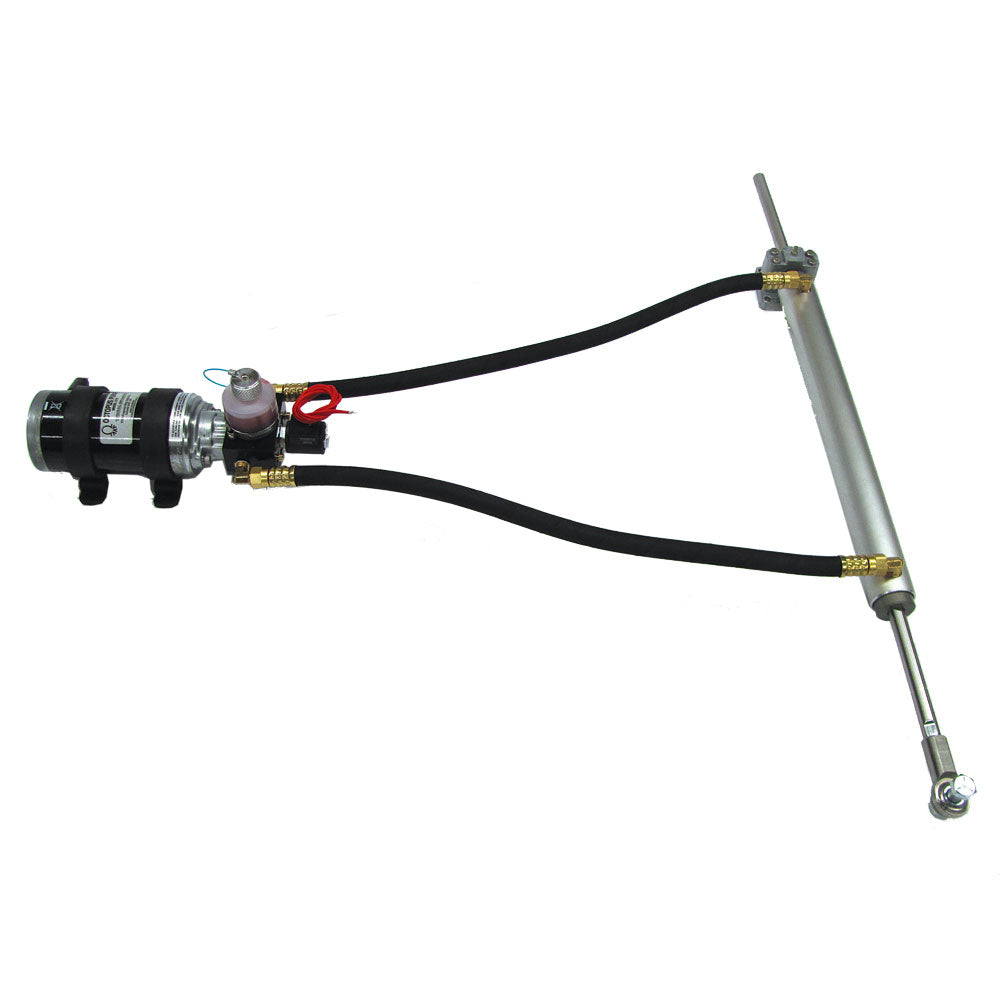

The Octopus Hydraulic Linear Actuator combines a high-performance reversing pump with a durable marine hydraulic cylinder. Mounted on the rudder tiller-arm or quadrant, it ensures smooth rudder movement when the autopilot is inactive. Once engaged, the actuator locks the cylinder and channels steering commands from the autopilot’s D.C. motor, allowing precise rudder adjustments. Its simple design, featuring only five moving parts, guarantees exceptional reliability and ease of maintenance, making it a preferred choice among offshore mariners.

Key Features

Feature	Specification
Average Current	4-6 amps
Maximum Current	19 amps
Power Supply	12 VDC
Cylinder Bore	38 mm
Variable Flow Rate	600 cc - 1.2 litre/min
Stroke Length	305 mm / 12 in
Suggested Hardover Time	14-16 sec
Maximum Rudder Torque	1,200 Nm / 10,600 lb-in
Peak Thrust	400 Kg / 882 lbs
Maximum Boat Length	18 m / 60'

Technical Specifications

• Type: Pumps/Drives
• Box Dimensions: 8"H x 8"W x 39"L
• Weight: 22.4 lbs
• UPC: 628309134792

Why Choose the Octopus Hydraulic Linear Actuator?

Our hydraulic linear actuators are engineered for simplicity and durability. With a transparent oil reservoir, monitoring fluid levels is effortless, ensuring optimal performance at all times. The actuator comes pre-filled with high-quality oil from our factory, eliminating the need for additional plumbing and reducing installation time. Its mechanical simplicity not only enhances reliability but also simplifies servicing, allowing you to focus on what matters most—navigating the open waters with confidence.

Download the Quick Guide (PDF)
