OceanLED Explore E2 Wide Beam - Midnight Blue
OceanLED Explore E2 Wide Beam - Midnight Blue is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Explore E2 Wide Beam in Midnight Blue is the latest addition to our Explore series, engineered specifically for boating enthusiasts and marine applications. This compact yet high-performance XFM light is perfect for tight installation spaces on various types of vessels, offering exceptional build quality and a suite of premium features typically found in larger marine lights. Whether you're upgrading your boat's navigation system or enhancing its overall lighting setup, the E2 ensures reliable illumination and durability in demanding marine environments.
Customizable Beam Options
The Explore E2 provides versatility in lighting with two distinct beam shapes, allowing you to tailor the illumination to your specific marine needs:
- Wide-Angle Beam: Our signature elliptical beam with a 90° horizontal and 20° vertical spread delivers extensive coverage, ensuring optimal visibility for navigation and safety.
- Narrow “Laser” Beam: A focused 20° circular beam offers precise lighting, ideal for highlighting specific areas or objects on your vessel.
Advanced Water Ingress Protection
Designed to withstand the harshest marine environments, the Explore E2 boasts full IP69k Certification, the highest level of protection against water ingress. This ensures the light remains fully functional even in extreme conditions. Additionally, the rear of the E2 is protected against temporary submersion, safeguarding against in-hull flooding caused by rough seas and wave action.
Effortless XFM Removal

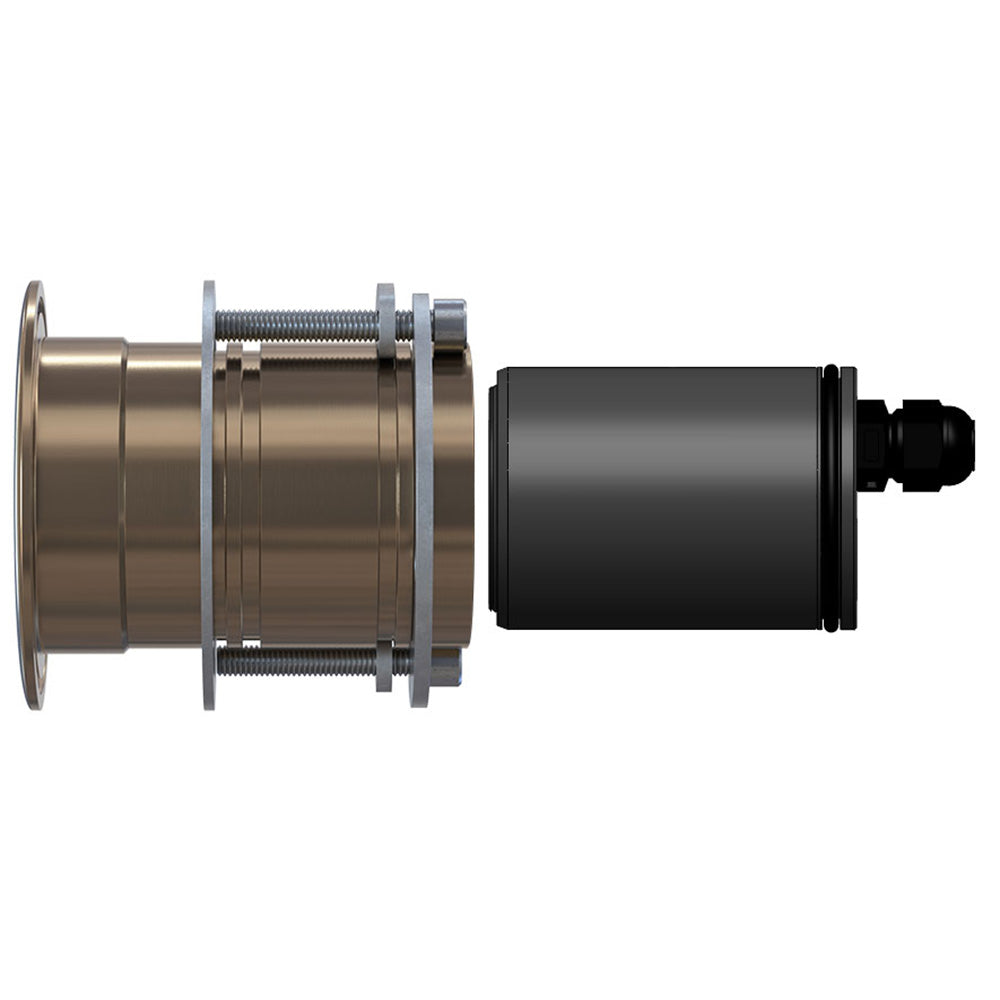

Maintenance and upgrades are seamless with the Explore E2's XFM (eXternal Fixed Mount) capabilities. The light body can be easily removed without the need to haul the boat, providing convenient access for any necessary adjustments or enhancements to your marine lighting system.
Seamless Control Integration
Integrate the Explore E2 effortlessly into your existing marine electrical setup. Control your E2 lights using your preferred third-party switch or push button, allowing for easy customization and enhanced functionality tailored to your boating preferences.
Key Features
- Elliptical 90° / 20° Wide Beam Option
- Circular 20° Beam Option
- Up to 3000 Fixture Lumens
- Compact Design with Built-in Driver
- Ultra-Low Profile Outer Bezel
- IP69k Certification with In-Hull Temporary Submersion Protection
- Enhanced Anti-Fouling Tritonium Coated Lens
- Reliable CREE LED Technology
- Fish Strobe Feature for Enhanced Visibility
Specifications
| Attribute | Description |
|---|---|
| Fixture Lumens* | 3000 (total light output from a finished fixture) |
| Beam Angle (Wide) | 90° / 20° Elliptical |
| Beam Angle (Narrow) | 20° Circular |
| IP Rating | IP69k |
| Operating Voltage DC | 10-30V DC |
| Current / Amp Draw (DC) | 3.5A @ 12V DC / 1.5A @ 24V DC |
| Driver Type | Internal |
| Correlated Color Temperature | 6500K (White) |
| Rear Temporary Submersion Protection | Yes |
| Fish Strobe | Yes |
| Anti-Fouling Properties | Tritonium Coated Lens |
| LED Manufacturer | CREE |
| CE Approved | Yes |
*Fixture Lumens represent the total light output from a finished fixture.
Mounting Recommendations
| Specification | Details |
|---|---|
| Boat Size | Up to 20m (65’) |
| Transom / Hull Spacing | 1 - 1.5m (3-5’) |
| Installation Depth Below Waterline | 25-30cm (10-12”) |
| Maximum Hull Thickness | 60mm (2.4”) |
Physical Specifications
| Dimension | Measurement |
|---|---|
| Total Weight | 0.8kg (1.76lbs) |
| Total Diameter (Including Bezel) | 80mm (3.15”) |
| Diameter Of Body | 59mm (2.32”) |
| Profile Of Fixture | 3.5mm (0.14”) |
| Overall Length | 101.5mm (4”) |
| Minimum Space Required Inside The Hull | 172mm (6.78”) |
| Hole Cut-Out | 60mm (2.37”) |
| Material (Mounting Tube / Bezel) | AB2 Aluminium Bronze |
| Material (Light Body) | AB2 |
| Lens | Glass |
| Optics (Wide Beam Option) | Hybrid Collimated |
| Optics (Narrow Beam Option) | Collimated |
