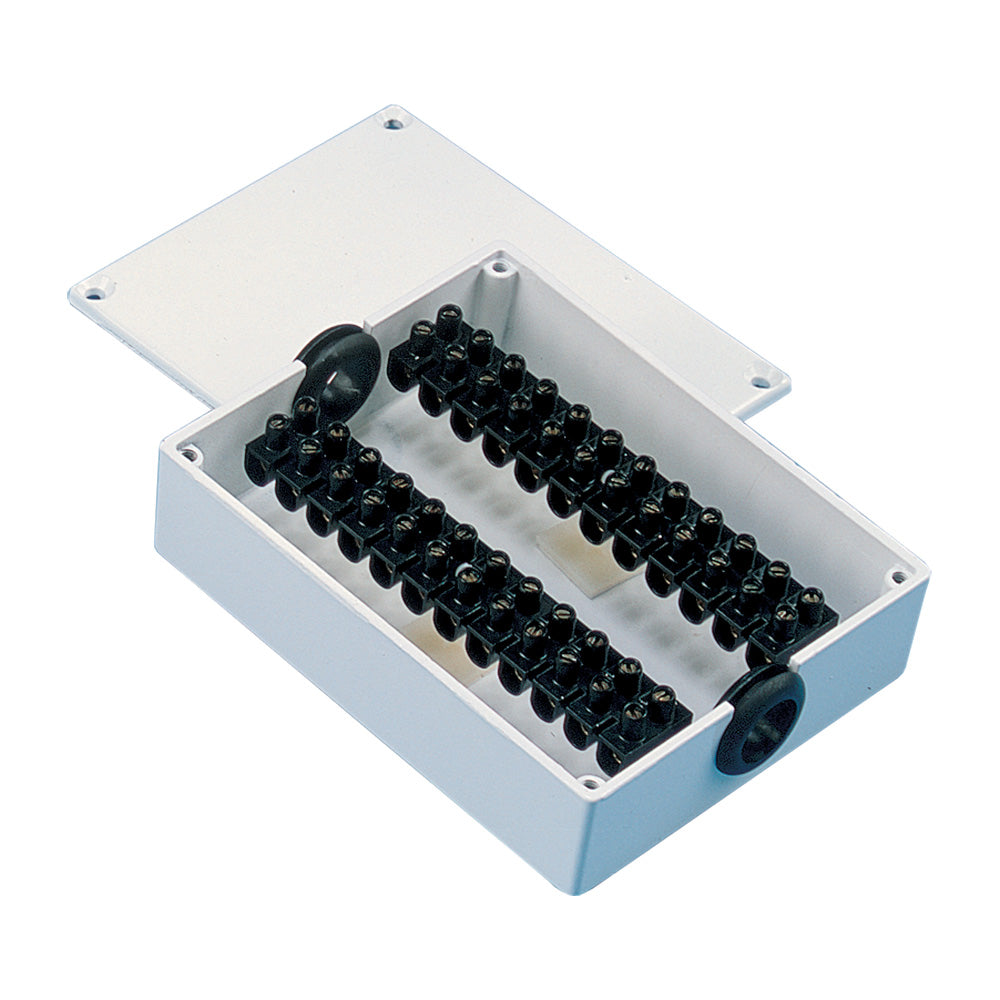

Newmar BX-3 Junction Box

The BX-3 Junction Box is a reliable solution for managing electrical connections on your vessel. Designed specifically for marine environments, it ensures secure and protected wiring in wheelhouses, below decks, and engine rooms, providing peace of mind and enhanced safety for your boat's electrical system.

Features

• IP Rating 54 – Splashproof: Offers protection against water splashes, making it ideal for the wet conditions commonly found on boats.
• Rugged Cast Aluminum Construction: Built with a durable cast aluminum box finished with white enamel to resist corrosion and withstand harsh marine environments.
• Reduces Electrical Interference: The metal enclosure minimizes electrical noise, ensuring stable and reliable electrical connections.
• Easy Wiring Access: Multiple grommeted cable entries provide convenient access for wiring installation and maintenance.
• High-Quality Connector Strips: Equipped with connector strips that use compression fittings to secure wires without the need for terminals. Refer to the specifications table below for details on connector strip configurations.

Specifications

Feature	Details
Type	Junction Box
Box Dimensions	4.7 x 3.7 x 1.3 in. (11.9 x 9.4 x 3.3 cm)
Alternate Dimensions	2" H x 6" W x 9" L
Weight	0.7 lbs
Number of Connector Strips	2
Positions per Strip	11
Maximum Wire Gauge	14
Maximum Amps (per position)	10 A
Cable Entries	2
Cable Diameter	0.59 in.
