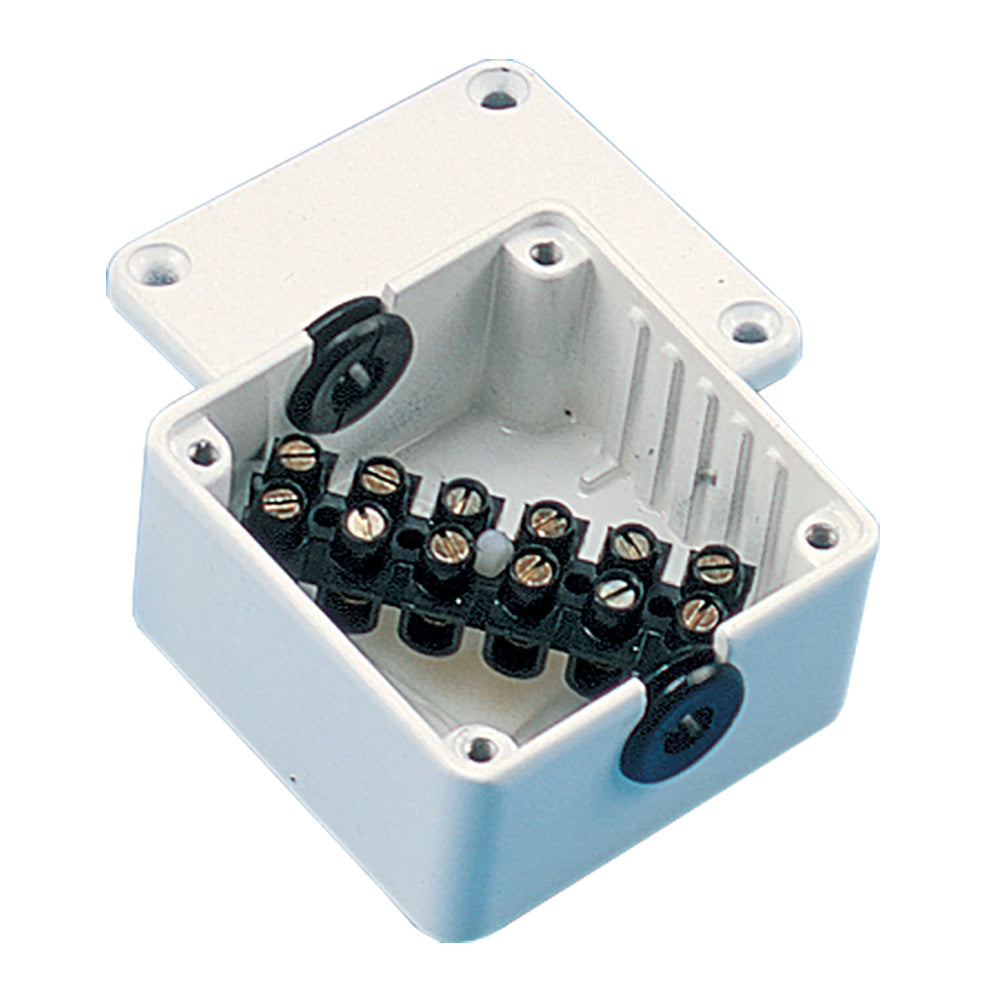

Newmar BX-1 Junction Box

The BX-1 Junction Box is the ideal solution for secure and protected wiring connections in your boat's wheelhouse, below decks, or engine room. Designed specifically for marine environments, this robust junction box ensures reliable performance even in the harshest conditions.

Key Features

• IP Rating 54 – Splashproof: Provides excellent protection against water spray and dust intrusion, ensuring longevity and reliability.
• Durable Construction: Made from rugged cast aluminum with a white enamel finish, offering both strength and corrosion resistance.
• Minimized Electrical Interference: The metal box design effectively reduces electrical noise and interference, ensuring clear and stable connections.
• Easy Wiring Access: Multiple grommeted cable entries allow for straightforward and organized wiring management.
• High-Quality Connector Strips: Equipped with secure compression fittings, eliminating the need for terminals and simplifying the wiring process.

Technical Specifications

Specification	Details
Number of Connector Strips	1
Positions per Strip	6
Max Wire Gauge	16
Max Amps (per position)	6
Cable Entries	2
Cable Diameter	0.25 in.
Box Size	2 x 2 x 1.2 in. (5.1 x 5.1 x 3.1 cm)
Type	Junction Box
Box Dimensions	2"H x 4"W x 6"L
Weight	0.35 lbs

Why Choose the BX-1 Junction Box?

The BX-1 Junction Box is engineered to meet the demanding needs of marine applications. Its splashproof design ensures that your electrical connections remain safe and dry, while the rugged aluminum construction withstands the corrosive marine environment. Whether you're upgrading your boat's electrical system or performing routine maintenance, the BX-1 offers the reliability and ease of use that boaters trust.

Installation and Maintenance

Installing the BX-1 Junction Box is straightforward thanks to its user-friendly design. The multiple grommeted cable entries provide flexible wiring options, and the high-quality connector strips ensure secure and efficient connections without the hassle of traditional terminal blocks. Maintenance is minimal, allowing you to focus more on enjoying your time on the water.

Order Your BX-1 Junction Box Today

Enhance the safety and reliability of your boat's electrical system with the BX-1 Junction Box. Perfect for wheelhouses, below decks, and engine rooms, this splashproof junction box is a must-have for any serious boater. Order now and experience the difference in quality and performance.
