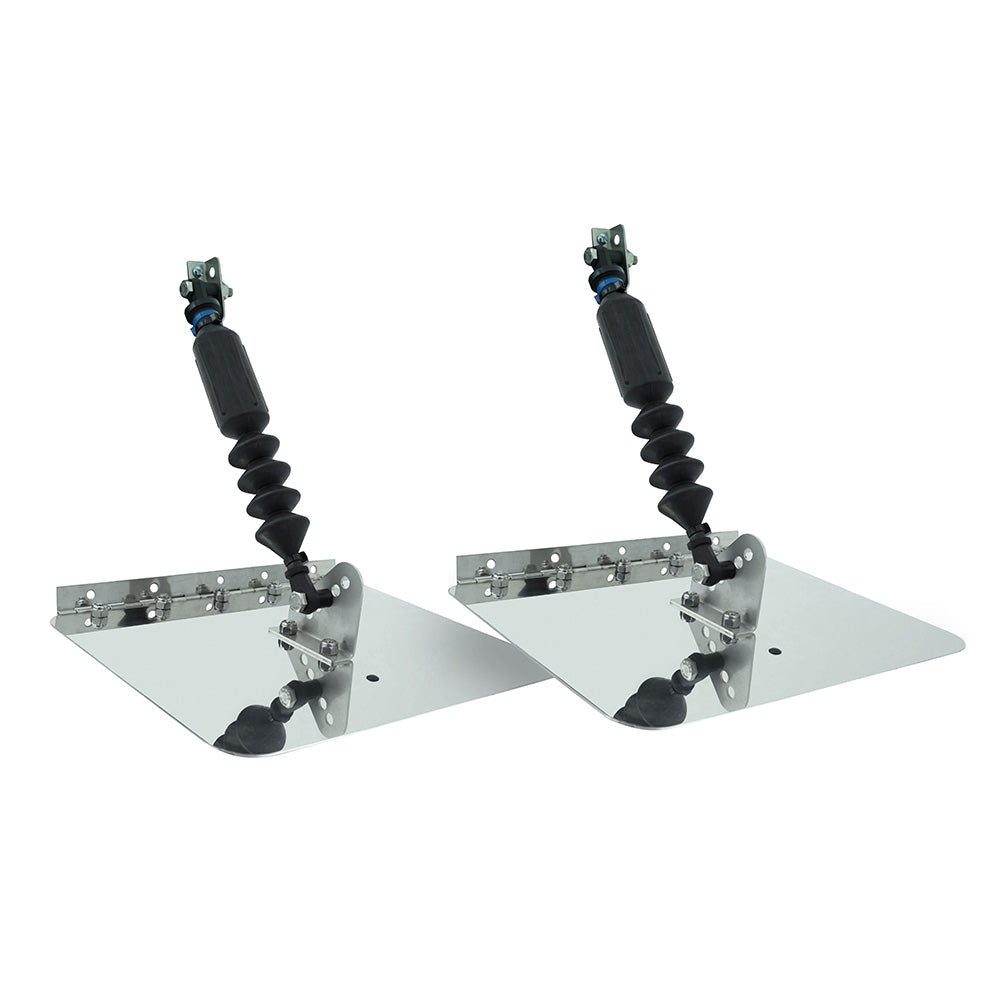

Nauticus ST1290-80 Smart Tab Trim Tabs 12 X 9 f/18-22' Boats w/150-240 HP

Enhance your boat's performance with Smart Tab Trim Tabs, specifically designed for 12 x 9-foot boats equipped with 150-240 HP engines. These innovative trim tabs automatically adjust to optimize your boat's handling, speed, and fuel efficiency without the need for manual intervention.

Unmatched Performance Improvement

Experience a significant boost in your boat’s overall performance with Smart Tab Trim Tabs. We guarantee an outstanding enhancement, or you can contact us within 30 days of your purchase for a full refund.

Automatic Adjustment for Superior Efficiency

Why settle for manually adjusting trim tabs when Smart Tabs offer automatic self-adjustment that enhances performance while saving you money? Our breakthrough technology ensures that trim tabs continuously adapt to your boat’s loading and maneuvering conditions without any operator input.

Advanced Lift Mechanism

The nitrogen gas actuator provides lift at the stern by maintaining the trim plate position during acceleration. The lift amount is determined by the actuator's load rating and the trim plate adjustment set during installation.

Key Benefits

• Reduce minimum planing speed by up to 33%
• Faster acceleration
• Increased top speed
• Level and more comfortable ride at lower speeds
• Improved fuel economy, handling, and safety

Hydraulic-Free Operation

Smart Tab Trim Tabs eliminate the need for hydraulics and electric switches, offering a completely automatic system that requires no adjustments while underway. The nitrogen gas actuator ensures consistent lift based on water pressure and trim plate settings.

Speed Regulated Performance

Smart Tabs initiate with a downward angle to maximize lift at slow speeds. As the boat accelerates, water pressure elevates the trim plates, reducing bow rise and allowing for quicker planing. Once water pressure surpasses the actuator's load rating, the trim plates level out, minimizing drag.

Enhanced Stability

Smart Tabs act as boat stabilizers, continuously adjusting to sea conditions to provide exceptional stability during turns, wave crossings, cruising, and high-speed runs. Say goodbye to sliding, porpoising, and chine walking.

Unique Smart Valve System

Our one-of-a-kind internal valve system intelligently controls your boat’s performance by dampening trim plate movements. This ensures smooth and undetectable responses to speed changes, maintaining a comfortable and level ride even at lower speeds.

Easy Installation

Installing Smart Tab Trim Tabs is straightforward and can be done with basic tools such as an electric drill, small drill bit, Phillips screwdriver, and two wrenches. Most users can complete the installation in under an hour, while professional installers may take 30 minutes or less. All necessary mounting hardware, instructions, and templates are included.

No through hull drilling required.

Specifications

Feature	Details
Actuator Type	Hydraulic
Construction	Stainless Steel
Box Dimensions	5"H x 9"W x 12"L
Weight	6.05 lbs
UPC	698690129080

Owner's Manual (PDF)
