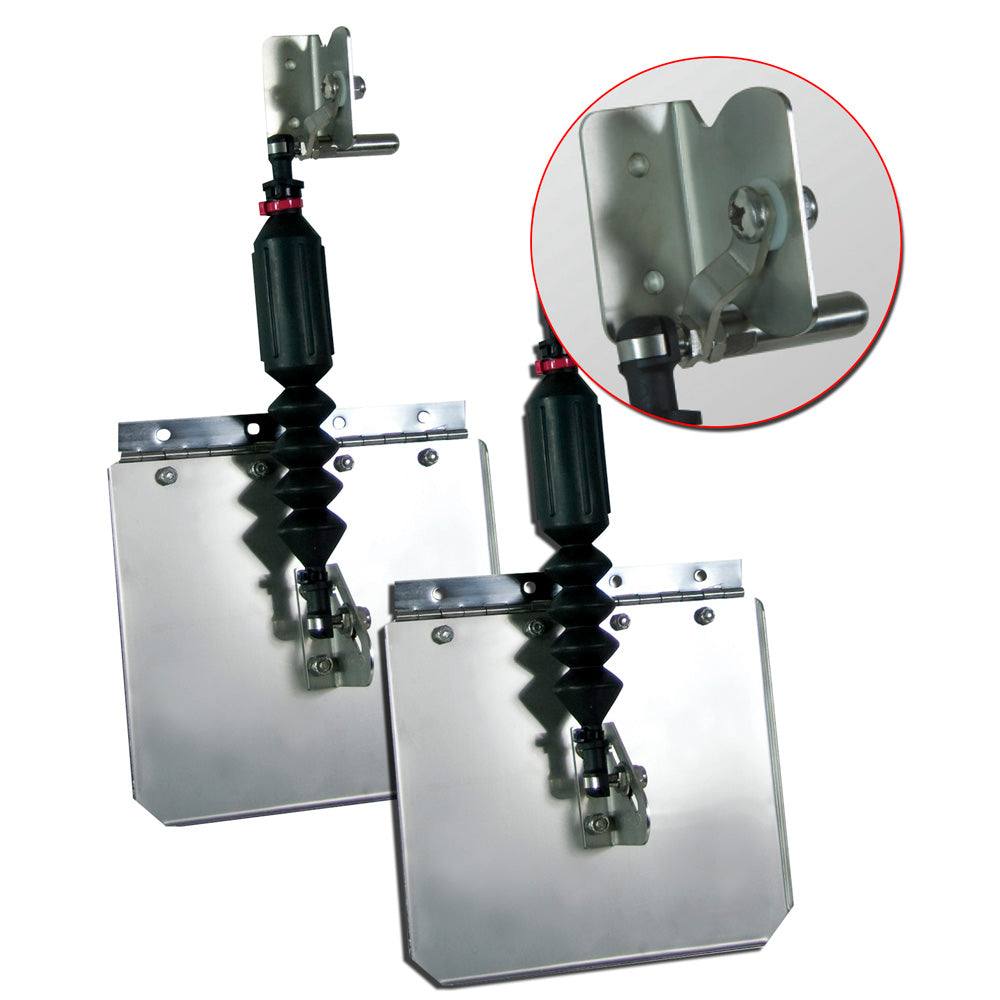

Nauticus PT1290-60 Pro Troller Smart Tabs Series f/17-20 Boats w/80 - 175 HP

The ProTroller Smart Tabs Series is an innovative solution designed for 17-20' boats with 80 - 175 HP engines. Combining the functionality of trolling brakes and trim tabs, this system enhances your boating experience by providing seamless control and improved performance.

Smart Tabs: Trolling Brakes and Trim Tabs in One

The ProTroller Smart Tabs seamlessly switch between the most effective trim and stabilizer system and top-tier trolling brakes with a simple lever movement. Whether you're cruising or trolling, these smart tabs adapt to your needs, offering unparalleled versatility and performance.

Trolling Brakes

When the levers are in the down position, the trim plates deploy to create equal braking on both sides of the boat. This ensures straight tracking at ultra-low speeds while maintaining steering control, as the propeller remains unrestricted unlike other systems.

Trim Tabs

Switch the lever to the up position to activate automatic trim tabs. Enjoy a better ride and handling, faster acceleration, increased top speed, and improved fuel economy. The Smart Tabs are fully automatic and can be fine-tuned to your specific boat and preferences, offering performance enhancements that are guaranteed.

Key Benefits

Benefit	Description
Reduced Minimum Planning Speed	Decrease planning speed by up to 33%.
Faster Acceleration	Experience quicker response and speed increases.
Increased Top Speed	Achieve higher maximum speeds efficiently.
Comfortable Ride	Enjoy a level and smoother ride at lower speeds.
Improved Fuel Economy	Optimize fuel usage, enhancing overall efficiency.
Enhanced Handling and Safety	Better control and stability for a safer boating experience.

Advanced Technology

The ProTroller Smart Tabs feature a nitrogen gas actuator that provides lift at the boat's stern during acceleration. This lift is calibrated based on the actuator's load rating and trim plate adjustment, ensuring optimal performance tailored to your boat's specific requirements.

Unlike other systems, Smart Tabs operate without hydraulics or electric switches, relying entirely on automatic adjustments while underway. This breakthrough technology ensures that your trim tabs self-adjust according to how you load and maneuver your boat, enhancing performance without any manual intervention.

Speed Regulation

Smart Tabs are designed to adapt to varying speeds. At low speeds, the trim plates are angled downward to maximize lift, minimizing bow rise and allowing the boat to plane quickly. As speed increases and water pressure builds, the trim plates gradually move to a horizontal position, eliminating drag and maintaining efficiency.

Stabilization for a Smooth Ride

Even while cruising, Smart Tabs function as stabilizers, continuously adjusting to sea conditions. This provides remarkable stability during turns, crossing waves, cruising, and at maximum speeds, eliminating issues like sliding, porpoising, or chine walking.

Unique Industry-Leading Design

The internal valve system of Smart Tabs is uniquely designed to control your boat's performance intelligently. This system dampens trim plate movement, ensuring smooth and undetectable reactions to speed changes, and providing a consistently comfortable ride.

Easy Installation

Installing Smart Tabs is straightforward and can be done with basic tools such as an electric drill, small drill bit, Phillips screwdriver, and two wrenches. Most users can complete the installation in under an hour, while professional installers can finish in 30 minutes or less. All necessary mounting hardware, instructions, and templates are included, and no through-hull drilling is required.

Product Specifications

Specification	Details
Actuator Type	Hydraulic
Construction	Stainless Steel
Box Dimensions	4"H x 9"W x 12"L
Weight	6.05 lbs
UPC	698690129608

Warranty and Support

Guaranteed Performance: If the trim tabs do not provide an outstanding performance increase, contact us within 30 days of your purchase for a full refund.

Resources

Owner's Manual (PDF)
