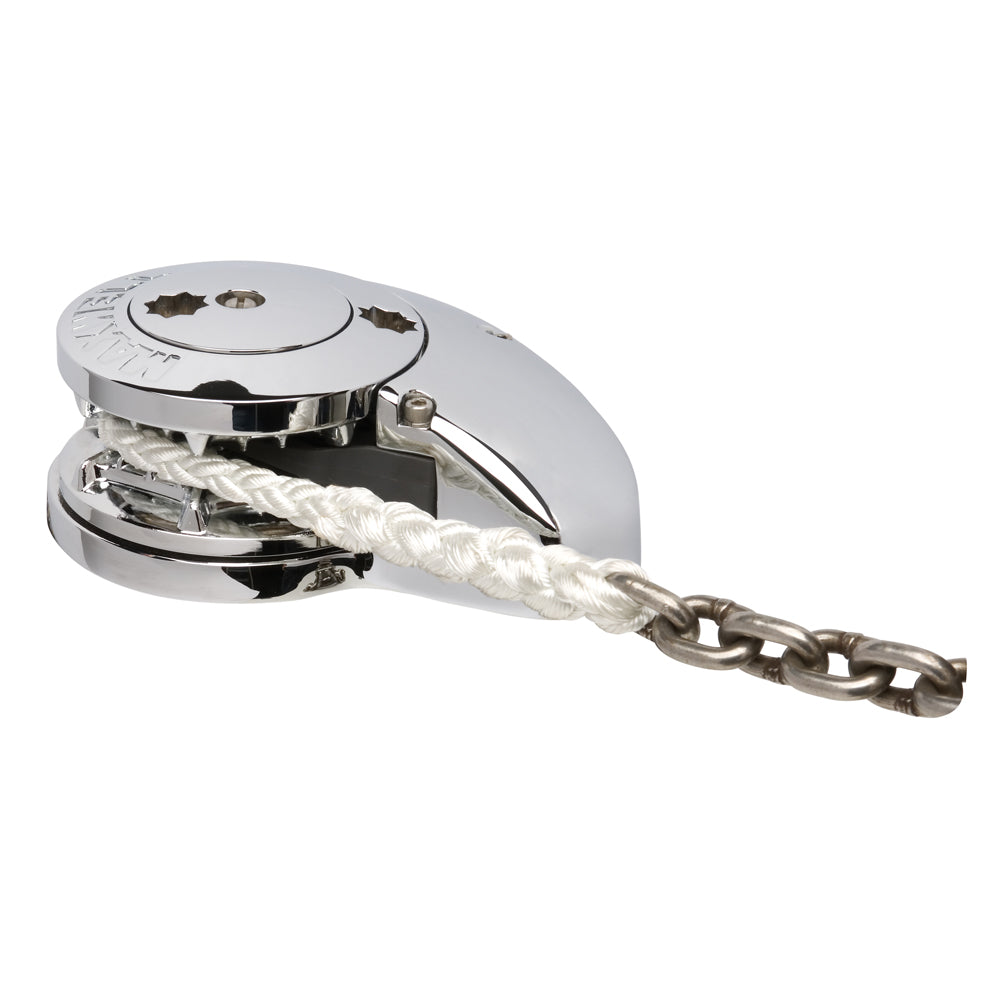

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope

The RC10 Automatic Rope/Chain Windlass is a robust and versatile solution designed to enhance your boating experience. Engineered for optimal performance and ease of use, this windlass seamlessly handles both rope and chain anchor systems, providing reliability and durability on the water.

Key Features

• Compatible with 5/16" (8mm metric) chain and 5/8" rope combinations, as well as all chain rodes
• Powerful 1000W motor delivering a maximum pull of 1540 lbs
• Constructed with a heavy-duty stainless steel pressure arm and a unique rope/chain gypsy for superior performance
• Easy two-piece installation for quick retrofitting without disassembling the windlass
• Marine-grade chromed bronze construction ensures long-term durability and resistance to harsh marine environments
• Topworks fully disassemblable using the included handle, screwdriver, and standard allen key for effortless maintenance
• Large through-deck hawse pipe throat facilitates easy entry and exit of the rope/chain rode into the anchor locker
• Low-profile design suitable for both rope/chain and all-chain systems, offering aesthetic appeal and functionality

Specifications

Attribute	Details
Chain Diameter	5/16" (8mm metric)
Rope Diameter	5/8"
Motor Wattage	1000W
Maximum Pull	1540 lbs
Freefall	Yes
Orientation	Vertical
Box Dimensions	11"H x 17"W x 20"L
Weight	50 lbs
UPC	1000000004267

Installation and Maintenance

The RC10 windlass features a simple two-piece installation process, allowing for quick and cost-effective setup without the need to disassemble the existing windlass system. This design not only saves time but also makes retrofitting straightforward. Regular maintenance is hassle-free, thanks to the fully disassemblable topworks which can be accessed using the provided handle, screwdriver, and standard allen key—no special tools required.

Durability and Construction

Built from marine-grade chromed bronze, the RC10 windlass is designed to withstand the harsh marine environment, offering long-term durability and resistance to corrosion. The heavy-duty stainless steel pressure arm and unique gypsy mechanism ensure superior performance and reliability under demanding conditions.

Compatibility

The RC10 Automatic Windlass is versatile in its compatibility, effortlessly handling both rope/chain combinations and all-chain rodes. This flexibility allows boaters to choose between enhanced security with all-chain systems or the combined ease of rope and chain setups, all while maintaining an elegant and low-profile appearance on the foredeck.

Warranty

The RC10 comes with an exclusive Maxwell 3-Year Limited Warranty, providing assurance that you are investing in a top-quality product backed by dependable support.

Support and Resources

• Quick Guide (PDF)
• Brochure (PDF)

Please note: This product cannot be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly.
