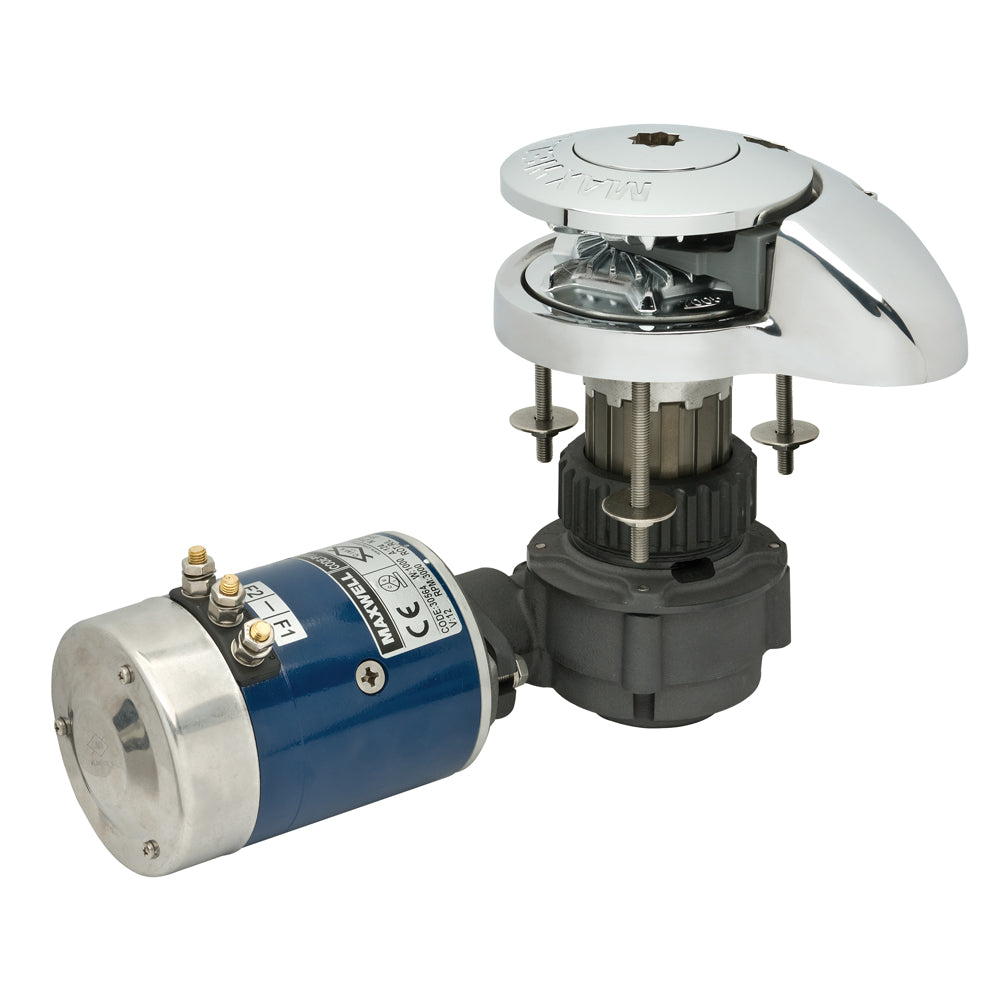

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V

Enhance your vessel's anchoring system with the RC8-6 Vertical Windlass. Engineered for reliability and ease of use, this 12V windlass effortlessly handles 1/4" chain and 1/2" rope, ensuring smooth and secure anchor retrieval and deployment. Perfect for both retrofitting and new installations, the RC8-6 combines durability with advanced features tailored for marine enthusiasts.

Package Includes

• Windlass
• On/Off Breaker Panel
• Reversing Solenoid
• Up/Down Panel Switch
• Emergency Crank / Clutch Release Handle

Key Features

• Easy Installation: Simple two-piece installation saves time and money, allowing for effortless retrofitting without the need to disassemble the existing windlass.
• Versatile Mounting: Unique spacer tube design accommodates virtually any deck thickness, while multiple mounting positions and a self-aligning gearbox ensure optimal placement of the gearbox and motor.
• Automatic Operation: Fully automatic rope and chain windlass designed to seamlessly retrieve and deploy 1/4" (6mm / 7mm) chain spliced to 1/2" (12mm) three-strand or 8-braid rope.
• Advanced Chainwheel: The ingeniously designed rope/chain gypsy accommodates a wide range of chain pitch differences within the specified diameters, compatible with the RC8 Series.
• Maintenance-Friendly: Full disassembly capability of topworks using only the provided handle and an Allen key.
• Marine-Grade Durability: Constructed from 316 stainless steel for long-term resistance against the harsh marine environment.
• Heavy Duty Pressure Arm: Designed to effectively grasp the rope/chain splice, providing unparalleled performance.
• Consistent Control: Features a heavy-duty, large wire diameter stainless steel preloaded spring that ensures maximum control pressure at all times.
• Low Profile Design: Works efficiently with all-chain rodes, offering an elegant and low-profile appearance on your foredeck.
• Large Hawse Pipe Throat: Ensures easy entry and exit of the rope/chain rode into and out of the anchor locker.
• Manual Override: Includes an emergency crank handle for manual operation when needed.
• High Efficiency Drive: Sealed oil bath and marine-grade hard-anodized alloy gearbox provide high-efficiency output via precision worm and worm wheel.

Maxwell's Unique Wave Design™ Chainwheel

• Patented Technology: Incorporates two unique design concepts that significantly enhance the handling and control of the rope/chain spliced rode.
• Enhanced Guidance: Outer ribs are angled forward to smoothly guide rope and chain during anchor retrieval.
• Secure Grip: Opposite facing inner ribs grip the rope in an undulating 'wave pattern,' offering superior security compared to traditional 'jam cleat' methods.
• Rope Longevity: The Wave Design™ ensures a secure hold while being gentle on the rope, increasing the longevity of your anchor rode.
• Wide Compatibility: Suitable for anchor rodes with any marine-grade chain, including G4, BBB, Proof Coil, and Metric.

Specifications

Feature	Details
Material	Marine-Grade 316 Stainless Steel
Power	12 Volt DC, 600 Watts
Chain Diameter	1/4" (6mm / 7mm)
Maximum Pull	770 lbs (350kg)
Rope Size	Nylon (3-Strand or 8 Plait Recommended) 1/2" (12mm)
Chain Speed (Anchor Retrieval)	92 Feet per Minute (28 m/min)
Rope Speed (Anchor Retrieval)	79 Feet per Minute (24 m/min)
Freefall	Yes
Orientation	Vertical
Box Dimensions	11"H x 17"W x 19"L
Weight	31.8 lbs
UPC	1000000004847
