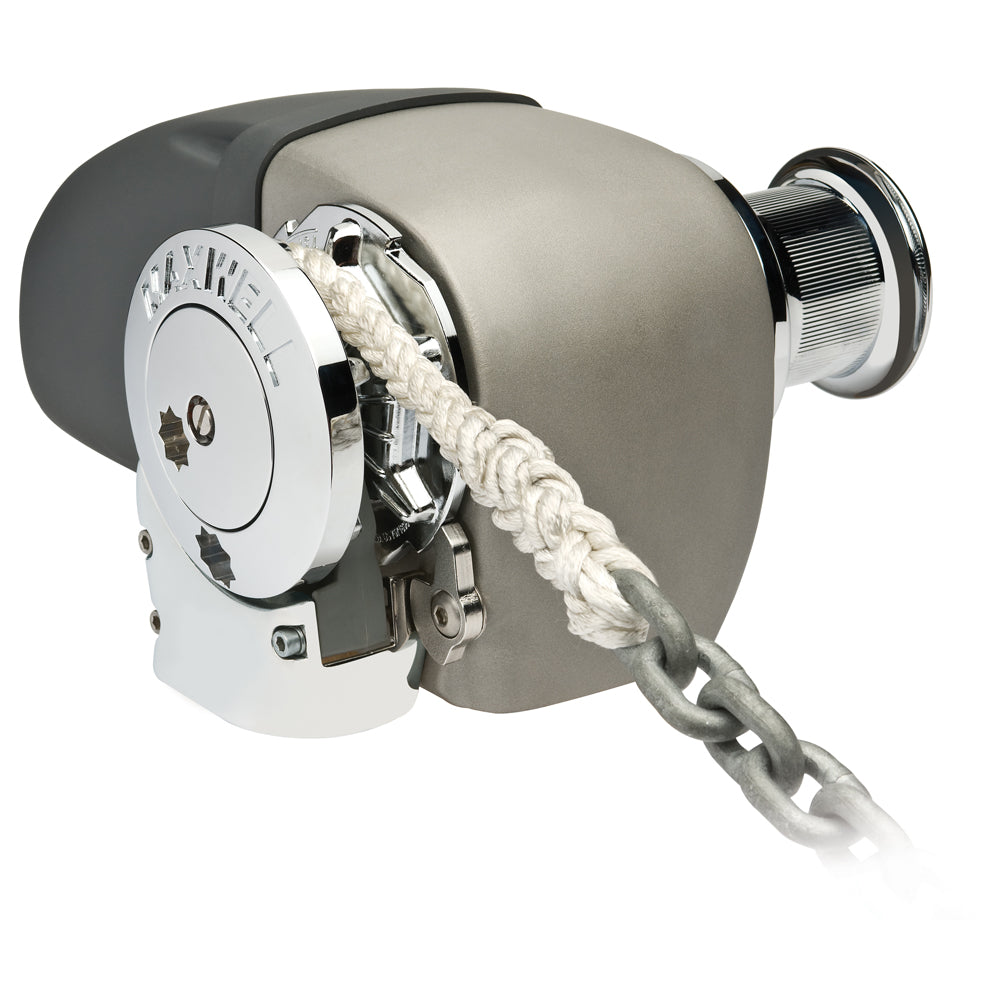

Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan

The HRC 10-8 Horizontal Windlass is the perfect solution for securing your boat, designed specifically for vessels up to 45 feet. Combining robust construction with advanced features, this 12V windlass efficiently handles 5/16" chain and 5/8" rope, ensuring reliable anchor management in all marine conditions.

Kit Includes

• Windlass
• On/Off Breaker Panel
• Reversing Solenoid
• Up/Down Panel Switch
• Clutch Release Handle

Key Features

• Fully Automatic Operation: Effortlessly retrieve and deploy 8mm (5/16") chain and 16mm (5/8") three-strand or 8-braid (plait) rope.
• Patented Chain Wheel Design: Accommodates any 5/16" or 8mm marine-grade chain spliced to 5/8" rope, ensuring versatile usage.
• Aesthetic and Functional Design: The above-deck windlass features a two-part watertight anodized aluminum case, optimizing space below deck and protecting the motor and drive system.
• Durable Construction: Made from anodized aluminum with a marine-grade hard anodized alloy front and a rugged, removable composite motor cover.
• Easy Maintenance: The watertight two-piece case allows for quick, on-deck routine maintenance without hassle.
• Simple Installation: "Bolt down" installation ensures a rapid and effortless setup on deck.
• Enhanced Control: Stainless steel pressure arm provides maximum control pressure on the rode, ensuring secure anchor management.
• Wave Design Chainwheel: Accommodates a wide range of chain pitch differences within specified diameters, compatible with the HRC10 Series.
• Improved Handling: The unique Maxwell "wrap around" horizontal chainwheel utilizes over 90% of the wheel, offering superior rope and chain handling compared to competitors.
• High-Quality Components: Features stainless steel chainwheels and a sealed oil bath with a marine-grade hard anodized alloy gearbox for high-efficiency drive output.
• Versatile Rodes: Operates effectively with all-chain rodes for added security and holding power.
• Integrated Chain Pipe: The large, through-deck hawse pipe throat ensures easy entry and exit of the rope or chain rode.
• Safety Features: Cone-type clutch/brake mechanism allows for manual "free fall" anchoring and emergency crank recovery if needed.
• Warranty: Comes with an exclusive Maxwell 3-year limited warranty for peace of mind.

Specifications

Maximum Pull	1,540 lbs
Chain Short Link	5/16" or 8mm
Chain Speed (Anchor Retrieval)	79 ft per Minute
Rope Speed (Anchor Retrieval)	65 ft per Minute
Rope Size	5/8" Nylon 3-strand or 8 Plait
Power Supply	12V DC
Motor Power	1,000 Watts
Net Weight	42 lbs
Chain Diameter	5/16"
Freefall	Yes
Rope Diameter	5/8"
Mount Type	Horizontal
Box Dimensions	12"H x 17"W x 19"L
Weight	56 lbs
UPC	1000000002683
