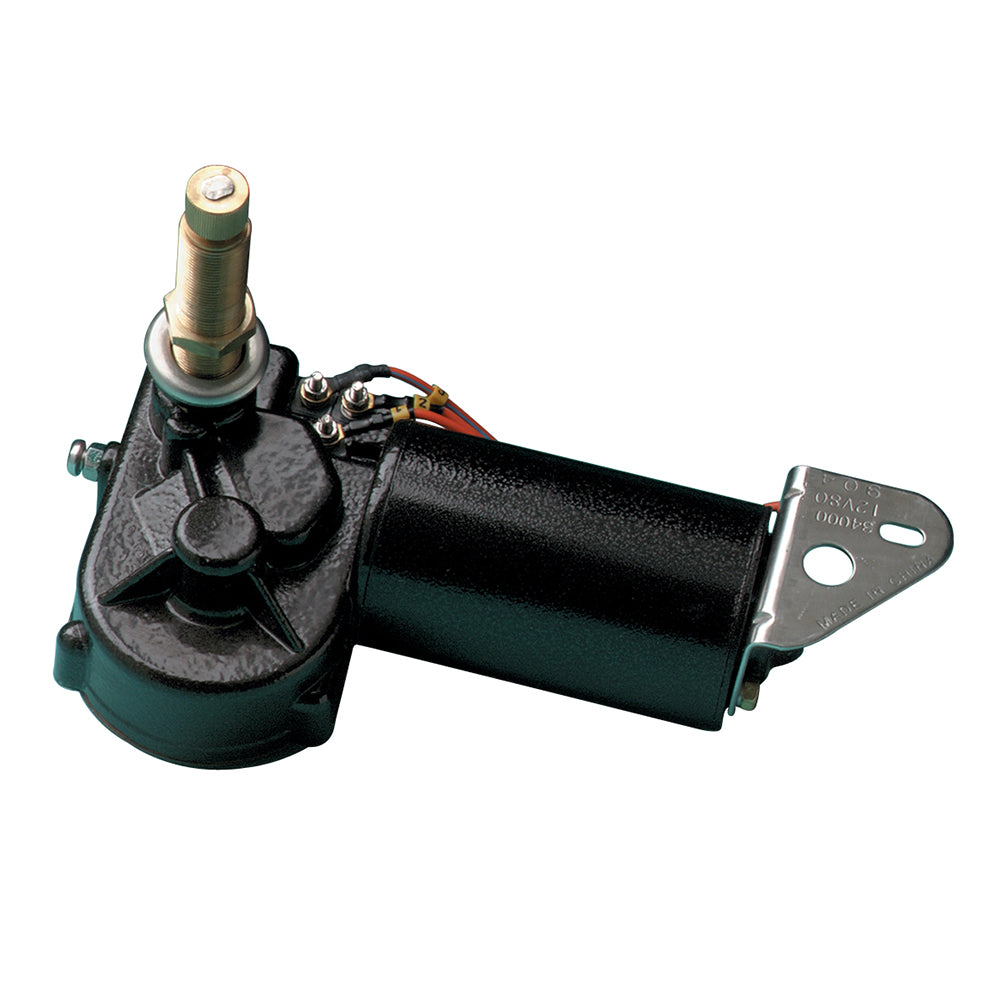

Marinco Wiper Motor MRV 12V 2.5" Shaft - 80

Ensure your marine vessel maintains clear visibility with the robust and reliable MRV 12V Wiper Motor. Specifically designed for the demanding conditions of boating, this wiper motor delivers consistent performance, enhancing safety and comfort during your time on the water.

Product Overview

The MRV Wiper Motor is engineered to efficiently power deluxe 22" x 22" arm/blade combinations or 20" x 20" premier configurations with sweep sets of up to 80 degrees. Its durable construction and adjustable features make it the ideal choice for marine and boating applications, providing reliable windshield wiper performance even in harsh environments.

Key Features

• Adjustable Sweep Range: Factory pre-set to 80° or 110°, adjustable to 45°, 60°, 80°, or 110° for customized wiper arcs.
• Shaft Specifications: 0.625" diameter (16 mm) available in three lengths: 1.5", 2.5", and 3.5" (includes a 0.5" knurled arm fitting).
• Corrosion-Resistant Casing: Built to withstand the corrosive marine environment, ensuring longevity and reliability.
• Heavy-Duty Motor: Features a right-angle drive and a two-speed motor that can also be operated at a single speed for versatile performance.
• High-Quality Components: Equipped with a solid brass knurled drive nut and a brass and stainless steel drive shaft for enhanced durability.
• Self-Parking Mechanism: Adjustable to right or left self-parking or coast-to-park settings, ensuring optimal wiper positioning.
• Comprehensive Retail Package: Includes a 5 amp fuse and holder, stainless steel fasteners, and a mounting bracket for easy installation.
• Compact Design: Measures 7.625" L x 4" W x 2" D, making it suitable for installations with limited space.

Technical Specifications

Specification	Details
Stall Torque	109 in-lbs (125 kgf/cm or 12.3 Nm)
Stall Current	11.5 to 13.0 amps
No Load Current	0.5 to 1.2 amps
Operating Voltage	12V DC
Motor Speed	Two-speed operation, configurable to single speed

Installation & Compatibility

The MRV Wiper Motor is designed for seamless integration with your marine vessel's existing wiper system. It is compatible with three-position switches (not included) and comes with stainless steel fasteners and a mounting bracket to ensure secure and stable installation. The adjustable shaft lengths provide flexibility to fit various arm configurations, making it a versatile choice for different boating needs.

Why Choose the MRV 12V Wiper Motor?

• Reliability: Built to perform consistently in the challenging conditions of marine environments.
• Durability: Corrosion-resistant materials ensure a long lifespan, reducing the need for frequent replacements.
• Flexibility: Adjustable sweep angles and multiple shaft lengths accommodate a wide range of windshield configurations.
• Ease of Installation: Comprehensive retail package and compact design make installation straightforward and hassle-free.

Upgrade your vessel’s windshield wipers with the MRV 12V Wiper Motor and enjoy clear visibility and dependable performance on every voyage.
