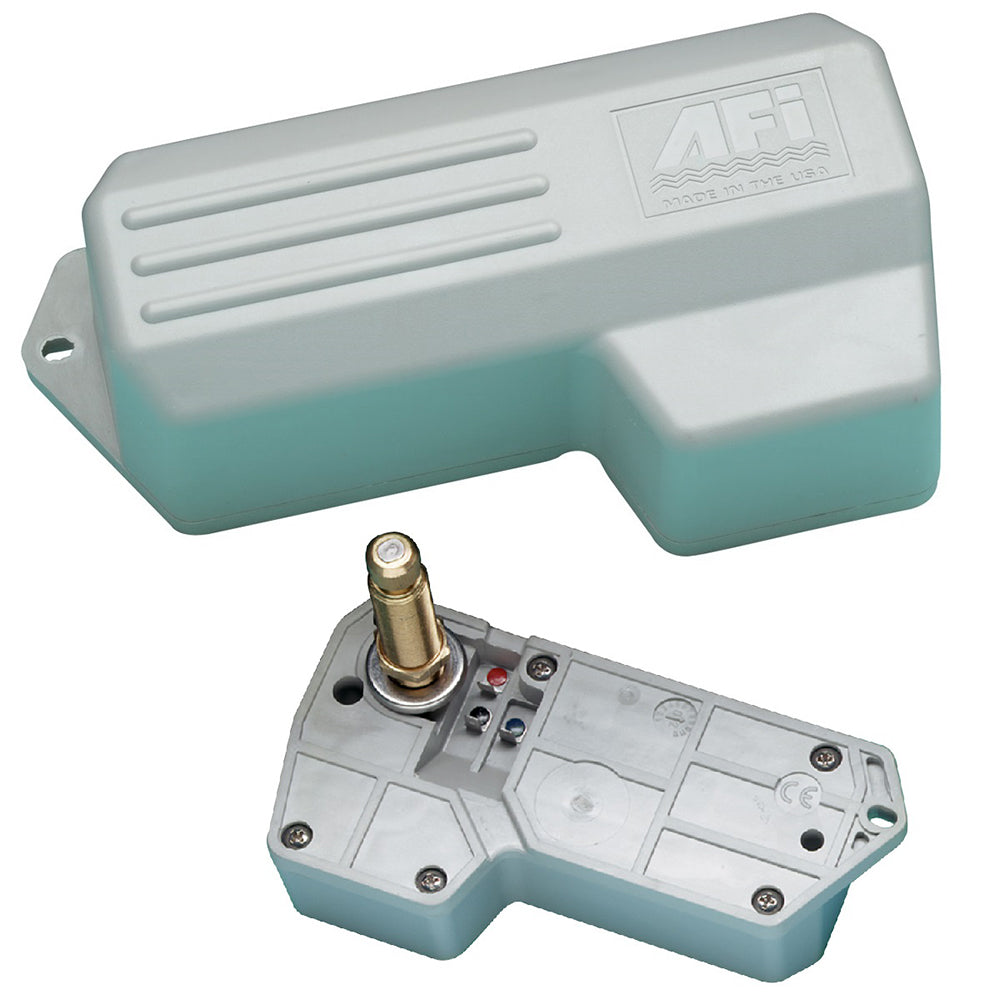

Marinco Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65 Sweep

The 1000 Series Waterproof Wiper Motor is engineered specifically for marine and boating applications, delivering reliable performance in harsh marine environments. Its robust construction and versatile sweep angles make it ideal for ensuring clear visibility in all weather conditions, enhancing safety and convenience on the water.

Premium Features for Marine Use

• Adjustable Sweep Angles: Factory pre-set to 80° and 110°, easily adjustable to 50°, 65°, 80°, or 110°, offering flexibility to match various windshield sizes and mounting positions.
• Durable Shaft: Equipped with a 0.625" (16 mm) diameter shaft ensuring a secure and stable connection with your wiper arms.
• Heavy-Duty 12V Motor: Designed to withstand the rigors of marine use, featuring an anti-rotation drive shaft for enhanced durability and reliability.
• Reliable Drive Mechanism: The knurled drive shaft and solid brass arm drive nut provide smooth and consistent wiper operation, reducing wear and tear.
• Coast to Park: Advanced coast-to-park functionality with adjustable right or left self-parking ensures that wipers return to an optimal position, protecting them from damage when not in use.
• Complete Retail Package: Includes a 5 amp fuse and holder, safeguarding your electrical system against potential overloads (note: on/off switch not included).
• RF Shielded Circuitry: Minimizes electrical interference, ensuring smooth and reliable performance even in electrically noisy marine environments.
• Lightweight Design: Weighing only 1.75 lbs, the motor is easy to install without adding unnecessary weight to your vessel.
• Versatile Shaft Lengths: Available in 1.5" and 2.5" shaft lengths, including a 0.5" knurled arm fitting, providing compatibility with a wide range of wiper arm setups.
• Compact Dimensions: Measuring approximately 6.625" L x 3.375" W x 2" D, the motor fits seamlessly into tight installation spaces.
• High Stall Torque: Delivers 55 in-lbs (63 kgf/cm; 6.2 Nm) of stall torque, ensuring reliable operation even under heavy windshield load.
• Efficient Power Consumption: Features a stall current of 9.8-10.0 amps and a no-load current of 0.8-1.2 amps, offering efficient power usage without compromising performance.

Technical Specifications

Parameter	Specification
Voltage	12V
Shaft Diameter	0.625" (16 mm)
Sweep Angle	Adjustable to 50°, 65°, 80°, or 110°
Shaft Lengths Available	1.5" and 2.5" (includes 0.5" length of knurled arm fitting)
Dimensions	6.625" L x 3.375" W x 2" D
Weight	1.75 lbs
Stall Torque	55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall Current	9.8-10.0 amps
No Load Current	0.8-1.2 amps
