Marinco Waterproof Wiper Motor 12V - 2.5" Shaft - 80 Sweep

Enhance the reliability and performance of your vessel’s windshield with our top-of-the-line Waterproof Wiper Motor, specifically engineered for marine and boating applications. Designed to withstand harsh marine environments, this robust motor ensures clear visibility in all weather conditions, providing you with safety and peace of mind on every voyage.

Product Overview

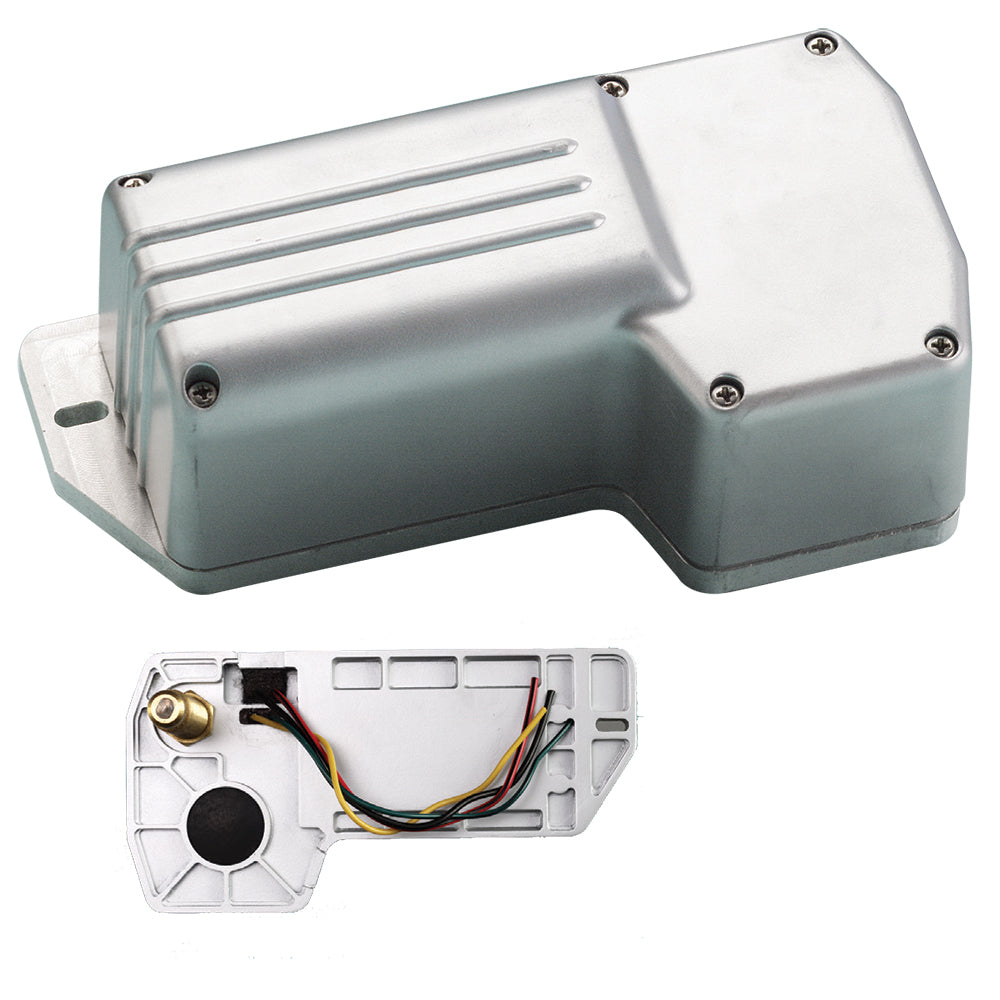

The Waterproof Wiper Motor operates efficiently with a fully sealed, powder-coated aluminum base and housing, ensuring longevity and resistance against saltwater corrosion. Compatible with both Deluxe and Premier wiper arm and blade combinations, this motor delivers smooth and consistent wiping performance, tailored to meet the demanding needs of marine environments.

Key Features

• Shaft Length Options: Available in three shaft lengths – 1.5", 2.5", and 3.5" (includes 0.5" knurled arm fitting)
• Sweep Angles: Factory pre-set to 80° or 110°, easily adjustable to 45° or 60° for customized coverage
• Durable Construction: Chrome-plated solid brass knurled drive nut paired with brass and stainless steel driveshaft for enhanced durability
• Dual-Speed Operation: Two-speed motor allows for flexible wiping speeds to suit different weather conditions
• High-Quality Wiring: Sealed 6" wire leads with 16 AWG for reliable electrical connections
• Self-Parking: Adjustable to self-park on either the right or left side, ensuring optimal positioning
• Shaft Specifications: 0.625" diameter shaft (16 mm) provides a sturdy connection
• Voltage Options: Available in both 12V and 24V models to match your boat’s electrical system
• Coast to Park: Ensures the wipers return to the park position smoothly after operation
• RF Shielded: Circuitry shielded against radio frequency interference for uninterrupted performance
• Included Components: Retail version comes with a 5 amp fuse and holder (operating switch not included)

Technical Specifications

Specification	Details
Dimensions	7.75" L x 4" W x 2.75" D
Stall Torque	109 in-lbs (125 kgf/cm; 12.3 Nm)
Stall Current	11.5-13.0 amps
No Load Current	0.5-1.2 amps
Replacement	Compatible with AFI 2000 motor

Why Choose Our Waterproof Wiper Motor?

Marine environments demand equipment that can endure constant exposure to moisture, salt, and varying weather conditions. Our Waterproof Wiper Motor is built to last, offering superior protection and performance. The fully sealed design prevents water ingress, while the powder-coated aluminum construction resists corrosion and rust.

Whether you’re navigating through heavy rain or intense sunlight, our wiper motor ensures your windshield remains clear, enhancing visibility and safety. Its adjustable features provide flexibility to meet your specific needs, making it an ideal choice for a wide range of marine vessels.

Installation and Compatibility

Designed for easy installation, this wiper motor seamlessly integrates with both the 22" Deluxe and 20" Premier wiper arm and blade combinations. The multiple shaft length options and self-parking adjustments allow for a customized fit, ensuring optimal performance on your boat.

Please note that the operating switch is not included. Ensure your boat’s electrical system matches the voltage requirements (12V or 24V) for optimal functionality.

Package Includes

• Waterproof Wiper Motor
• Chrome-Plated Solid Brass Knurled Drive Nut
• 5 Amp Fuse and Holder
• Sealed 6" Wire Leads (16 AWG)

Upgrade Your Marine Wipers Today

Invest in our Waterproof Wiper Motor to ensure reliable, high-performance windshield wiping for your marine vessel. Enjoy clear visibility and enhanced safety on every trip with a motor designed to meet the rigorous demands of boating life.
