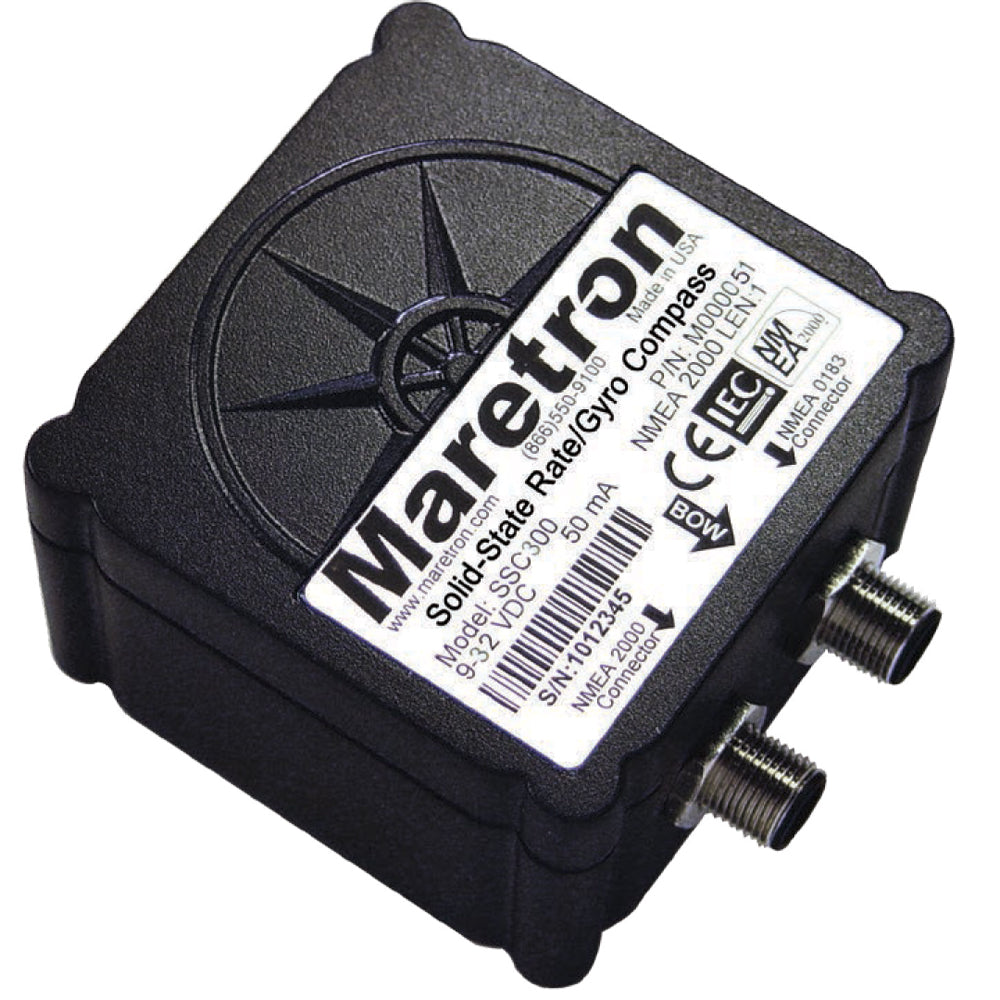

Maretron Solid-State Rate/Gyro Compass w/o Cables

The Maretron SSC300 is a cutting-edge solid-state rate gyro compass designed specifically for marine applications. Utilizing the second generation of Maretron's award-winning compass technology, the SSC300 offers unparalleled heading and attitude accuracy without the need for cumbersome cables, making it an essential component for modern navigation systems on boats and yachts.

Advanced Compass Technology

The SSC300 integrates a micromachined 3-axis rate gyro with a 3-axis accelerometer, processed through sophisticated stabilization algorithms. This combination ensures precise and reliable heading information at a rate of ten updates per second, along with accurate vessel attitude readings, including pitch and roll, once per second. The compass maintains better than 0.7° heading accuracy in dynamic conditions with up to 45° of roll and pitch, and better than 1° accuracy in static conditions. These features make the SSC300 an ideal heading sensor for autopilot and radar overlay applications.

Seamless Connectivity

Certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface, the SSC300 offers versatile connectivity options. It can be directly connected to any NMEA 2000 network and, with the optional NMEA 0183 cable accessory, interfaces effortlessly with navigational software, chart plotters, autopilots, and dedicated instrument displays. This includes integration with Maretron’s own systems such as the N2KView vessel monitoring system and the DSM150/DSM250 color graphics displays.

Precision Calibration and Enhanced Accuracy

Each SSC300 unit is factory calibrated to ensure maximum accuracy right out of the box. The compass can also be automatically calibrated for deviation, ensuring consistent performance over time. Advanced digital filtering of the 3-axis magnetometer, accelerometer, and rate gyro further enhances dynamic accuracy, providing stable and reliable readings even in challenging marine environments with hard turns or rough seas.

Key Features

Feature	Specification
Heading Accuracy (Static Conditions)	Better than 0.7°
Heading Accuracy (Dynamic Conditions)	Better than 1.5°
Rate of Turn Accuracy	Better than 1°/second
Pitch/Roll Accuracy	Better than 1°
Sensors	3-axis magnetometer, 3-axis rate gyro, 3-axis accelerometer
Data Outputs	NMEA 0183 and NMEA 2000 simultaneously
Enclosure	IP67 Waterproof

Ideal Applications

• Marine Navigation Systems
• Autopilot Integration
• Radar Stabilization
• Satellite Antenna Stabilization
• Swing Meter Applications
