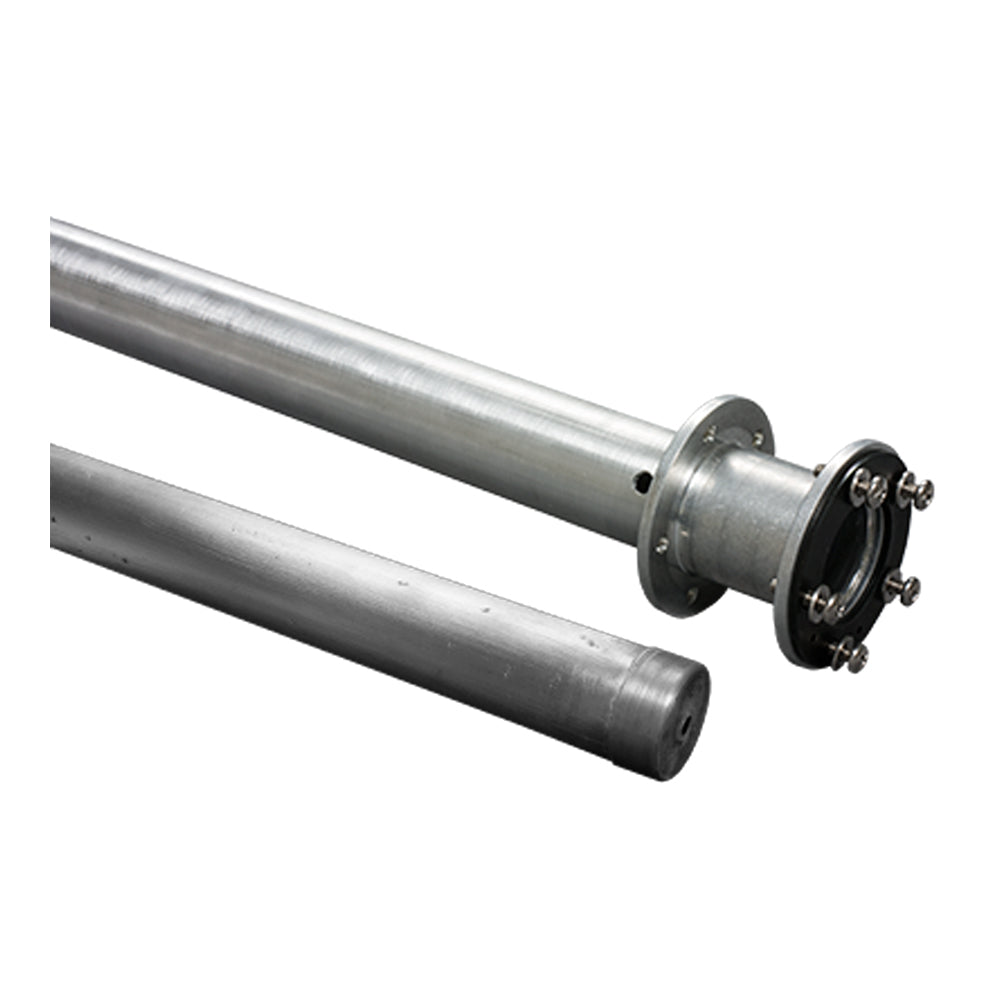

Maretron SAE 5-Bolt Pattern Focus Tube w/Dead Band Eliminator

Enhance the performance of your ultrasonic tank level monitors with the SAE 5-Bolt Pattern Focus Tube with Dead Band Eliminator. Specifically designed for marine and boating applications, this focus tube ensures accurate level measurements even in challenging conditions.

Key Features

• Enhanced Pitch and Roll Tolerance: Allows the TLM100/TLM150 sensors to operate effectively on vessels with non-displacement hulls, accommodating up to 15° of pitch or roll compared to the standard 6°.
• Dead Band Eliminator: Elevates the TLM100/TLM150 sensor by 2" above the tank's top, enabling accurate measurements up to the tank's full capacity and removing the previous 2" deadband.
• SAE 5-Bolt Pattern: Ensures secure and compatible mounting for a variety of marine tanks.

Benefits for Marine Applications

• Reliable Level Monitoring: Maintain precise fluid level readings even when your boat experiences significant movement.
• Optimized for Non-Displacement Hulls: Perfect for modern marine vessels, providing flexibility and accuracy in volatile conditions.
• Easy Installation: Compatible with TLM100/TLM150 monitors, facilitating straightforward setup on your marine tank.

Technical Specifications

Compatibility	TLM100, TLM150 Ultrasonic Tank Level Monitors
Pitch/Roll Tolerance	Up to 15°
Sensor Elevation	2" above tank top
Mounting Pattern	SAE 5-Bolt

Installation Instructions

1. Remove the existing sensor from your tank.
2. Mount the focus tube using the provided SAE 5-bolt pattern to ensure a secure fit.
3. Attach the TLM100/TLM150 monitor to the focus tube, ensuring it sits 2" above the tank's top.
4. Calibrate the sensor according to your vessel's specifications for optimal performance.

Why Choose Our Focus Tube?

Designed with marine enthusiasts in mind, our focus tube enhances the reliability and accuracy of your tank level monitoring system. Whether you're navigating calm waters or encountering rough seas, trust our focus tube to provide consistent and precise measurements.
