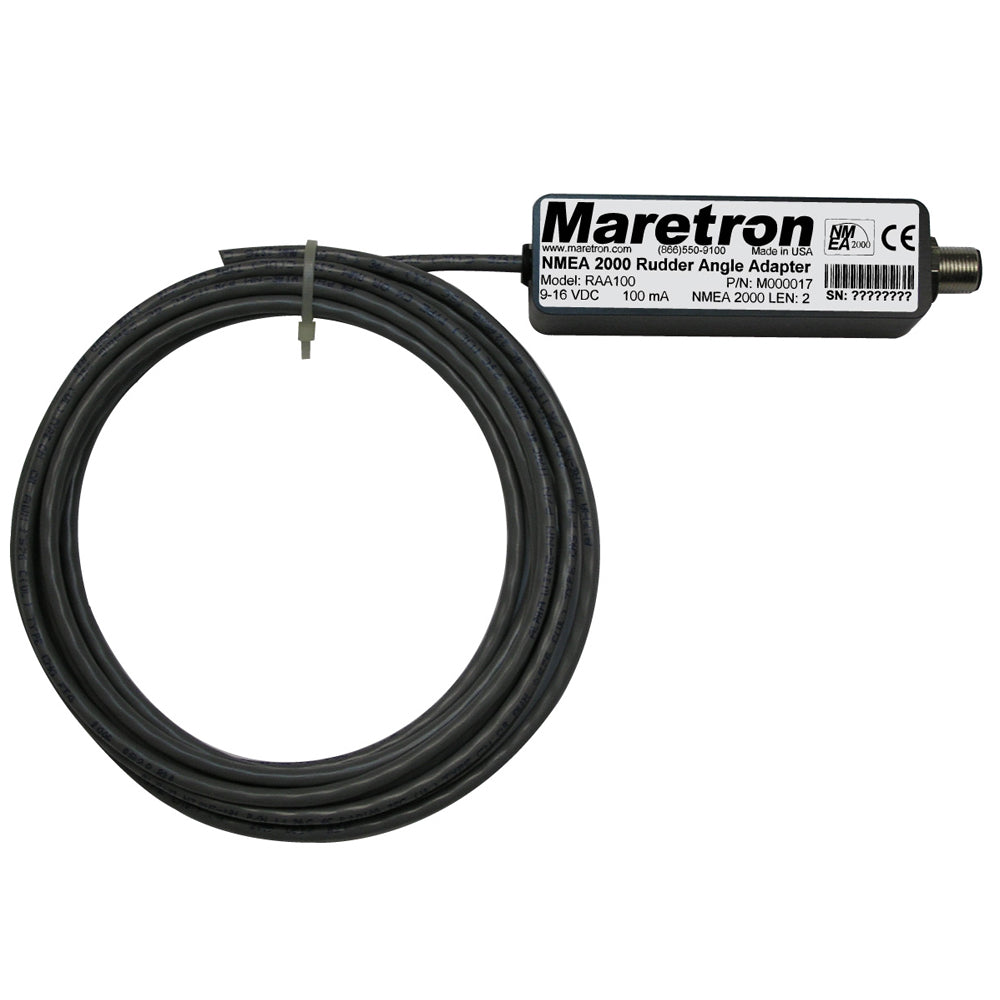

Maretron RAA100 Rudder Angle Adapter

The RAA100 NMEA 2000® Rudder Angle Adapter seamlessly integrates your existing resistive rudder angle senders into the NMEA 2000® network, enabling real-time monitoring of your vessel's rudder position across any compatible display on board, such as the Maretron DSM200.

Product Overview

The RAA100 is designed to bridge the gap between traditional resistive rudder angle senders and modern NMEA 2000® networks. Whether you're upgrading your marine electronics or maintaining your current setup, the RAA100 offers a reliable solution for accurate rudder angle monitoring.

Key Features

• NMEA 2000® Integration: Connects resistive rudder angle senders to the NMEA 2000® network for centralized monitoring.
• Wide Compatibility: Supports both American standard (240-33 ohm) and European standard (10-180 ohm) resistive senders.
• Adjustable Calibration: Calibrates for any resistance between 0 and 300 ohms, ensuring precise measurements.
• Dual Display Support: Compatible with existing analog gauges while providing digital networked information.
• Easy Installation: Simple setup process allows for quick integration into your vessel’s electronic system.

Compatibility

The RAA100 adapter is versatile and compatible with a wide range of rudder angle senders:

Standard	Resistance Range
American Standard	240-33 ohms
European Standard	10-180 ohms
Custom Calibration	0-300 ohms

Seamless Integration with Analog Gauges

The RAA100 allows you to retain your existing analog gauges, providing the best of both worlds. Enjoy the traditional display while benefiting from the enhanced functionality of a digitally networked system.

Technical Specifications

• Input Resistance: 0-300 ohms (calibratable)
• Network Compatibility: NMEA 2000®
• Operating Temperature: -40°C to +85°C
• Dimensions: [Insert Dimensions Here]
• Power Supply: 12V DC

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
