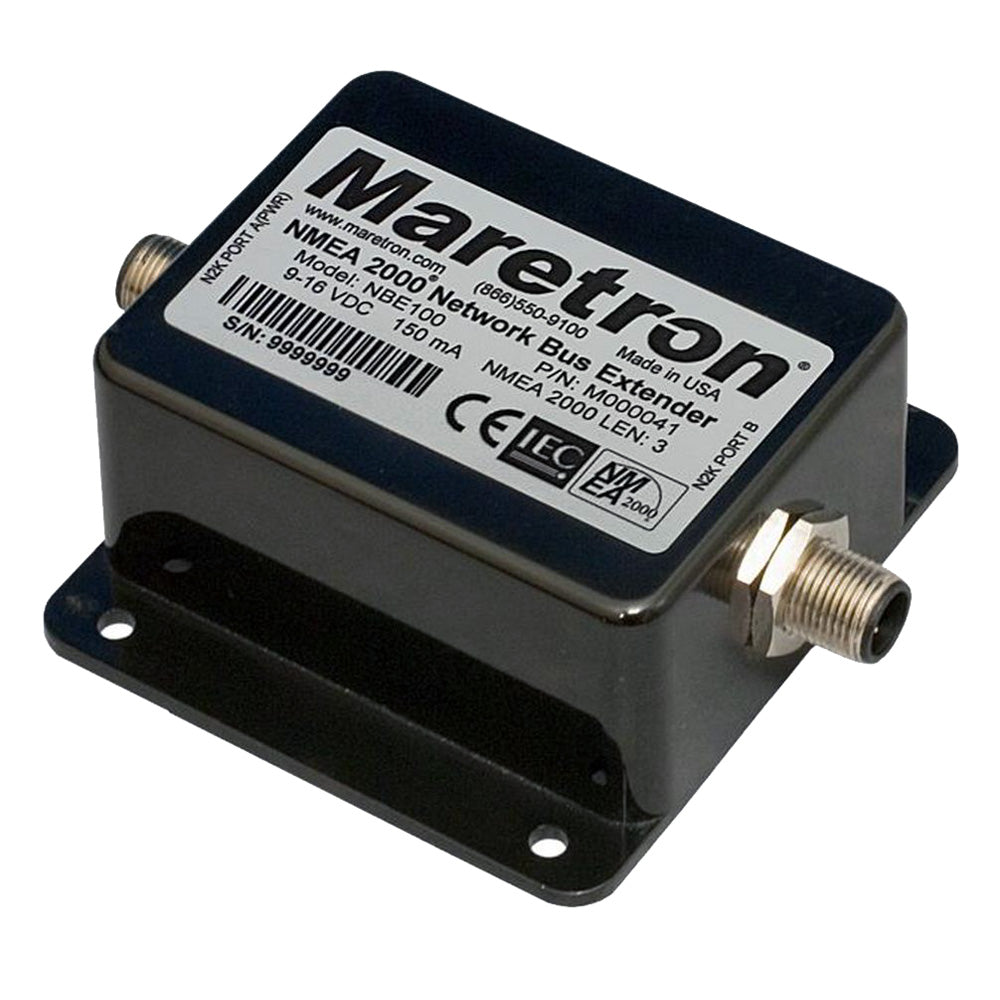

Maretron NMEA 2000 Network Bus Extender

Maretron's Network Bus Extender (NBE100-01) is an essential solution for marine enthusiasts looking to expand and optimize their NMEA 2000 networks. Whether you're upgrading your vessel's electronics or designing a complex boat network, the NBE100 ensures seamless communication and reliability across all your marine devices.

Product Overview

The NBE100 Network Bus Extender allows you to significantly extend the capacity and reach of your NMEA 2000 network. By addressing common limitations such as node count, trunk length, and cumulative drop length, this extender ensures your marine electronics operate efficiently and without interruption. Ideal for larger vessels or those with extensive electronic setups, the NBE100 enhances network stability and performance.

Key Features

• Segments a single large NMEA 2000 network into two smaller electrical segments
• Exceeds the 50-node limitation on a standard NMEA 2000 network
• Extends the maximum trunk length beyond 200 meters
• Increases cumulative drop length beyond 78 meters
• Enables all NMEA 2000 devices to operate seamlessly as a single logical network
• Priority-based message routing ensures critical messages are transmitted first
• Optical isolation of network segments enhances signal integrity and reliability

Specifications

Data Interface	NMEA 2000
Dimensions	1"H x 4"W x 6"L
Weight	0.7 lbs
UPC	873804003078

Compliance

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit P65Warnings.ca.gov.

Support and Documentation

For detailed installation instructions and operational guidelines, please refer to the Owner's Manual (PDF).
