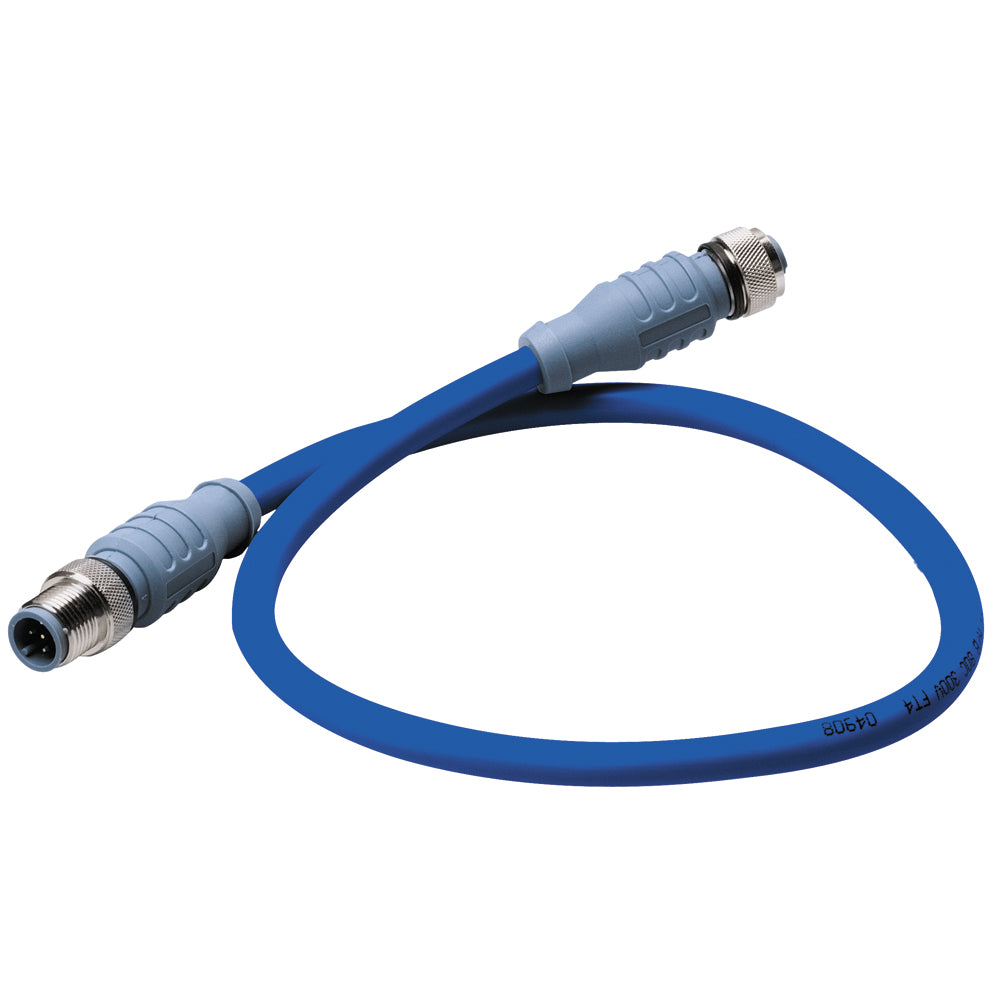

Maretron Mid Double-Ended Cordset - 5 Meter - Blue

The Maretron Mid Double-Ended Cordset - 5 M Blue is an essential component for marine applications, providing reliable and high-performance connectivity between your boat's electrical systems. Designed specifically for the harsh marine environment, this cordset ensures seamless communication and power transmission, enhancing your vessel's functionality and safety.

Mechanical Specifications

• Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR / Blue-Gray
• Contact Material/Plating: Brass / Gold
• Coupling Nut Material/Plating: Brass / Nickel
• Connector Outside Diameter: 0.59"

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Details

• Outer Jacket Material/Color: PVC / Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors:
  • 2x16 AWG (1.29 mm)
  • Data: 2x20 AWG (0.81 mm)
  • Drain Wire: 20 AWG (0.81 mm)
• Shielding (3 Levels):
  • Foil (Overall)
  • Foil (Power Pair)
  • Foil (Data Pair)

Environmental Ratings

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• Cable UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• Cable CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA Approved: NMEA 2000
• IEC Compliance: IEC 61162-3

Product Specifications

Specification	Details
Cable Length	16' (Feet)
Box Dimensions	1" H x 9" W x 10" L
Weight	1.2 lbs
UPC	873804001944
