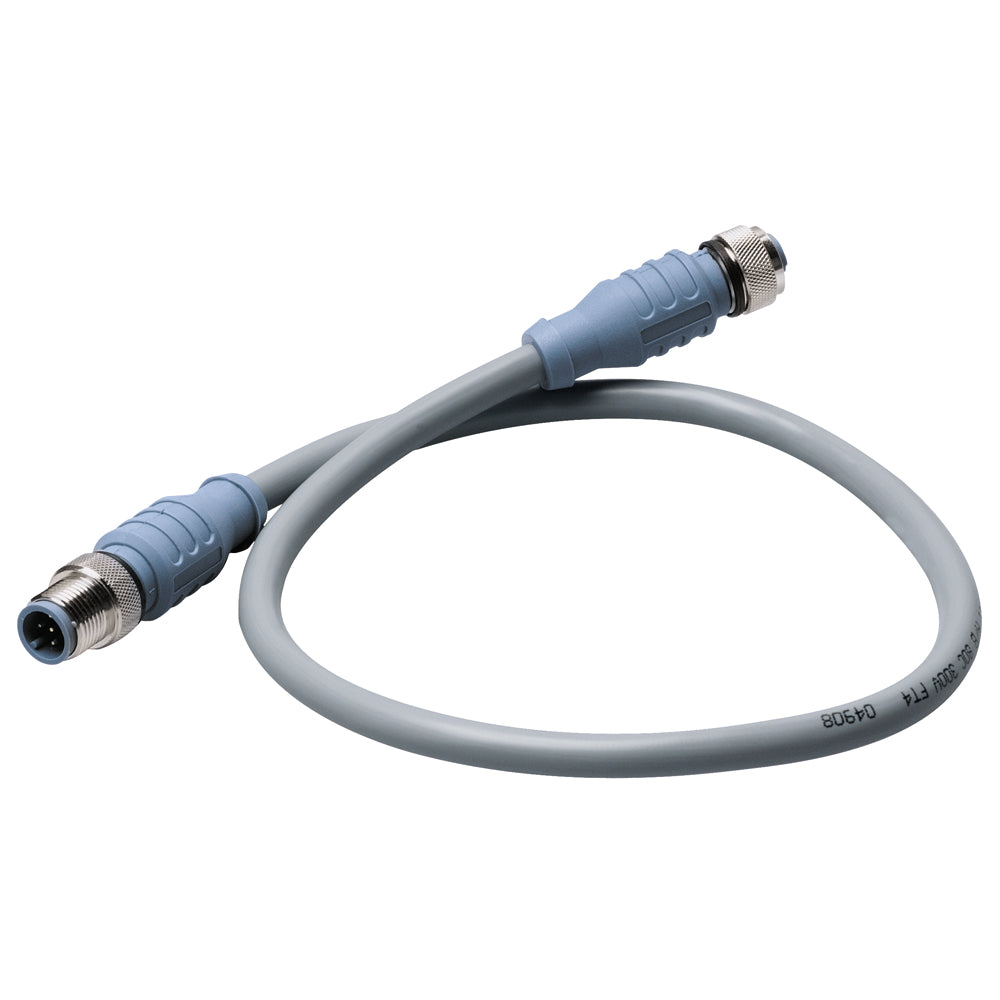

Maretron Mid Double-Ended Cordset - 3 Meter - Gray

The Maretron Mid Double-Ended Cordset - 3 M Gray is a robust and reliable connector designed specifically for marine and boating applications. Engineered to deliver seamless connectivity for your onboard electronics and networking systems, this cordset ensures optimal performance even in the harshest marine environments.

Mechanical Specifications

Component	Material / Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat / Plating	Brass / Gold
Coupling Nut Mat / Plating	Brass / Nickel
Connector Outside Diameter	0.59″

Electrical Specifications

Parameter	Value
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Specifications

Component	Details
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding	Alum/Polyester Foil (Overall) Foil (Power Pair) Foil (Data Pair)

Environmental Specifications

Parameter	Value
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications and Approvals

• UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

Product Specifications

• Cable Length: 10 feet
• Box Dimensions: 1″ H x 6″ W x 8″ L
• Weight: 0.8 lbs
• UPC: 873804001791
