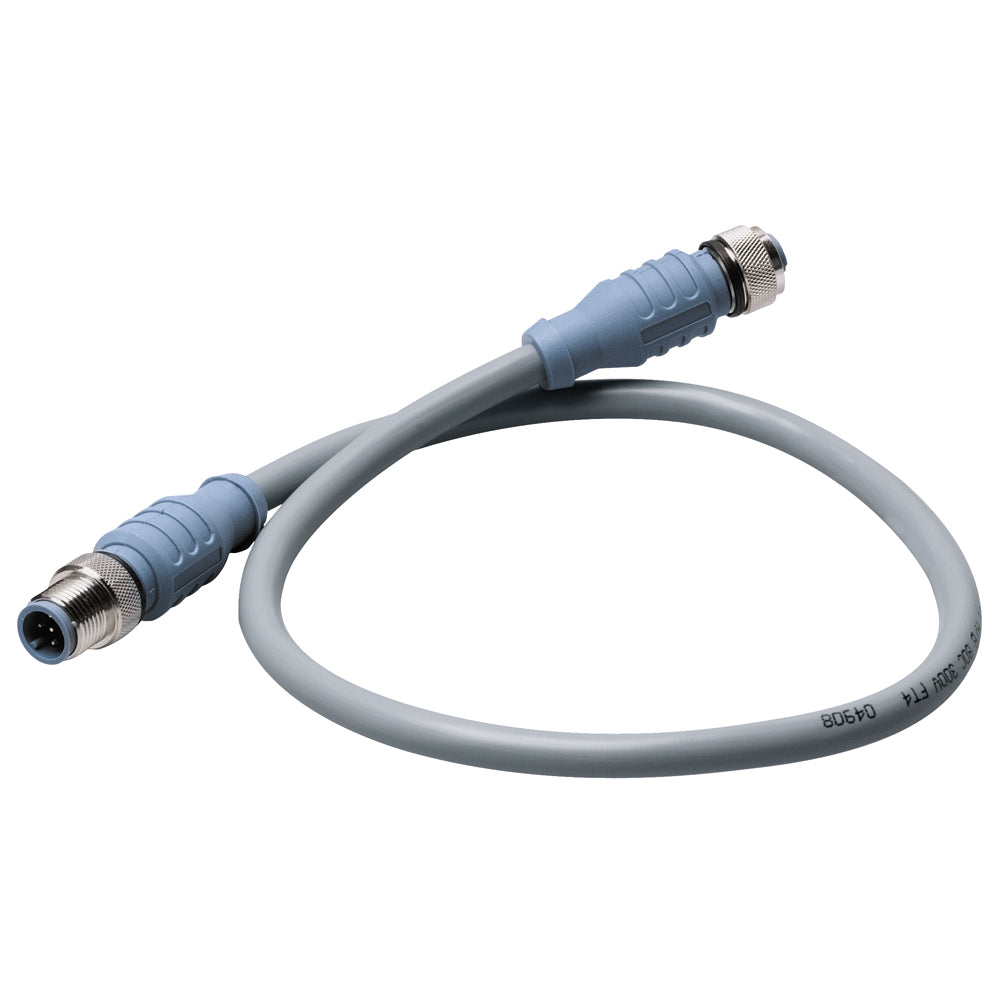

Maretron Mid Double-Ended Cordset - 2 Meter - Gray

The Maretron Mid Double-Ended Cordset - 2 M Gray is an essential component for marine and boating applications, ensuring reliable connectivity between your Maretron devices. Designed with durability and performance in mind, this cordset provides robust mechanical and electrical specifications to withstand the demanding marine environment.

Mechanical Specifications

Component	Material/Color
Contact Carrier Mat	Thermoplastic PUR/Blue-Gray
Molded Body Mat	Thermoplastic PUR/Blue-Gray
Contact Mat/Plating	Brass/Gold
Coupling Nut Mat/Plating	Brass/Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Rating
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Details

Feature	Description
Outer Jacket Material/Color	PVC/Gray
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG Data 2x20 (0.81mm) AWG 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels)	Alum/Polyester Foil (Overall) Foil (Power Pair) Foil (Data Pair)

Environmental Specifications

Feature	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Approvals and Certifications

• Cable:
  • UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

Product Specifications

Specification	Details
Cable Length	6 feet
Box Dimensions	1" H x 7" W x 9" L
Weight	0.5 lbs
UPC	873804001784

Why Choose Maretron Mid Double-Ended Cordset?

Designed specifically for marine environments, the Maretron Mid Double-Ended Cordset offers exceptional durability and performance. Its robust construction with high-quality materials ensures long-lasting connectivity, while the superior shielding provides reliable data transmission even in electrically noisy environments. Whether you're upgrading your boat's instrumentation or installing new Maretron devices, this cordset is the perfect choice for seamless integration and dependable operation.

Installation and Usage

Installing the Maretron Mid Double-Ended Cordset is straightforward, thanks to its user-friendly design and compatible connectors. Ensure that both ends are securely connected to your Maretron devices, and route the cable away from potential hazards to maintain optimal performance. Refer to the manufacturer's installation guide for detailed instructions and best practices.

Customer Support

At [Your Store Name], we are committed to providing exceptional customer service. If you have any questions or need assistance with your Maretron Cordset, our knowledgeable support team is here to help. Contact us via [contact information] for personalized support and expert advice.
