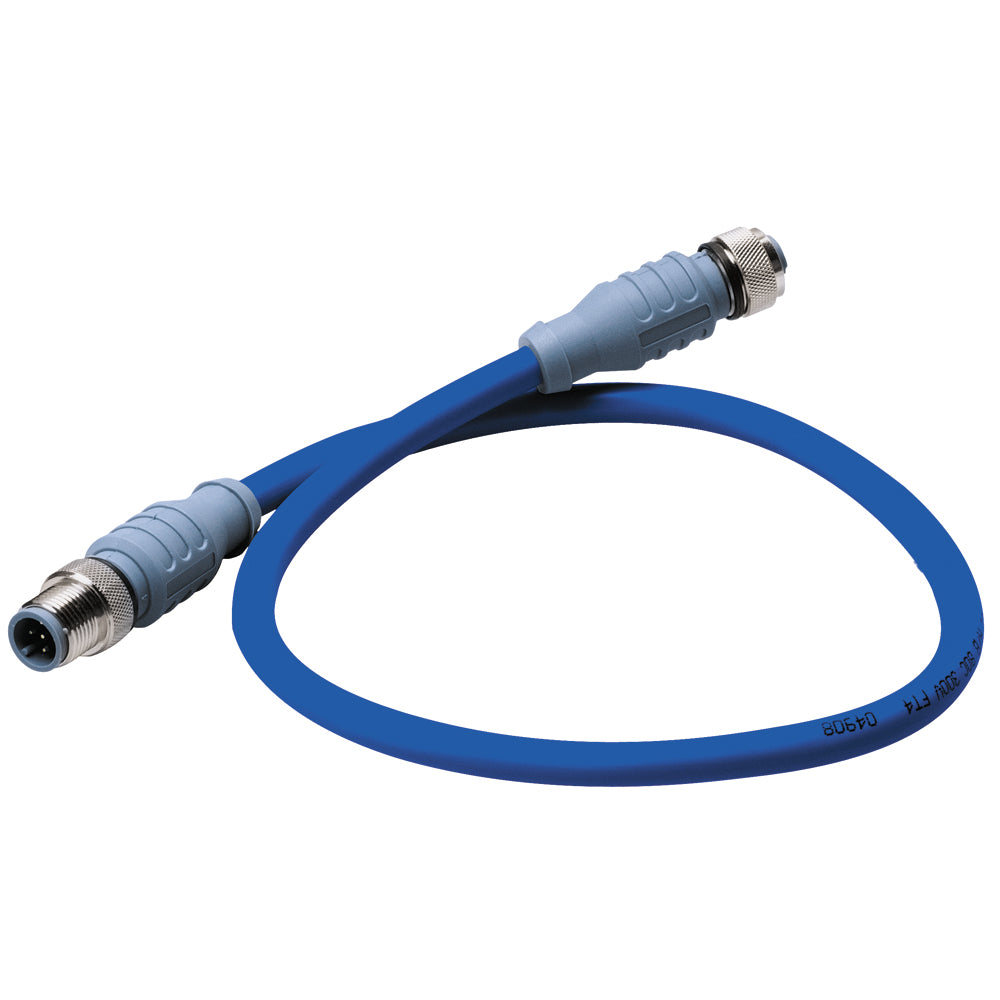

Maretron Mid Double-Ended Cordset - 2 Meter - Blue

The Maretron Mid Double-Ended Cordset - 2 M Blue is an essential component for marine and boating applications, providing reliable connectivity between your vessel’s electronic devices and the NMEA 2000 network. Engineered for durability and performance in harsh marine environments, this cordset ensures seamless communication and power transmission, enhancing your onboard systems' efficiency and reliability.

Features

• Double-ended design for versatile connectivity
• High-quality Thermoplastic PUR construction in Blue-Gray
• Gold-plated brass contacts ensure optimal electrical performance
• Robust shielding with three levels for superior protection against interference
• Approved by NMEA 2000 and compliant with IEC standards
• Flexible yet durable cable suited for demanding marine environments

Mechanical Specifications

Component	Material	Color/Plating
Contact Carrier Mat	Thermoplastic PUR	Blue-Gray
Molded Body Mat	Thermoplastic PUR	Blue-Gray
Contact Mat	Brass	Gold
Coupling Nut Mat	Brass	Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Specification
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Specifications

Attribute	Details
Outer Jacket Material	PVC
Outer Jacket Color	Gray
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG Data 2x20 (0.81mm) AWG 20 (0.81mm) AWG Drain Wire
Shielding	Foil (Overall) Foil (Power Pair) Foil (Data Pair)

Environmental Specifications

Feature	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications and Approvals

• UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA 2000 Approved
• IEC 61162-3 Compliant

Product Specifications

Attribute	Details
Cable Length	6 feet
Box Dimensions	1" H x 4" W x 6" L
Weight	0.6 lbs
UPC	873804001913
