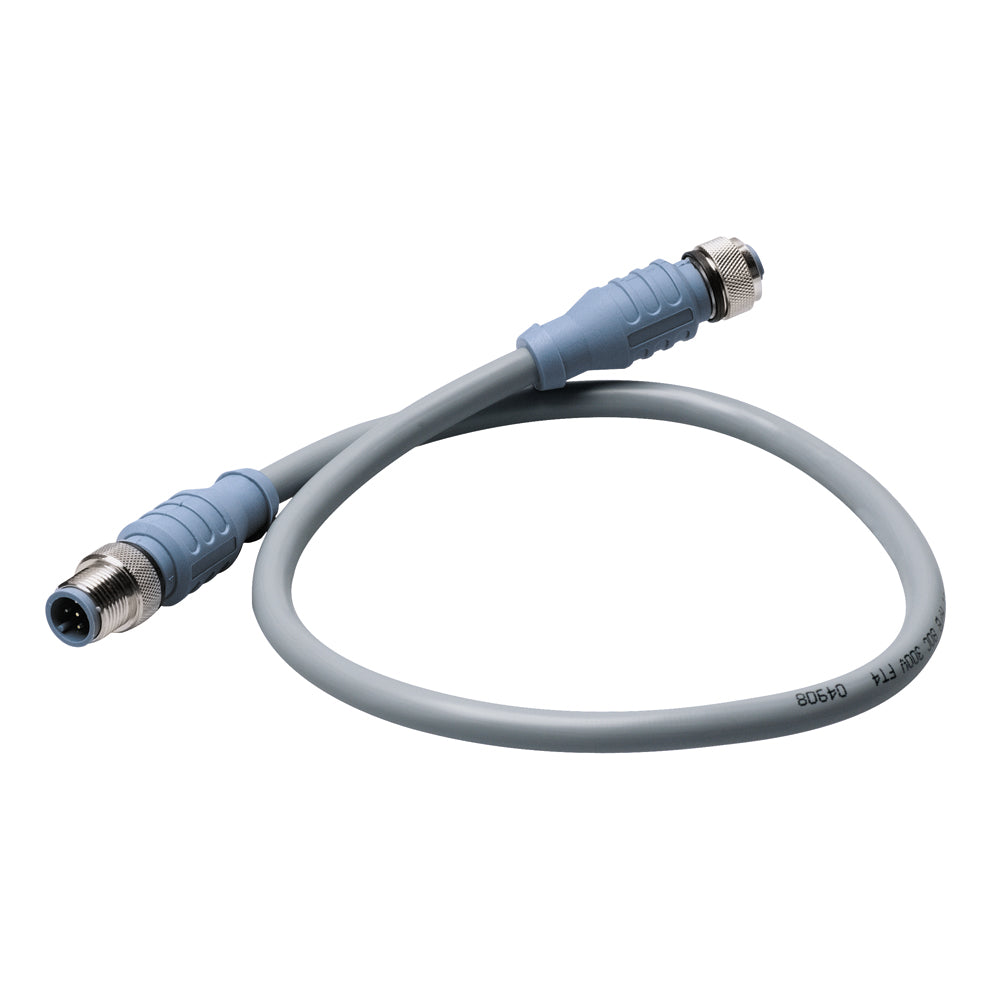

Maretron Micro Double-Ended Cordset - 8M

Enhance your marine electrical system with our premium NMEA 2000 approved cable assembly, engineered for exceptional durability and reliable performance in the demanding conditions of the marine environment. Whether you're upgrading your boat's navigation system or ensuring seamless connectivity between your marine electronics, this cable provides the quality and certification you need for peace of mind on the water.

Mechanical Specifications

Component	Material/Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat Plating	Brass / Gold
Coupling Nut Plating	Brass / Nickel
Connector Outside Diameter	0.59”

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Construction

Feature	Specification
Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4 x 22 AWG, 22 AWG Drain Wire
Shielding (3 Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Resistance

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• UL Certifications: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• CSA Certifications: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Product Specifications

• Cable Length: 26 feet
• Box Dimensions: 1" H x 7" W x 8" L
• Weight: 1.1 lbs
• UPC: 873804001586
