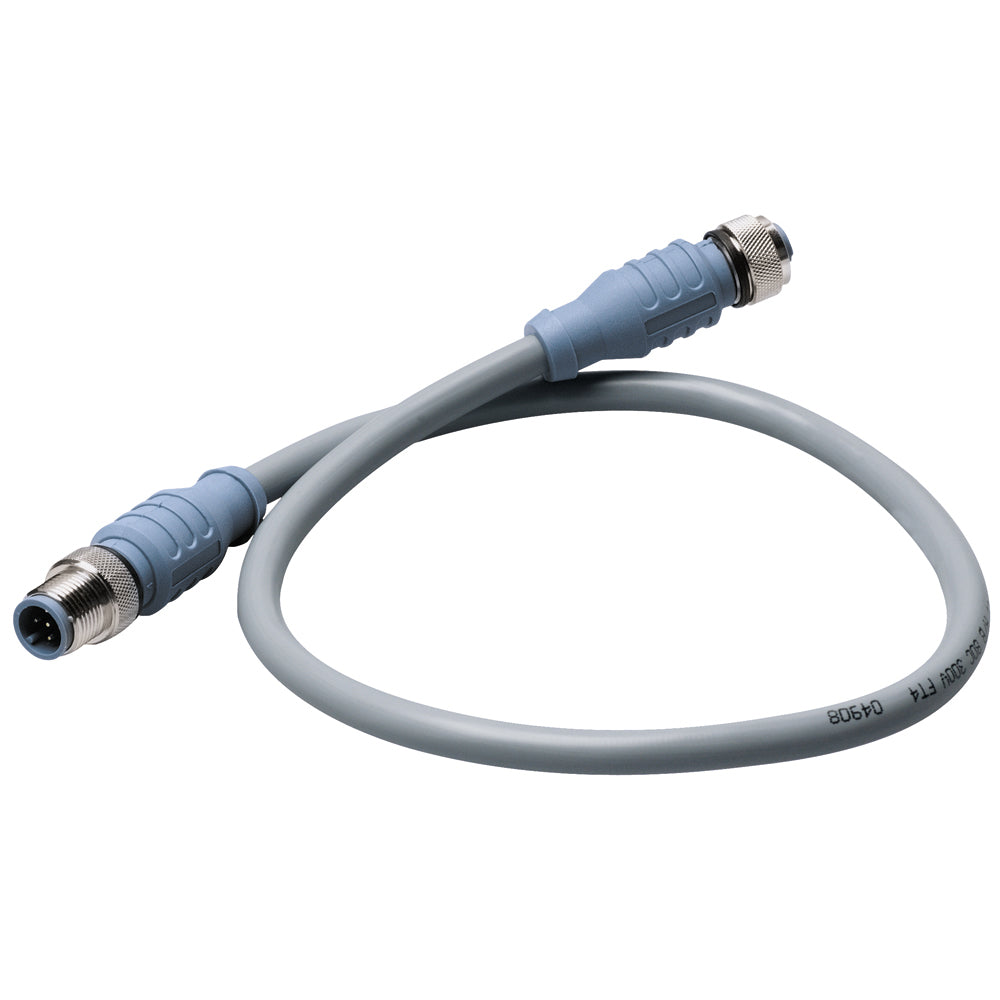

Maretron Micro Double-Ended Cordset - 6 Meter

Enhance your marine electrical systems with our premium connector, engineered for durability and reliable performance in demanding marine environments. Whether you're upgrading your boat's wiring or installing a new electrical setup, this connector ensures secure connections and optimal functionality, meeting the highest industry standards.

Product Features

• Robust Thermoplastic PUR construction for longevity
• Corrosion-resistant brass plating in gold and nickel finishes
• Compact design with a 0.59" connector outside diameter
• Compatible with NMEA 2000 data interfaces

Mechanical Specifications

Feature	Details
Contact Carrier Material/Color	Thermoplastic PUR / Blue-Gray
Molded Body Material/Color	Thermoplastic PUR / Blue-Gray
Contact Mat/Plating	Brass / Gold
Coupling Nut Mat/Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Value
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Specifications

Feature	Details
Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4 x 22 AWG, 22 AWG Drain Wire
Shielding	FOIL (Overall) FOIL (Power Pair) FOIL (Data Pair)

Environmental Ratings

Aspect	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications and Approvals

• UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Specifications

Specification	Details
Cable Length	20'
Data Interface	NMEA 2000
Box Dimensions	2" H x 7" W x 7" L
Weight	1.05 lbs
UPC	873804001562
