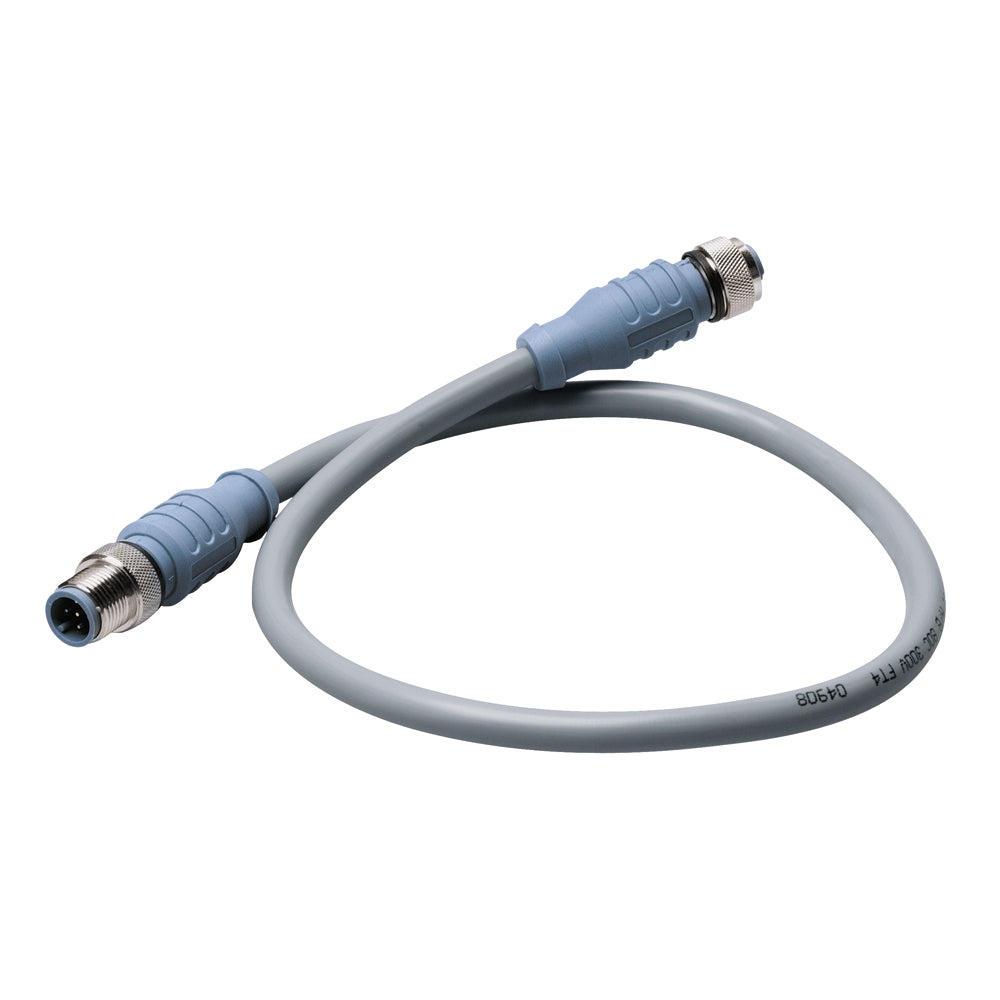

Maretron Micro Double-Ended Cordset 5 Meter

Enhance your marine electrical systems with our high-performance connector, specifically designed to withstand the harsh conditions of boating environments. Engineered for reliability and durability, this connector ensures seamless power and data transmission, keeping your vessel's systems running smoothly.

Mechanical Specifications

Component	Material	Color/Plating
Contact Carrier Mat	Thermoplastic PUR	Blue-Gray
Molded Body Mat	Thermoplastic PUR	Blue-Gray
Contact Mat	Brass	Gold
Coupling Nut Mat	Brass	Nickel
Connector Outside Diameter	0.59”

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Features

Specification	Details
Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Protection

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Certifications and Approvals

• UL Certifications: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• CSA Certifications: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Product Specifications

• Cable Length: 16' (Feet)
• Box Dimensions: 1" H x 6" W x 7" L
• Weight: 0.8 lbs
• UPC: 873804001555
