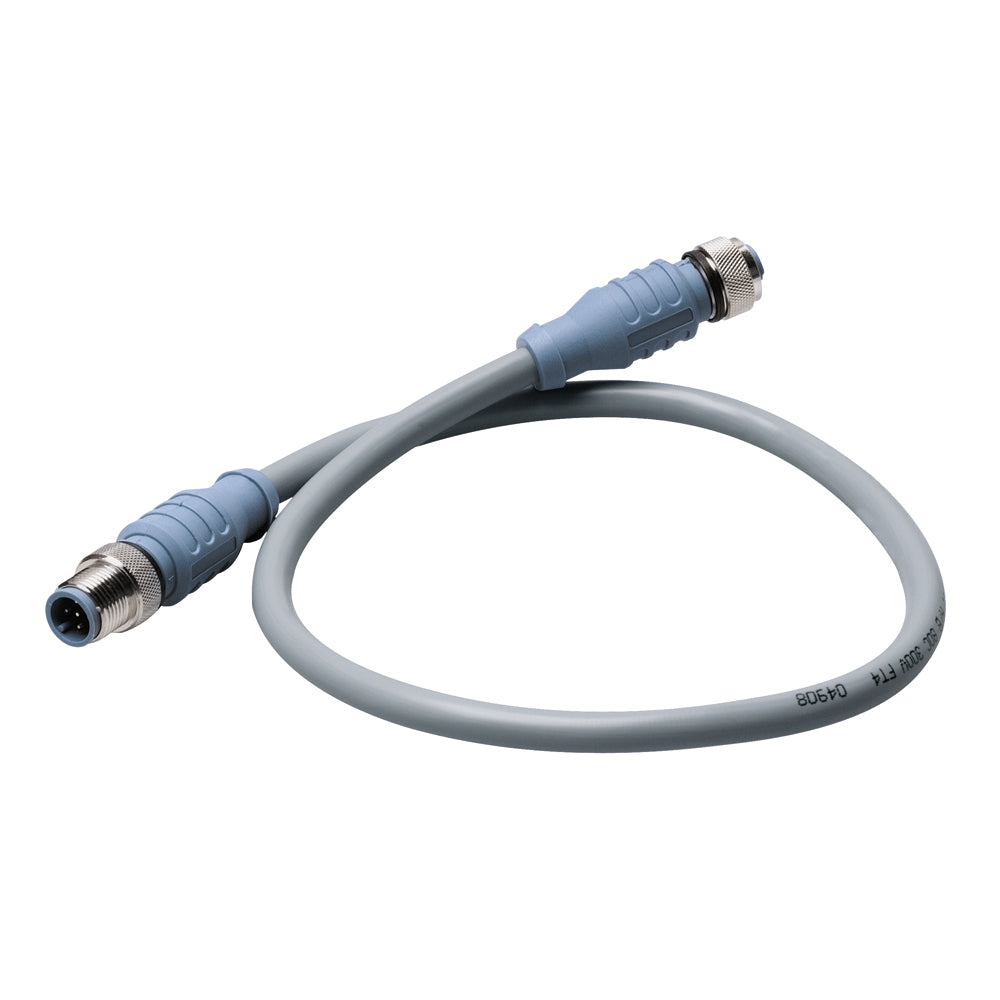

Maretron Micro Double-Ended Cordset - 4 Meter

Enhance your marine electrical system with our high-performance connector, designed specifically for the demanding conditions of boating and marine environments. Engineered for durability and reliability, this connector ensures seamless power and data transmission, keeping your vessel’s systems running smoothly.

Product Features

• Constructed with Thermoplastic PUR for exceptional resistance to harsh marine conditions.
• Gold and Nickel plating for superior corrosion resistance and reliable electrical connections.
• Robust shielding with three levels of FOIL to prevent electromagnetic interference.
• IEC IP68 and NEMA 1,3,4,6P protection classes for maximum environmental protection.
• Approved by NMEA 2000 standards, ensuring compatibility with marine electronics.

Mechanical Specifications

Component	Material / Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat Plating	Brass / Gold
Coupling Nut Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Specifications

Attribute	Details
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4x22 AWG, 22 AWG Drain Wire
Shielding (3 Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Ratings

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Approvals

• UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Specifications

Attribute	Details
Cable Length	13 feet
Box Dimensions	1" H x 7" W x 7" L
Weight	0.65 lbs
UPC	786788837105
