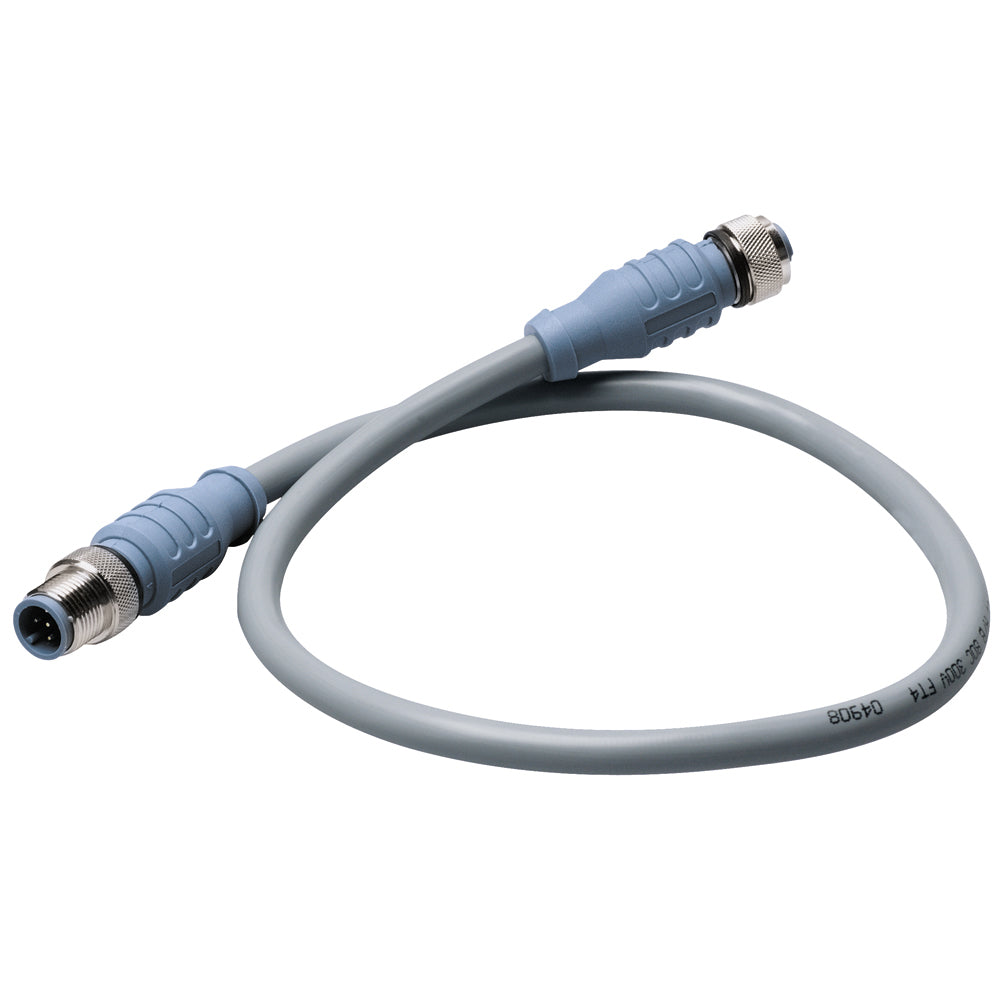

Maretron Micro Double-Ended Cordset - 3M

The 3M Micro Double-Ended Cordset is a reliable and versatile connection solution tailored for marine and boating applications. Engineered for durability and high performance, this cordset ensures seamless connectivity in harsh marine environments, providing both mechanical strength and superior electrical performance to keep your vessel's systems running smoothly.

Mechanical Specifications

• Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR / Blue-Gray
• Contact Plating: Brass / Gold
• Coupling Nut Plating: Brass / Nickel
• Connector Outside Diameter: 0.59"

Electrical Specifications

Feature	Details
Current Rating	4.0 Amps
Voltage Rating	250 V
Cable Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4 x 22 AWG, 22 AWG Drain Wire
Shielding (3 Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Specifications

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)
• Approvals:
  • UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
  • NMEA: NMEA 2000 Approved

Product Specifications

Specification	Details
Cable Length	10 Feet
Data Interface	NMEA 2000
Box Dimensions	1" H x 6" W x 8" L
Weight	0.55 lbs
UPC	873804001531

# Specifications - Cable Length (Feet): 10' - Data Interface: NMEA 2000 - Box Dimensions: 1" H x 6" W x 8" L - Weight: 0.55 lbs - UPC: 873804001531
