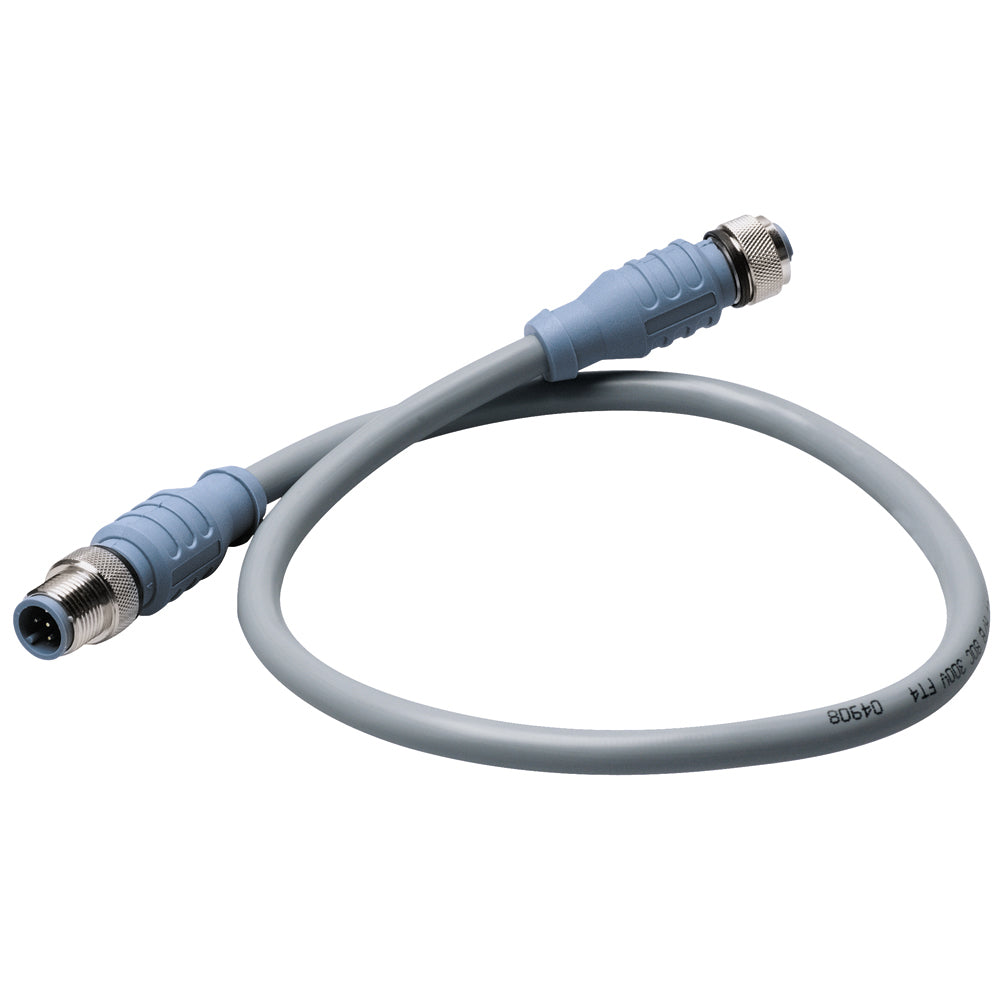

Maretron Micro Double-Ended Cordset - 10 Meter

Enhance your marine electronics setup with our high-performance NMEA 2000 cable, designed specifically for the demanding environments of boating and marine applications. Engineered for reliability and durability, this cable ensures seamless data communication and power transmission, keeping your vessel's systems running smoothly.

Key Features

• Data Interface: NMEA 2000
• Cable Length: 33 feet
• Box Dimensions: 3" H x 7" W x 7" L
• Weight: 1.5 lbs
• UPC: 873804001609

Mechanical Specifications

Component	Material / Color	Plating	Dimensions
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray	—	—
Molded Body Mat	Thermoplastic PUR / Blue-Gray	—	—
Contact Mat Plating	—	Brass / Gold	—
Coupling Nut Plating	—	Brass / Nickel	—
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Rating
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Details

Feature	Specification
Outer Jacket Material / Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4x22 AWG, 22 AWG Drain Wire
Shielding (3 Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Specifications

Parameter	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Certifications & Approvals

• UL Certifications:
  • Cable: PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA Certifications:
  • Cable: CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Why Choose Our NMEA 2000 Cable?

Our NMEA 2000 cable is built to withstand the harsh marine environment, ensuring reliable performance whether you're navigating open waters or anchored in a marina. The robust construction, combined with superior shielding and high-quality materials, guarantees minimal interference and optimal signal integrity for all your marine electronics.

Installation & Compatibility

Designed for easy installation, this cable seamlessly integrates with a wide range of NMEA 2000-compatible devices, including chartplotters, GPS systems, radar, and more. Its durable connectors and weather-resistant design make it ideal for both permanent installations and temporary setups on your vessel.

Customer Support

We stand behind the quality of our products with comprehensive customer support. If you have any questions or need assistance with installation, our knowledgeable team is here to help ensure you get the most out of your marine electronics setup.
