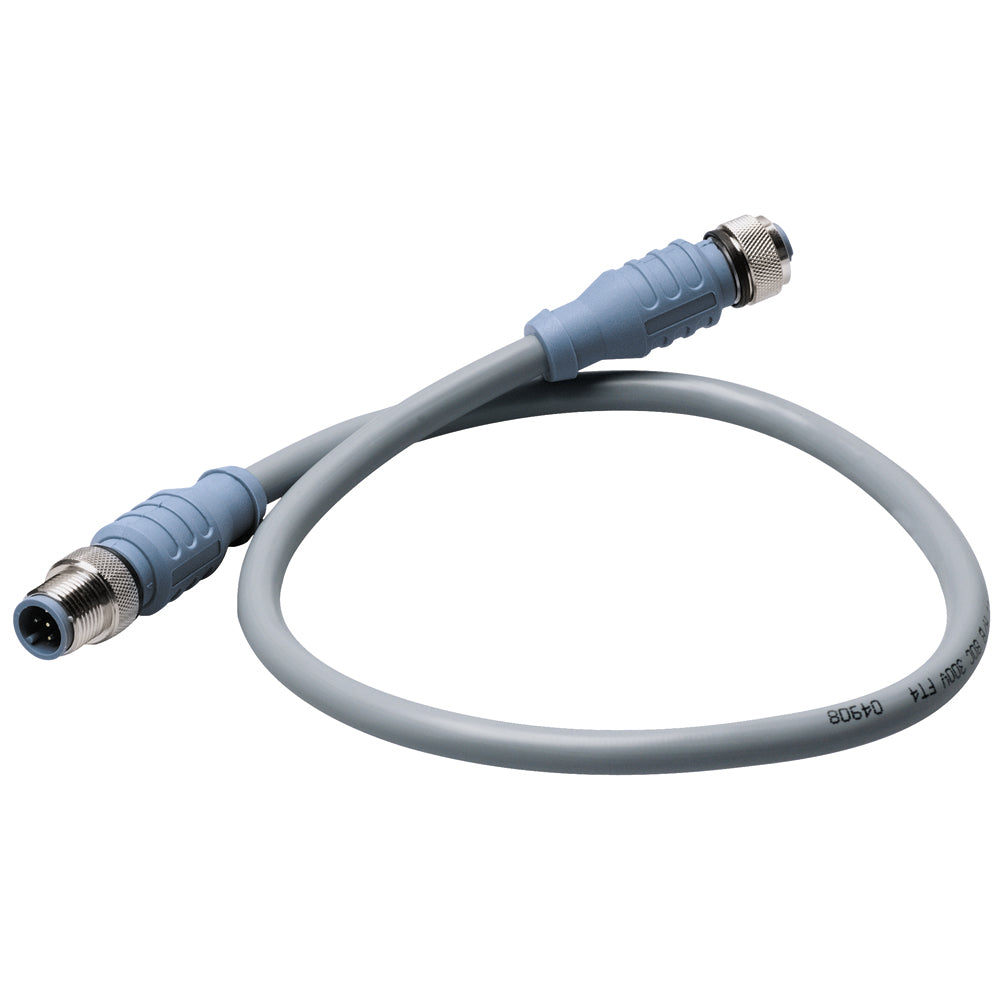

Maretron Micro Double-Ended Cordset - 1 Meter

Enhance your marine electrical system with our Micro Double-Ended Cordset - 1M, specifically designed for reliable performance in demanding boating environments. Whether you're upgrading your vessel's connectivity or ensuring seamless integration of your marine electronics, this cordset provides the durability and precision you need on the water.

Mechanical Specifications

Component	Material/Color
Contact Carrier Mat	Thermoplastic PUR / Blue-Gray
Molded Body Mat	Thermoplastic PUR / Blue-Gray
Contact Mat/Plating	Brass / Gold
Coupling Nut Mat/Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Details

• Outer Jacket Material/Color: PVC / Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4 x 22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels):
  • FOIL (Overall)
  • FOIL (Power Pair)
  • FOIL (Data Pair)

Environmental Ratings

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Certifications and Approvals

• UL:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• CSA:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved

Product Specifications

• Cable Length: 1 Meter (3 Feet)
• Data Interface: NMEA 2000
• Box Dimensions: 1" H x 4" W x 5" L
• Weight: 0.2 lbs
• UPC: 873804001517

Why Choose Our Micro Double-Ended Cordset?

Designed to meet the rigorous demands of marine applications, our cordset ensures secure and efficient connections between your boat's electronic systems. The robust construction with high-quality materials like Thermoplastic PUR and brass plating guarantees longevity and resistance to harsh marine environments, including exposure to saltwater and extreme temperatures. Compatible with NMEA 2000 standards, it provides seamless integration with a wide range of marine electronics, enhancing your vessel’s navigational and operational capabilities.

Installation Tips

For optimal performance, ensure that the connector is securely fastened and that all connections are free from moisture and corrosion. Regularly inspect the cordset for any signs of wear or damage, and replace as necessary to maintain the integrity of your boat’s electrical system.
