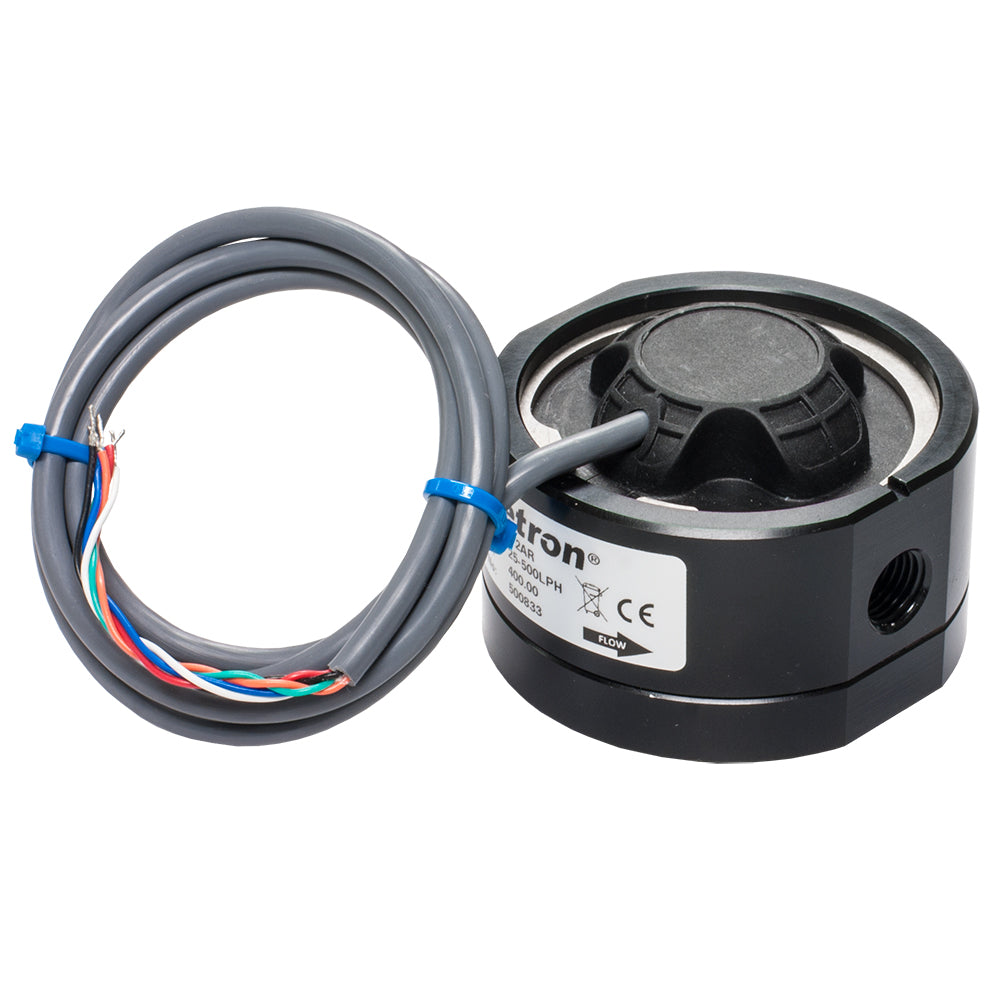

Maretron Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH

Optimize your marine engine’s performance with our high-precision Fuel Flow Sensor. Designed specifically for boating applications, this sensor ensures accurate fuel measurement, enhancing efficiency and reliability on every voyage.

Key Features

• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Storage Temperature: -65°C to 170°C (-85°F to 338°F)
• Port Size: 1/4" NPT Female
• Cable Length: 1M (3.28 ft)
• Maximum Viscosity: 1000 cPs
• Pressure Rating: 68.95 Bar (1000 PSI)
• Strainer Size: 200 Mesh (Ensure it’s not already installed after the fuel filter)

Technical Specifications

Parameter	Specification
Flow Range	25-500 LPH / 6.6-132 GPH
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-65°C to 170°C (-85°F to 338°F)
Port Size	1/4" NPT Female
Cable Length	1 Meter (3.28 feet)
Maximum Viscosity	1000 cPs
Pressure	68.95 Bar (1000 PSI)
Strainer Size	200 Mesh

Installation Guide

Installing the Fuel Flow Sensor on your boat is straightforward:

1. Ensure the engine is turned off and cooled down.
2. Locate the fuel line where you want to install the sensor.
3. Attach the 1/4" NPT Female port to the fuel line, ensuring a secure fit.
4. Connect the sensor’s cable, allowing the 1-meter length to reach your monitoring system.
5. If a strainer isn’t already installed after the fuel filter, integrate the 200 Mesh strainer to protect the sensor.
6. Double-check all connections for leaks and secure fittings.
7. Start your engine and verify the sensor is accurately measuring fuel flow.

Why Choose Our Fuel Flow Sensor?

• Reliability: Built to withstand extreme marine environments with a wide operating and storage temperature range.
• Precision: Accurate flow measurements ensure optimal engine performance and fuel efficiency.
• Durability: High-quality materials, including corrosion-resistant components, make it ideal for long-term use on boats.
• Easy Installation: User-friendly design allows for quick and hassle-free setup.
• Versatility: Suitable for a wide range of marine engines and fuel types.
