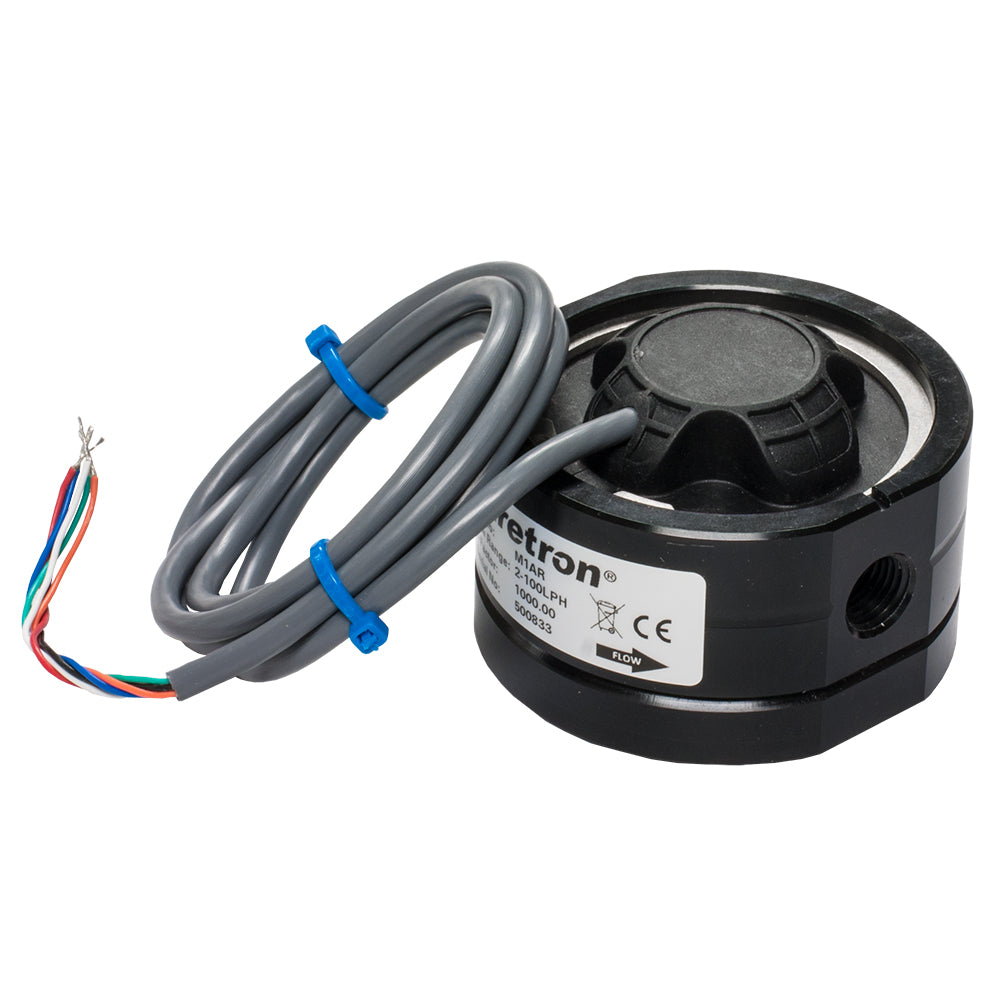

Maretron Fuel Flow Sensor - 2-100 LPH

The Fuel Flow Sensor - 2-100 LPH is an essential component for marine and boating engines, ensuring precise fuel measurement and optimal engine performance. Designed with durability and accuracy in mind, this sensor is perfect for both recreational and professional marine applications, providing reliable data to keep your vessel running smoothly.

Product Features

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
• All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads
• Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)
• Cable Length: 1m (3.28')
• Strainer Size: 200 Mesh (If not already installed after fuel filter)
• Port Size: 1/4" NPT Female
• Maximum Viscosity: 1000 cPs
• Maximum Operating Pressure: 68.95 Bar (1000 PSI)
• Weight: 775g (1.71 lb)
• Construction: Aluminum Housing Material
• Rotors: PPS (Ryton)
• Shafts: 316/304 Stainless Steel
• Magnets: Samarium Cobalt
• O-Ring: FKM (Viton™)

Specifications

Parameter	Specification
Flow Range	2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
K Factor	1000 pulses/L (3785.4 pulses/Gal)
Cable Length	1m (3.28')
Strainer Size	200 Mesh (If not already installed after fuel filter)
Port Size	1/4" NPT Female
Maximum Viscosity	1000 cPs
Maximum Operating Pressure	68.95 Bar (1000 PSI)
Weight	775g (1.71 lb)
Construction	Aluminum Housing Material
Rotors	PPS (Ryton)
Shafts	316/304 Stainless Steel
Magnets	Samarium Cobalt
O-Ring	FKM (Viton™)
