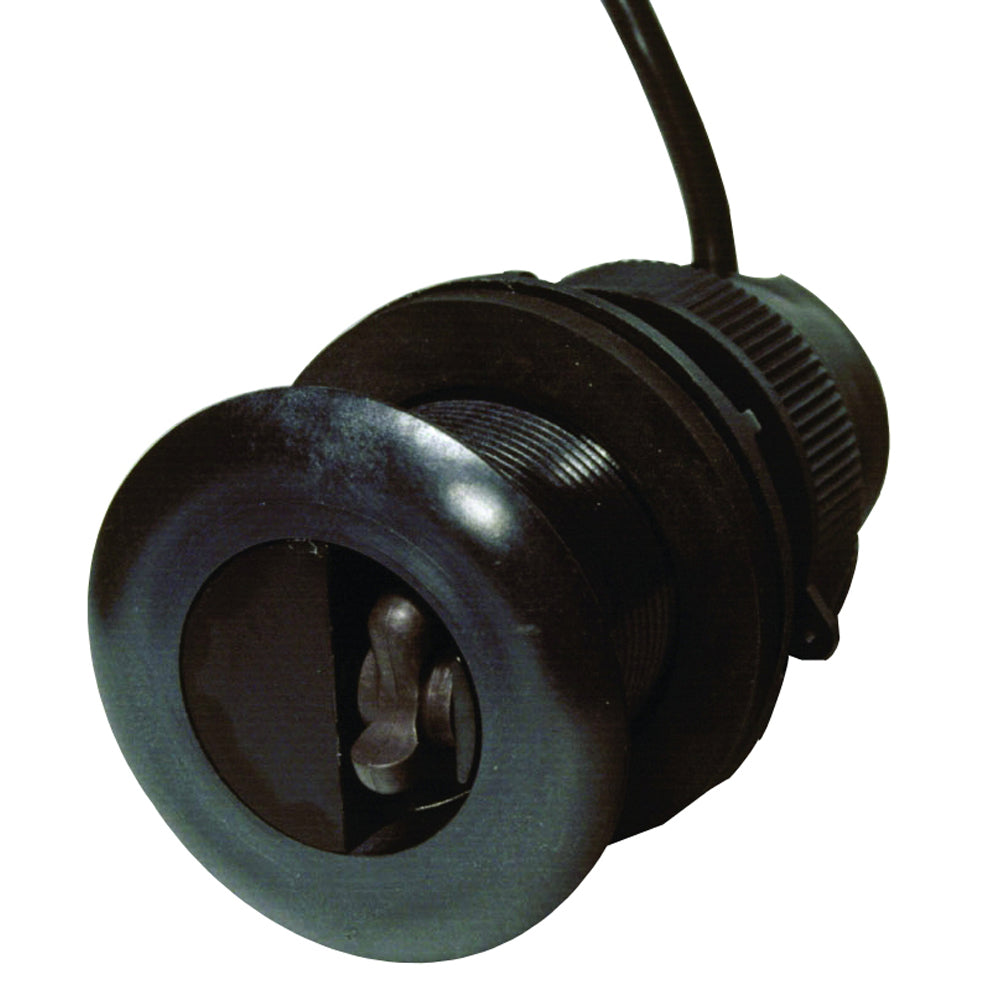

Maretron DST110 Depth/Speed/Temperature Triducer

Enhance your marine navigation with the Maretron DST110 Smart® Retractable Depth/Speed/Temperature Transducer. Engineered for precision and reliability, the DST110 delivers accurate depth measurements, speed readings, and water temperature data without the need for programming or calibration, even at high speeds exceeding 40 knots.

Advanced Smart® Sensor Technology

The DST110 leverages patented Smart® Sensor Technology to ensure seamless integration with your vessel's existing navigation systems. Its retractable and removable sensor simplifies installation and maintenance, while NMEA 2000® network connectivity allows for effortless communication with other marine electronics.

Key Features

• Precision Depth Measurement: Accurately measures water depth from 0.4m to 100m with a wide beam width, suitable for various hull materials and deadrise angles.
• Accurate Speed and Temperature: Provides speed readings from 1 to 50 knots and water temperature measurements ranging from -10°C to +40°C with ±1.0°C accuracy.
• Customizable Calibrations: Tailor speed and temperature indicators to match your specific installation requirements.
• Robust Construction: Available in plastic, bronze, or stainless steel housings to complement any vessel's hull material.
• Protective Features: Includes a blank plug to safeguard the sensor unit during extended docking or trailering, preventing damage and reducing fouling growth.
• High-Frequency Operation: Operates at 235kHz, making it ideal for use with fishfinders and as a reliable navigation tool for both sport and commercial fishing vessels.
• Compliance and Quality: CE compliant (IEC 60945) and manufactured under ISO9001/ISO/TS 22000 standards, ensuring top-tier quality and reliability.

Technical Specifications

Specification	Details
Temperature Measurement Range	-10°C to +40°C
Temperature Accuracy	±1.0°C
Speed Measurement Range	1 to 50 knots
Depth Measurement Range	0.4m to 100m
Frequency	235kHz
Cable Length	6 feet
Mounting Style	Thru-Hull
Sensor Orientation	Down
Number of Pins	5
Box Dimensions	5"H x 7"W x 10"L
Weight	1.7 lbs
UPC	873804003160

Easy Installation and Maintenance

The DST110's thru-hull mounting style ensures a secure and efficient installation process, compatible with any hull material. The retractable and removable sensor design allows for straightforward maintenance and storage. When your vessel is docked for extended periods or being trailered, simply replace the sensor unit with the included blank plug to protect it from potential damage and minimize fouling growth.

Reliability You Can Trust

Maretron is committed to delivering high-quality marine electronics. The DST110 is CE compliant (IEC 60945) and manufactured to the highest standards under ISO9001 and ISO/TS 22000 procedures. Its compact, waterproof housing is built to withstand harsh marine environments, ensuring years of dependable performance.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Download the Owner's Manual (PDF)
