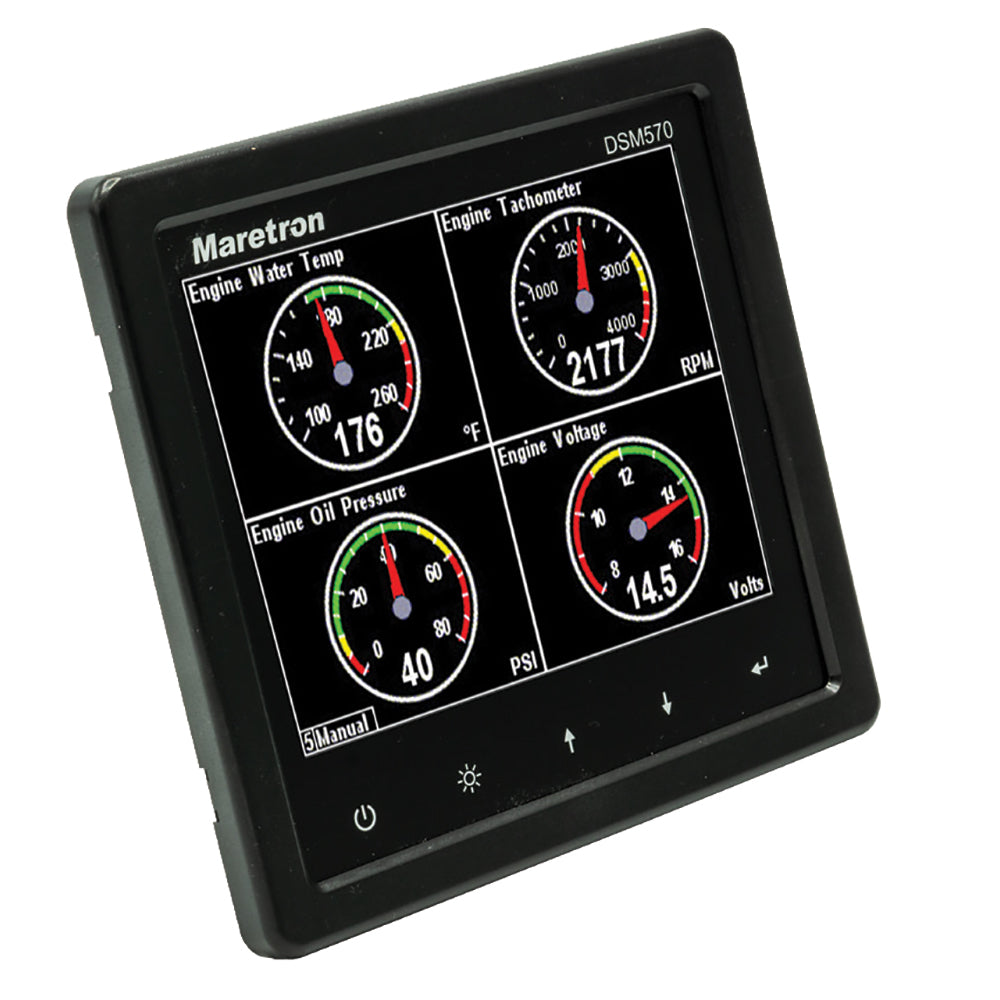

Maretron DSM570 5.7" High Resolution Color Display w/Black Enclosure

The DSM570 from Maretron is a cutting-edge 5.7" high-resolution color display designed specifically for marine applications. Encased in a durable black enclosure, this sunlight-readable screen provides seamless integration with your vessel’s NMEA 2000® network, offering customizable display configurations for effortless monitoring of vital navigation and instrumentation data.

Key Features

• High-Resolution Display: Enjoy crystal-clear, sunlight-readable color graphics that make data interpretation easy, even in bright conditions.
• Customizable Configurations: Choose from numeric, gauge, or graph formats across single or multiple displays, allowing you to cycle through your most important data.
• Compact Design: Multiple display options help conserve mounting space and reduce overall system costs without compromising functionality.
• User-Friendly Interface: Navigate settings effortlessly using the intuitive five-key illuminated keypad.
• Comprehensive Connectivity: Directly connects to any NMEA 2000® network, ensuring seamless access to all onboard data.
• Programmable Alarms: Configure a wide range of audio and visual alerts to monitor critical system parameters.
• Durable Construction: Engineered to IEC 60945 Maritime standards, the waterproof housing ensures reliable performance in harsh marine environments.

Advanced Alert Capabilities

The DSM570 offers a robust alert system that can be tailored to monitor nearly any aspect of your vessel's performance. Configure both audio and visual alerts to stay informed about important events and conditions.

• High Alert
• Low Alert
• Data Unavailable Alert
• On Alert
• Off Alert
• Circuit Breaker Tripped Alert
• Course Alert
• GPS Quality Alert
• Outside Radius Alert
• Inside Radius Alert
• Direction Alert
• Timer Alert

Comprehensive Data Display

The DSM570 is capable of displaying a wide array of data points essential for effective marine navigation and vessel management. Below is a detailed overview of the types of data it can monitor:

Category	Data Points
AC Power	Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
Anchor Watch	Monitor anchor status and position
Battery/DC	Voltage, Current, Battery Temperature, State of Charge, Time Remaining, Ripple Voltage, Power
Depth	Water Depth, Depth below Transducer
Engine Monitor	Boost Pressure, Hours, Coolant Pressure, Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Economy, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators
Environment	Barometer, Heat Index, Humidity, Temperatures, Wind Chill
GPS	COG, Latitude/Longitude, SOG, Satellites, Time, Accuracy
Navigation	BOD, BTW, COG, XTE, DTW, ETA, Latitude/Longitude, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name
Rudder	Rudder position and performance
Speed	Through Water, Over Ground, Total Log, Trip Log
Wind	Apparent Direction and Speed, True Direction and Speed, Ground Direction and Speed

Technical Specifications

• Instrument Function: Multifunction Display
• Dimensions: 5" H x 7" W x 10" L
• Weight: 2.15 lbs
• UPC: 873804004136
• Compliance: Meets IEC 60945 Maritime Navigation and Radiocommunication Equipment standards
• Housing: Compact and waterproof for enhanced durability

Why Choose the DSM570?

The DSM570 stands out in the marine electronics market due to its versatile display options, robust alert system, and reliable performance in demanding marine environments. Whether you're a seasoned mariner or a boating enthusiast, the DSM570 offers the tools you need to monitor and manage your vessel’s performance with ease and precision.

Download Brochure (PDF)
