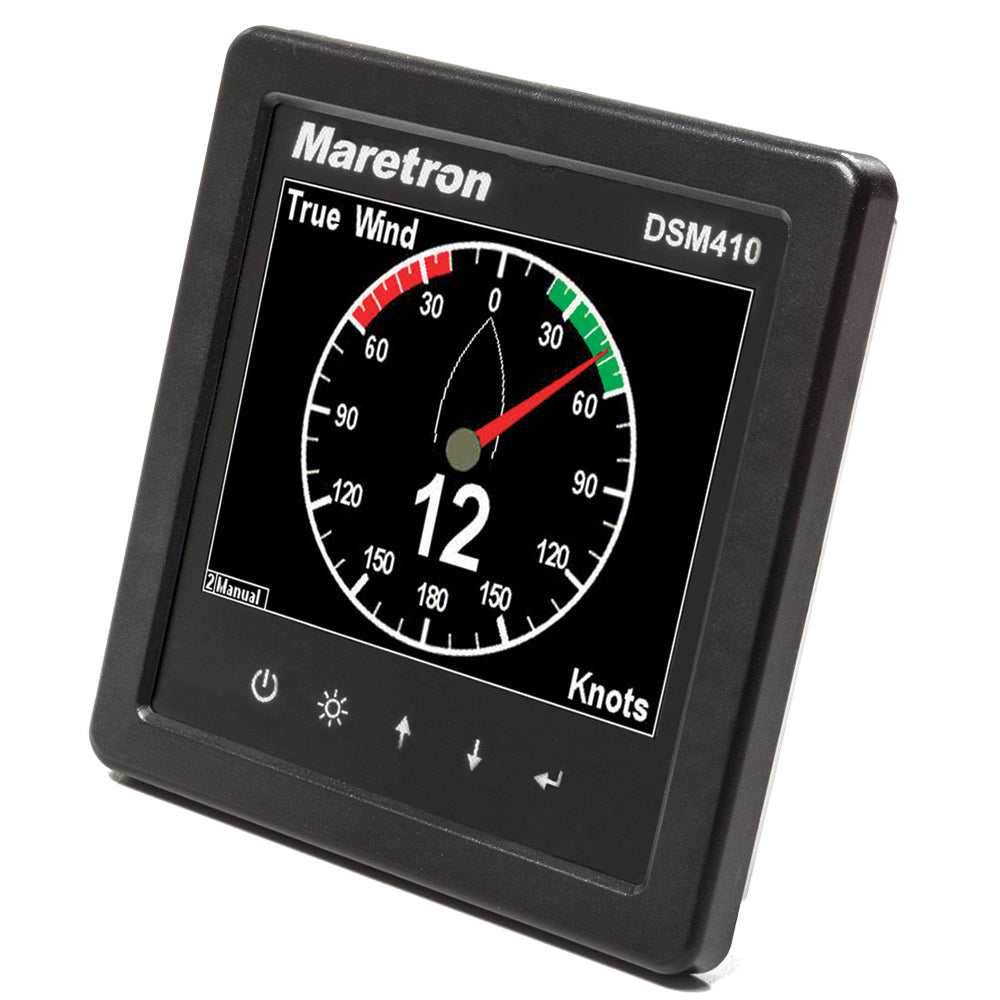

Maretron 4.1" High Bright Color Display - Black

The Maretron DSM410 is a state-of-the-art 4.1” high-resolution color display designed specifically for marine applications. Engineered to provide comprehensive monitoring and navigation data, the DSM410 enhances the functionality and efficiency of your vessel’s NMEA 2000® network with its intuitive interface and customizable features.

Stunning High Brightness Display

The DSM410 boasts a 4.1” sunlight-viewable color screen, ensuring clear and vibrant display of critical marine data even in bright outdoor conditions. Its high-resolution interface allows for detailed visualization of various instrumentation, navigation, and vessel monitoring information.

User-Friendly Interface

Designed with the mariner in mind, the DSM410 features a five-key illuminated keypad that simplifies navigation through menu options and settings. Custom screen configurations enable users to tailor the display to their specific needs, making data access quick and effortless.

Versatile Display Options

Unlike traditional single-display units, the DSM410 offers multiple display formats to suit your preferences:

• Numeric
• Gauge
• Bar
• Graph

These formats can be used in single or multiple displays, with cycling options available to monitor a wide range of favorite data points. This flexibility not only conserves mounting space but also reduces overall system costs.

Comprehensive Alert and Alarm System

The DSM410 is equipped with a robust alert and alarm package that enhances vessel safety and operational awareness. Users can configure both audio and visual alerts for virtually any data point being monitored. Available alert types include:

• High Alert
• Low Alert
• Data Unavailable Alert
• On/Off Alert
• Circuit Breaker Tripped Alert
• Course Alert
• GPS Quality Alert
• Radius Alerts (Inside and Outside)
• Direction Alert
• Timer Alert

Additionally, the DSM410 can share alert information with other DSM410 units, DSM150, DSM250, and N2KView® installations on the network, allowing alerts to be acknowledged from any connected device.

Electrical Switching Capability

Beyond monitoring, the DSM410 includes electrical switching capabilities, allowing for enhanced control over your vessel’s electrical systems directly from the display unit.

Seamless NMEA 2000® Network Integration

The DSM410 effortlessly integrates with any NMEA 2000® network, displaying a wide array of vessel data except AIS information. This seamless connectivity ensures that all relevant information captured throughout the vessel is readily available on the DSM410 display.

Extensive Data Display Options

The DSM410 is capable of displaying a vast range of data, ensuring that mariners have access to all necessary information at a glance. Examples of data that can be displayed include:

Category	Data Points
AC Power	Average Frequency, Voltage, Current, Phase-Neutral Frequency, Voltage, Current, Phase-Phase Frequency, Voltage, Current
Battery/DC	Voltage, Current, Battery Temperature, State of Charge, Time Remaining, Ripple Voltage, Power
Engine Monitor	Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Economy, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators
GPS	Course Over Ground (COG), Speed Over Ground (SOG), Satellites, Time, Accuracy
Navigation	Bearing to Waypoint (BTW), Cross Track Error (XTE), Estimated Time of Arrival (ETA), Latitude/Longitude, Speed Through Water (STW), Set/Drift, True Wind Speed (TWS), Waypoint Number and Name

Durable and Reliable Construction

Maretron’s DSM410 is built to withstand the harsh marine environment. Its compact, waterproof housing ensures years of reliable performance, meeting the highest standards of maritime navigation and radiocommunication equipment (IEC 60945).

Specifications

• Instrument Function: Multifunction
• Box Dimensions: 4"H x 6"W x 7"L | Weight: 1 lb
• UPC: 873804003757

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
