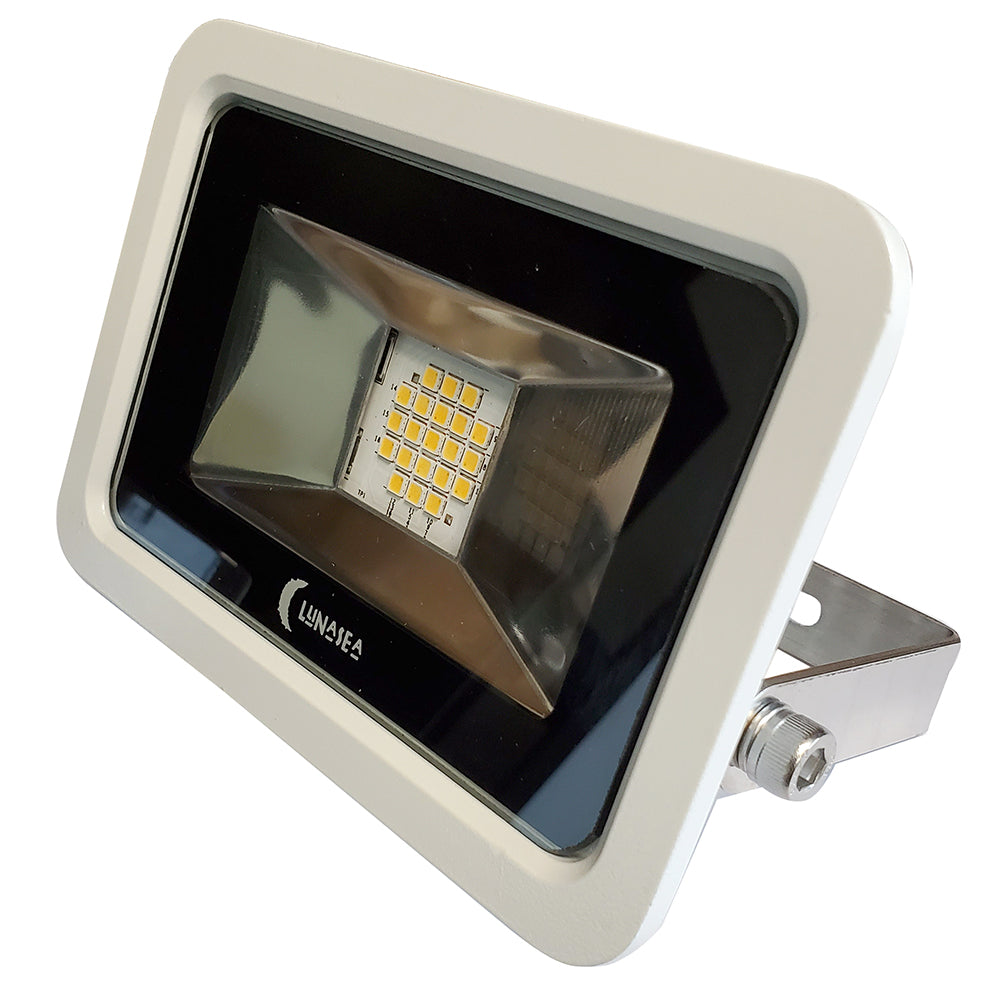

Lunasea 10W Slimline LED Floodlight, 120VAC Only, Cool White, 1200 Lumens, 3 Cord - White Housing

Lunasea Slimline LED Floodlight is the perfect lighting solution for your marine and boating needs. Combining exceptional brightness with a sleek, ultra-thin design, this floodlight ensures your vessel is well-illuminated while maintaining a streamlined appearance.

Key Features

• Energy Efficient: Consumes only 12W of power while providing a luminous output of 1200 lumens.
• Superior Light Quality: Emits a cool white light at 4000K with a color rendering index of >80CRI, ensuring clear and vibrant illumination.
• Wide Beam Angle: A 110-degree beam angle offers extensive area lighting, perfect for decks and navigation spaces.
• Durable Construction: Features a white housing with tempered glass, a breather valve, and a completely sealed design without the use of gaskets, ensuring longevity in harsh marine environments.
• Easy Installation: Comes with a stainless steel bracket and all necessary hardware, making mounting straightforward.
• Flexible Power Options: Operates on 120VAC with an input range of 108-132VAC at 60Hz, suitable for most marine electrical systems.
• Compact Design: Measures 5.1” W x 3.6” H x 1.1” D, fitting seamlessly into limited spaces without compromising on light output.

Technical Specifications

Parameter	Details
Power Consumption	12W
Voltage Range	108-132VAC (120VAC standard)
Light Output	1200 Lumens
Color Temperature	4000K (Cool White)
Color Rendering Index (CRI)	>80CRI
Beam Angle	110 Degrees
Dimensions	5.1” (130mm) W x 3.6” (91mm) H x 1.1” (28mm) D
Weight	1.1 lbs (0.5 kg)
UPC	850001461047
Box Dimensions	2"H x 7"W x 10"L

Installation Instructions

The Lunasea Slimline LED Floodlight is designed for easy installation on various marine vessels. Follow these steps to securely mount your floodlight:

1. Ensure the mounting surface is clean and free from any debris.
2. Position the stainless steel bracket in the desired location.
3. Secure the bracket using the provided hardware, ensuring all screws are tightened properly.
4. Attach the floodlight housing to the bracket.
5. Connect the 3' cord to your vessel's 120VAC power source.
6. Verify all connections are secure and test the floodlight to ensure proper operation.

Durability and Weather Resistance

Built to withstand the challenging marine environment, the Lunasea LED Floodlight features a robust white housing and tempered glass lens. The breather valve ensures proper ventilation while maintaining a completely sealed unit, eliminating the need for gaskets and preventing moisture ingress. This design ensures reliable performance even in harsh weather conditions.

Additional Resources

For more detailed information, refer to our comprehensive brochure:

Download Brochure (PDF)
