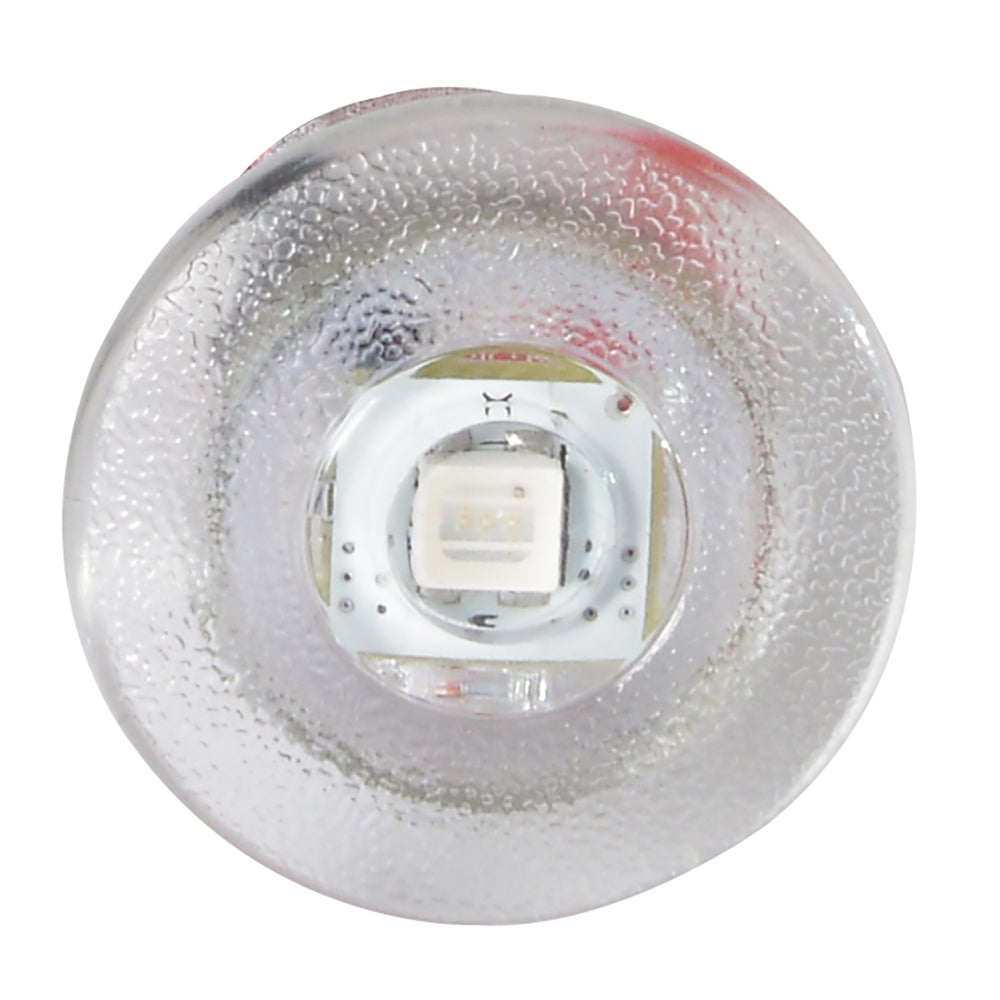

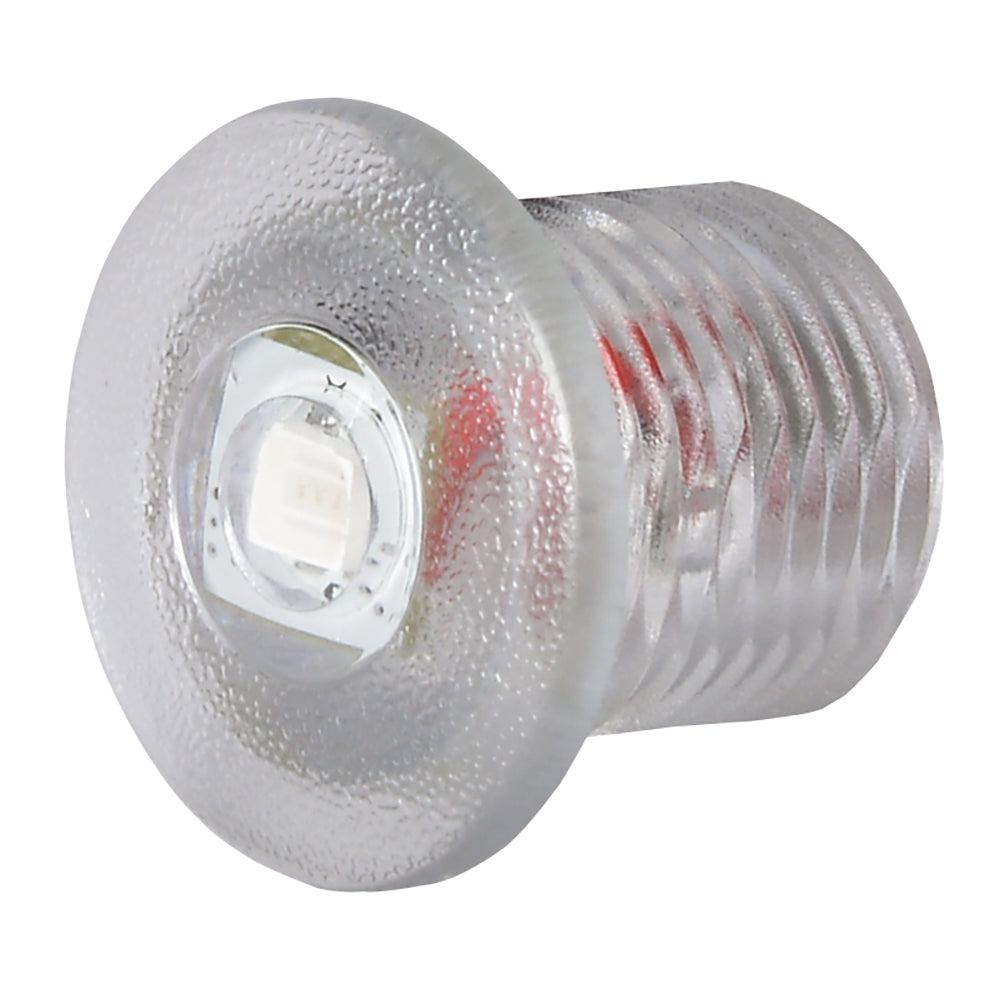

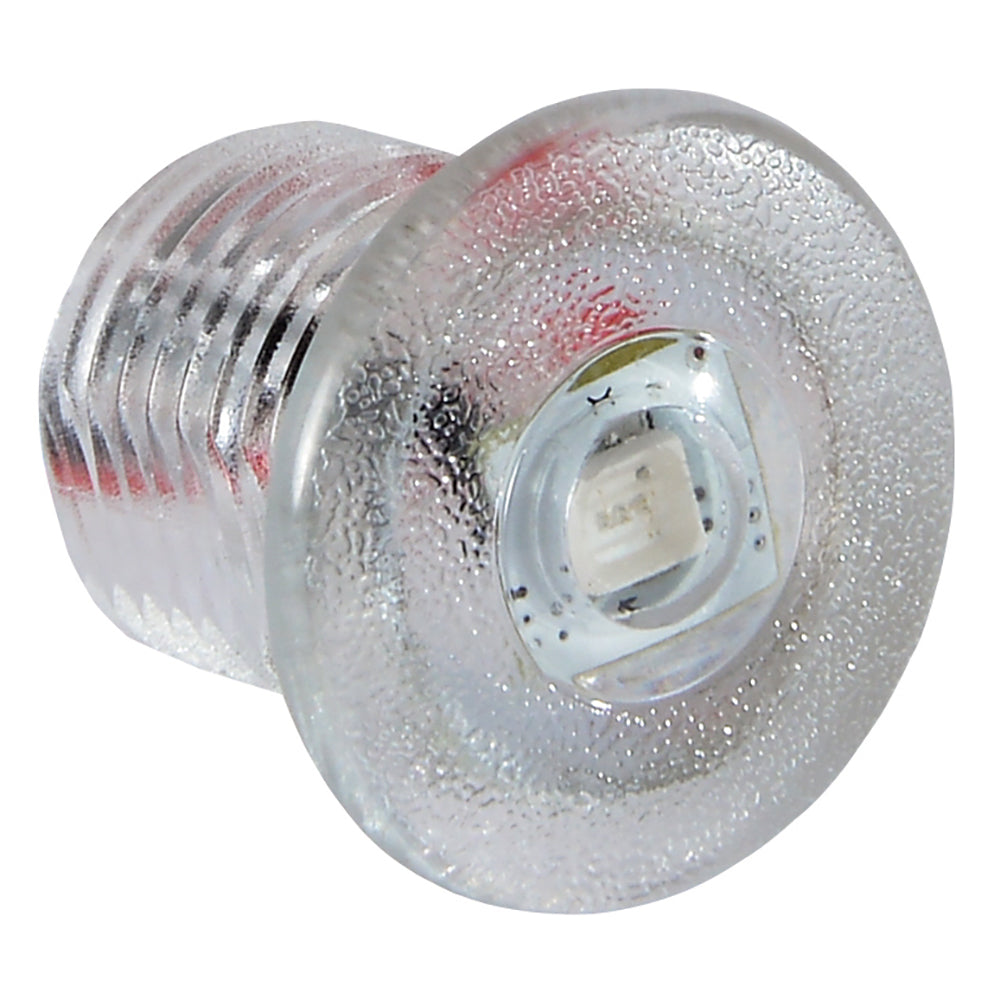

Lumitec Newt - Livewell & Courtesy Light - Red Dimming

Enhance the lighting on your boat with the Newt Livewell & Courtesy Light. Engineered for marine environments, this compact yet powerful LED light delivers exceptional brightness and reliability, perfect for illuminating livewells, storage areas, and pathway lighting. Its versatile installation options and robust IP67 sealing ensure it withstands harsh marine conditions, making it an essential addition to any vessel.

Key Features

• Versatile Lighting Options: Choose from white, red, or blue LED colors to suit your specific needs, whether for livewell illumination or courtesy lighting.
• Exceptional Durability: Completely sealed with an IP67 rating and a included silicone gasket, ensuring resistance against water, dust, and vibrations prevalent in marine settings.
• Compact Design: Its small size allows for flexible installation under cabinets, in storage lockers, lighting toe kicks, and even overhead, without compromising on brightness.
• Easy Installation: Designed for hassle-free setup with standard marine wiring, making it a convenient upgrade for your boat's lighting system.
• Energy Efficient: Low power consumption with rated watts of 2, suitable for prolonged use without draining your boat’s battery.

Technical Specifications

Specification	Details
Voltage	10 - 16V DC
12V DC Amps	45mA
24V DC Amps	N/A
Correlated Color Temperature (CCT)	5000K
Color Rendering Index (CRI)	70+
Rated Watts	2W
Lumens (White)	19 lm
Operating Temperature	-31°F to +131°F (-35°C to +55°C)

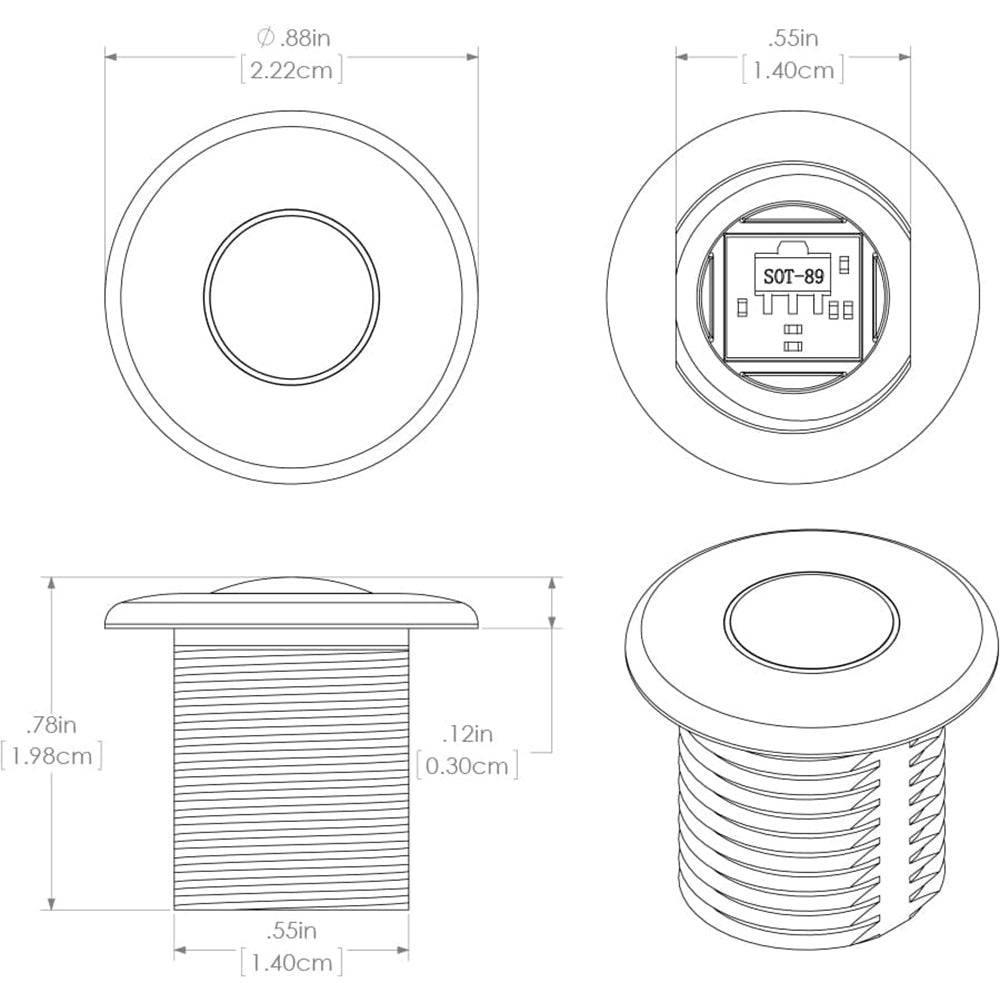

Dimensions	Width: 0.88" (2.22cm) Height: 0.88" (2.22cm) Depth: 0.78" (1.98cm)
Bulb Type	LED
Housing	Clear
LED Color	Red
Dimming	Yes
Box Dimensions	1"H x 3"W x 3"L
Weight	0.1 lbs
UPC	089300103499

Marine-Grade Reliability

The Newt Livewell & Courtesy Light is built to endure the demanding conditions of marine environments. Its IP67 waterproof rating ensures complete protection against water ingress, making it ideal for use in livewells and other areas exposed to moisture. The sturdy construction resists corrosion and the included silicone gasket adds an extra layer of protection, ensuring long-lasting performance on the water.

Easy Installation and Maintenance

Installing the Newt light is straightforward, with its compact size allowing it to fit seamlessly into various locations on your boat. Whether you’re upgrading your livewell lighting or adding ambient illumination to your cabin, the Newt light can be mounted with minimal effort. Its LED technology not only provides bright and consistent lighting but also requires little maintenance, saving you time and effort.

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
